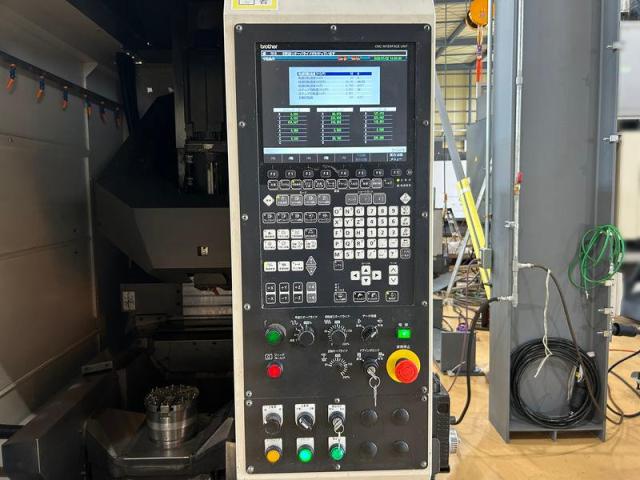

SPECIFICATION | Controller: CNC-C00

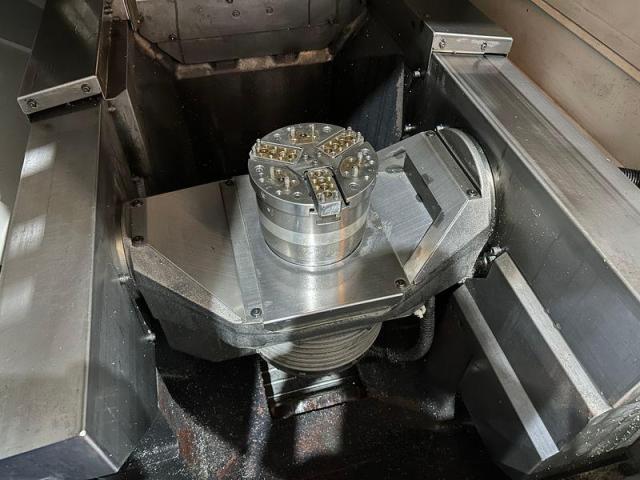

Table size/load: Φ140 mm / 40 kg
Travel (X, Y, Z axis) : 200 × 440 × 305 mm
A : 5° ～ 95° C : 360°
Tool shank taper: MAS BT30
Pull stud type: MAS‑P30T‑2 (30°)
Spindle speed : 10,000 rpm
Max. grinding spindle speed: 2,000 rpm
Spindle taper hole: 7/24 No.30
ATC: 21 stations
Required floor space : 1,280 × 3,641 mm
Machine height : 2,513 mm
Machine weight : 2,370 kg

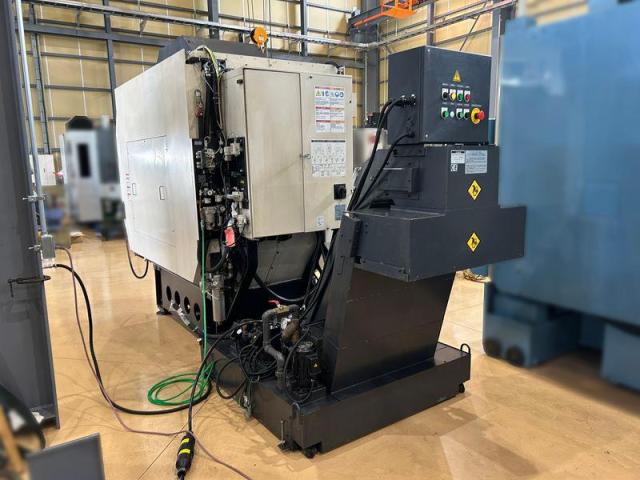

Chip conveyor (rear discharge)
Coolant system |
|---|
