HAUSER

S40-400

EUR 35000

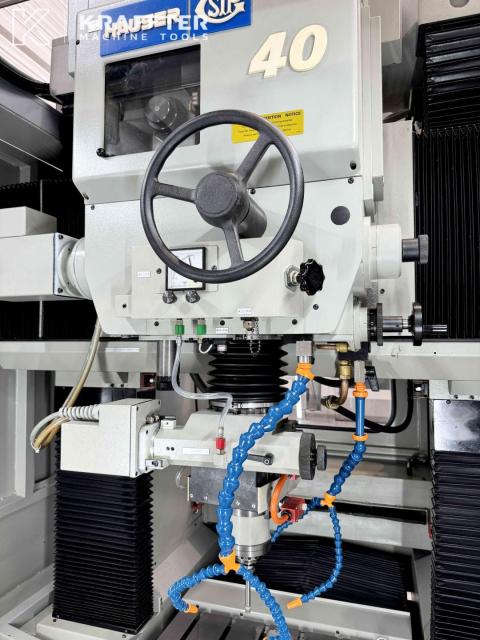

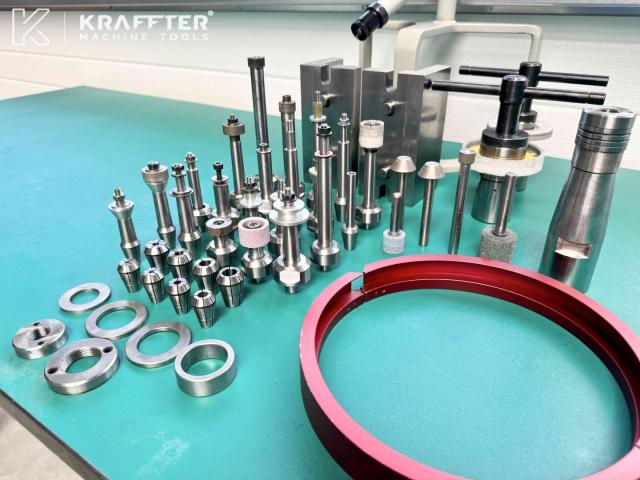

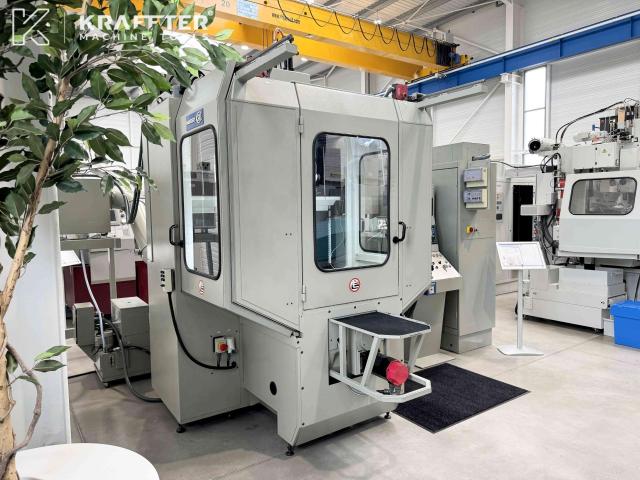

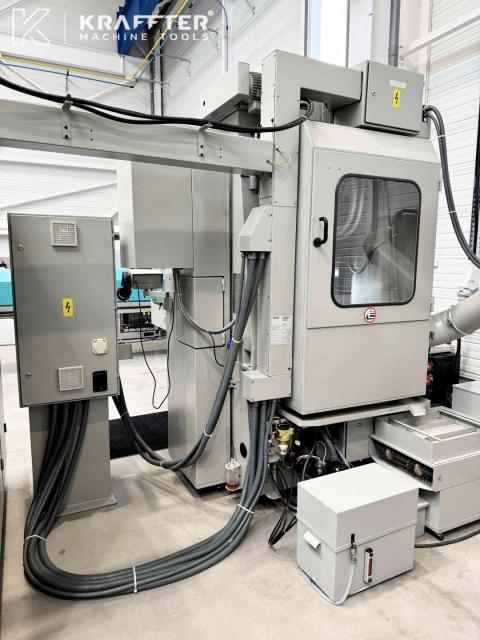

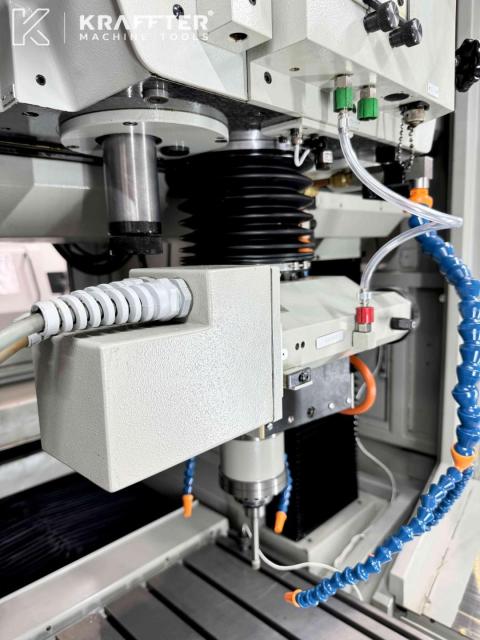

CNC Jig grinder HAUSER S 40 400 TECHNICAL CHARACTERISTICS : Stroke X axis : 650 [mm] Max. Stroke speed X axis : 4000 [mm/min] Working feed X axis : 0 - 1800 [mm/min] Stroke Y axis : 450 [mm] Working feed Y axis : 0 - 1800 [mm/min] Stroke Z axis : 130 [mm] Min. Stroke speed Z axis : 0.5 [mm/min] Max. Stroke speed Z axis : 12000 [mm/min] Stroke frequency Z axis : max. 4 [Hz] Stroke W axis : 500 [mm] Planetary speed C axis : 5 - 250 [rpm] Max. Stroke speed W axis : 800 [mm/min] Stroke U axis (radial feed) : 5.5 [mm] Distance between columns : 750 [mm] Table length : 770 [mm] Table width : 630 [mm] Clearance between grinding motor and table : 585 [mm] Max. load on table : 500 [Kg] Supply voltage : 400 [V] Weight : 4550 [Kg] EQUIPMENT INCLUDED: x1 HI-CUT pack including: -work area protection -exhaust system with electrostatic air filter -fire protection system (to be assessed by a qualified body) -automatic paper tape filtration unit x1 grinding motor 22 S, speed 4500 - 22500 [rpm], for EX23 collets - part number: 181561 x1 45 S grinding motor, speed 9000 - 4500 [rpm], for EX19 collets - reference: 144017 x1 80 S grinding motor, speed 40000 - 80000 [rpm], for F6 collets - reference: 144021 x1 grinding motor for slot grinding (motor + belt are included) - reference: 144022 x3 grinding tools for slot grinder x1 set of belts for slot grinding motor x1 intermediate plate for alignment of grinding motors - reference: 192940 x1 infinitely adjustable cantilever plate with mounted grinding motor for grinding up to Ø360 [mm] - reference: 144023 x1 adjustable plate, for tilting grinding motors and turbines (up to 16°) - reference: 126148 x1 set of 2 HAUSER 90° angle brackets - reference: 155361 x1 centring microscope - reference: 146318 x1 tool contact detection device - reference: 162334 x20 grinding wheel holders x1 cable for grinding motor Various tools Complete documentation Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments such as contouring applications in the aerospace, automotive and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops comprising Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines. In addition to its performance, the HAUSER S40-400 integrates perfectly into workshops equipped with lathes, machining centres or CNC milling machines, offering a complete solution for high-precision grinding and machining of complex parts.

4550 [Kg]

EXW
