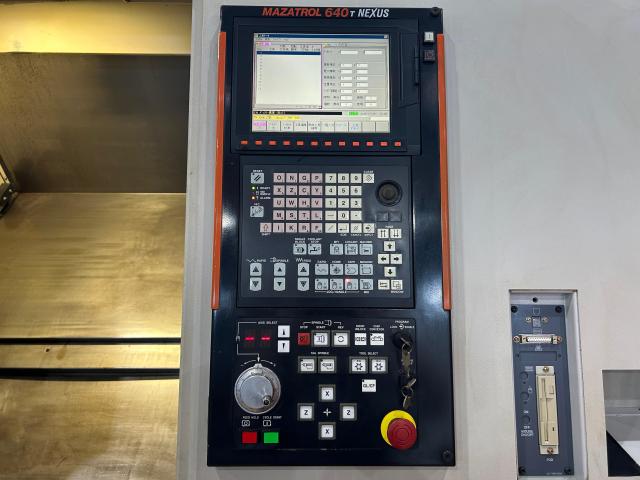

SPECIFICATION | Control unit: MAZATROL 640T NEXUS
Maximum swing: φ680 mm
Standard machining diameter: φ264 mm
Maximum machining diameter: φ420 mm
Center distance: 650 mm (with center support)
Travel X, Y: 225 ｘ 680 mm
Maximum spindle speed: 35～4000 rpm
Spindle through-hole diameter: φ88 mm

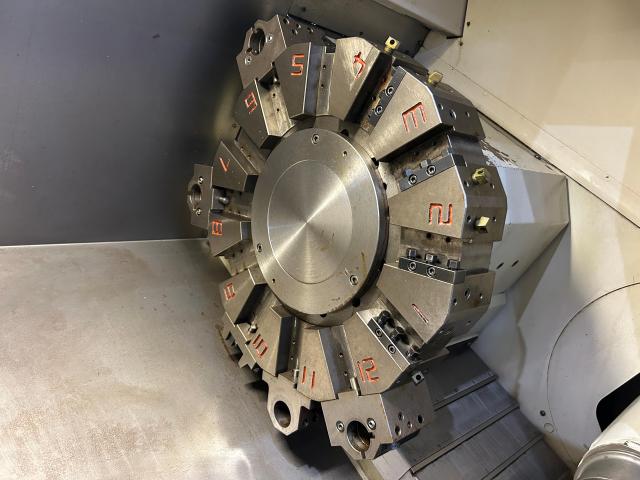

Turret type: 12‑station drum turret

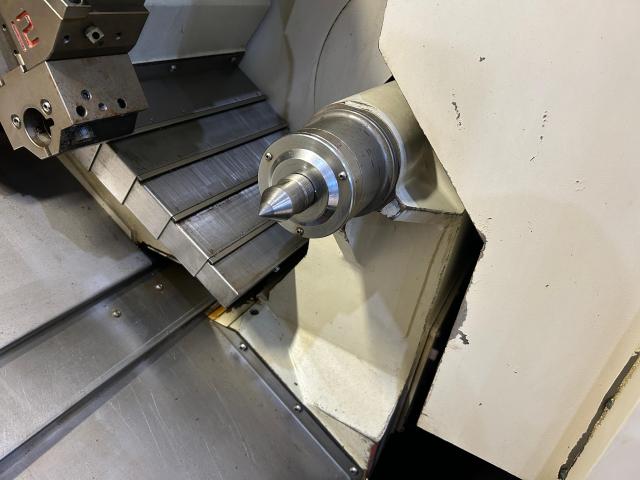

Tailstock travel: 645 mm
Tailstock taper: MT No.5
Required floor space: 2,050 × 2,880 mm
Machine height: 2,000 mm
Machine weight: 6,600 kg

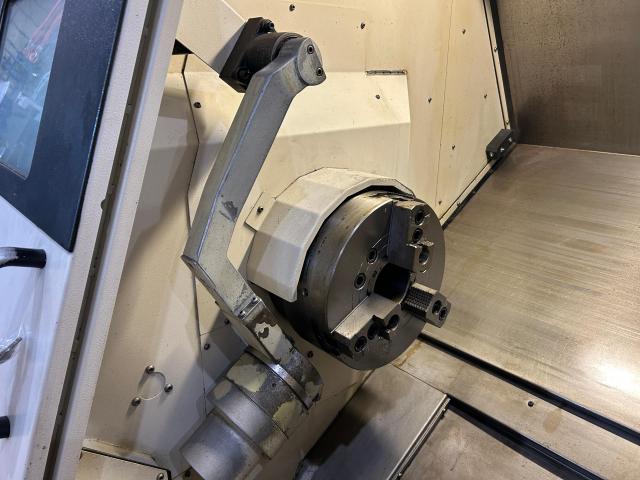

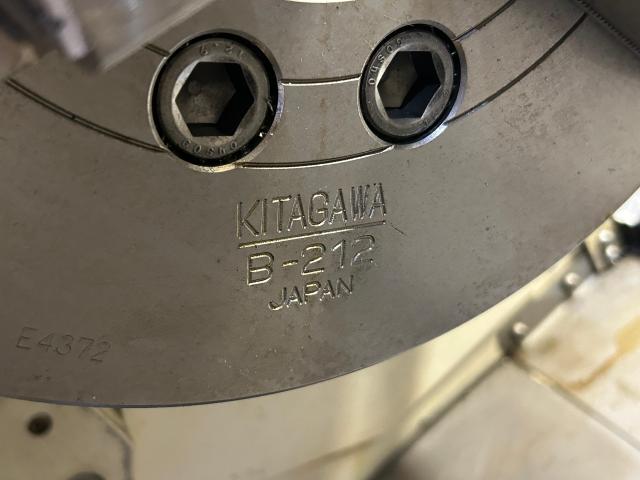

12-inch 3-jaw Hollow Hydraulic Chuck (Kitagawa B-212)
Maximum Spindle Speed: 3,300 rpm (limited by chuck size)
Tool Post |
|---|
