SPECIFICATION | ◆X-axis (left/right) travel range (mm): 1,540
◆Y-axis (front/back) travel range (mm): 760
◆Z-axis (up/down) travel range (mm): 660
◆Table top surface to spindle end face (mm): 200-860
◆Column front to spindle center (mm): 800

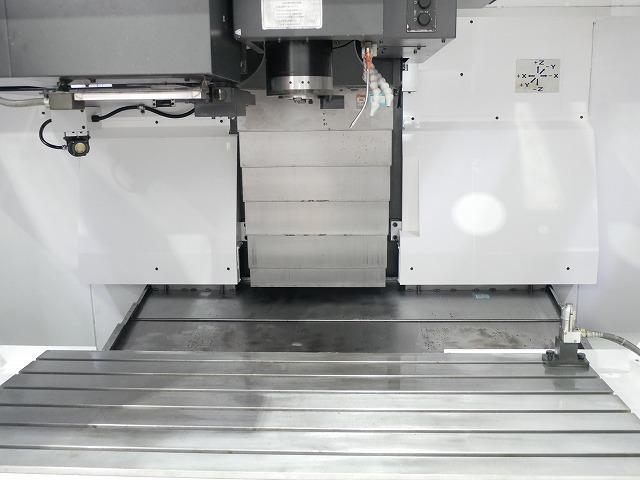

◆Table dimensions (working area) (mm): 1,800 * 720
◆Workpiece allowable weight (kg): 2,000
◆Feed axis motor (kW): X, Y axis AC3.5, Z axis AC4.6 (with brake)
◆Cutting fluid tank capacity (L): 400
◆Machine height (overall cover) (mm): 3,100
◆Required floor space (left/right * front/back) (overall cover) (mm): 4,460 * 4,160 (Domestic safety, CE, GB, KCs specifications) Specifications (excluding the above specifications): 4,460 * 4,110
◆Machine weight (kg): 14,300
◆Power supply power (kVA): 40
◆Power supply voltage (V): AC200/220
◆Power supply frequency (Hz): 50/60

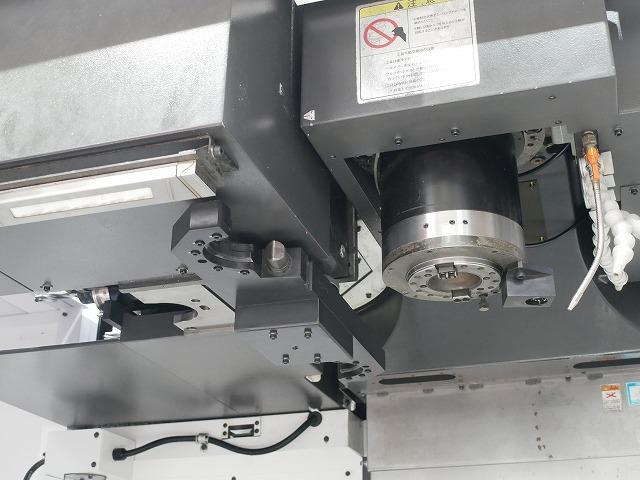

◆Spindle bore taper: No. 50
◆Rotation speed (S-code command) (min-1): 60-12,000
◆Number of speed change range conversions: Stepless (built-in motor)
◆Bearing inner diameter (mm): Φ90
◆Tool selection method: Memory random

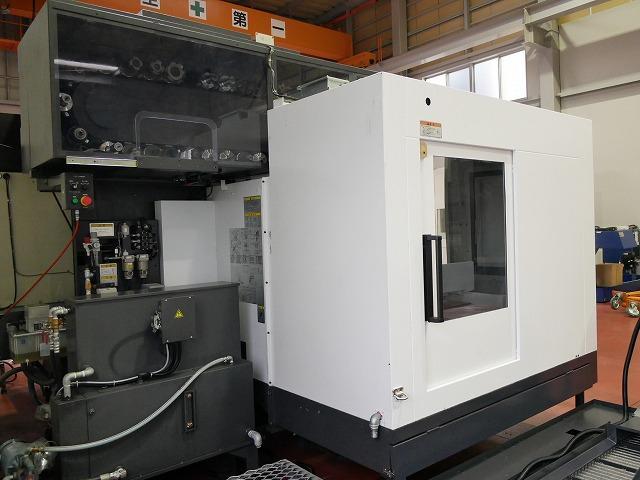

◆Number of tools held in magazine (pieces): 36 (option 54)
◆Special spindle rotation speed (min-1): 50-12,000
◆Through spindle coolant (MPa): 1.5
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
