CNC Lathe
Access: 11
STOCK CODE | 90190 | |||
|---|---|---|---|---|
MACHINE ID | 18951 | |||
MANUFACTURER | NAKAMURA-TOME PRECISION INDUSTRY | |||
MODEL | NTJ 100 | |||
YEAR | 2013 | |||
PRICE | ||||

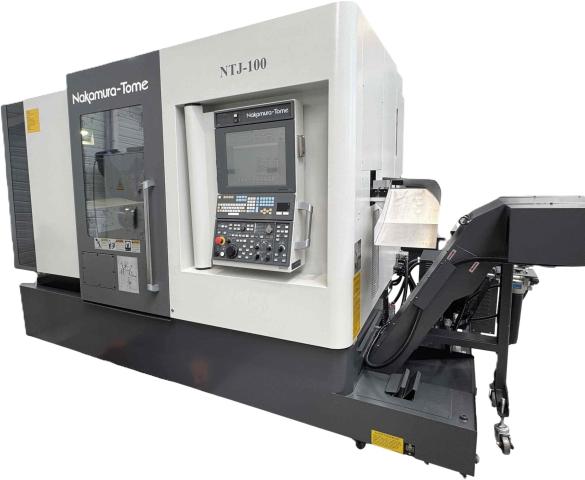

SPECIFICATION | CNC Lathe Nakamura NTJ-100 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2013 CNC control: FANUC 31i-B-NT-IPS Colour touch screen: 19 ["] Distance between spindles: 910 [mm] Max. cutting diameter: 175 [mm] Max. turning lenght: 678 [mm] Stroke Z1 axis: 1040 [mm] Stroke X1 axis: 330 [mm] Stroke Y1 axis: +/- 40 [mm] Stroke Z2 axis: 678 [mm] Stroke X2 axis: 127.5 [mm] Stroke Y2 axis: +/- 32.5 [mm] B axis swivelling stroke: 182 [°] Rapid traverse rate X axis: 20000 [mm/min] Rapid traverse rate Z axis: 40000 [mm/min] Rapid traverse rate Y axis: 6000 [mm/min] Spindle nose: A2-6" Max. bar diameter: 65 [mm] Max. spindle speed: 4500 [rpm] Increment C-axis: 0.001 [°] Spindle power: 11 [kW] Counter spindle nose: A2-5" Max. bar diameter counter spindle: 42 [mm] Max. counter spindle speed: 5000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 7.5 [kW] Number of tool stations - Turret 1: 24 Number of tool stations driven - Turret 1: 12 Max. speed driven tools - Turret 1: 6000 [rpm] Number of tool stations - Turret 2: 24 Number of tool stations driven - Turret 2: 12 Max. speed driven tools - Turret 2: 6000 [rpm] Live tools power: 7.1 [kW] Total power required: 77 [kVA] Supply voltage: 400 [V] Machine dimensions: 3799 x 2100 x 2565 [mm] Weight: 10000 [Kg] More information upon request. | |||
CONDITION | Fully functional | |||
SIZE | 3799 x 2100 x 2565 [mm] | |||
WEIGHT | 10000 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/279/nakamura-ntj-100/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
