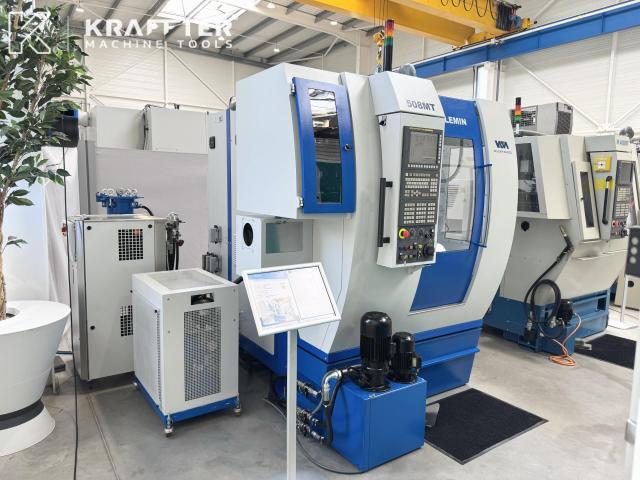

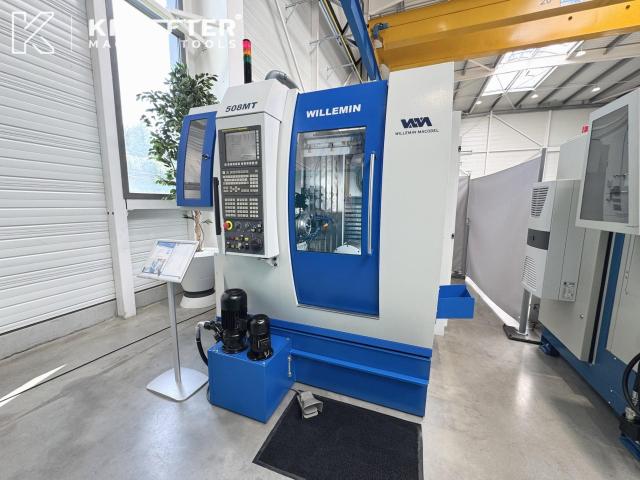

CNC Machining Center WILLEMIN MACODEL 508MT
Access: 3
STOCK CODE | 90188 | |||
|---|---|---|---|---|
MACHINE ID | 18942 | |||
MANUFACTURER | WILLEMIN MACODEL | |||
MODEL | W508 MT | |||
YEAR | 2016 | |||
PRICE | ||||

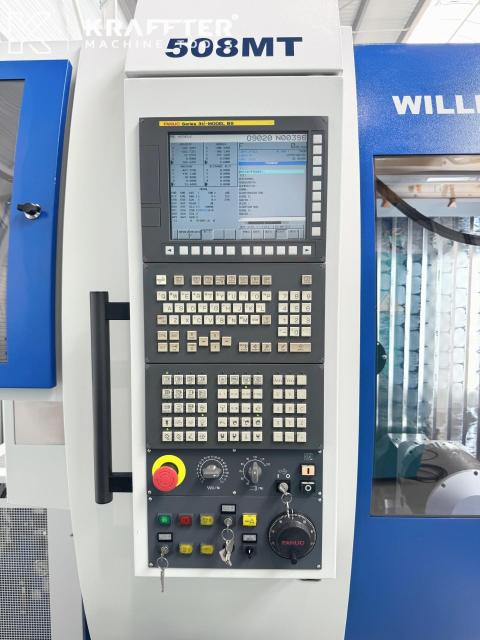

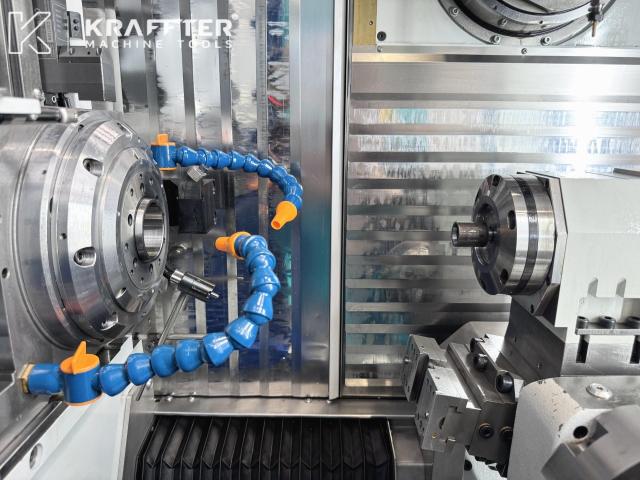

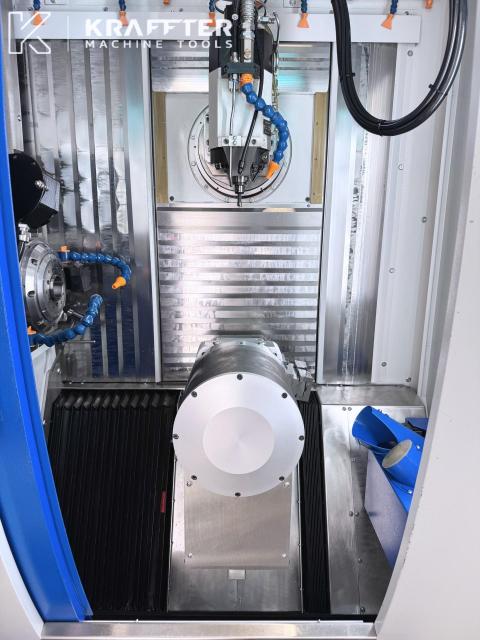

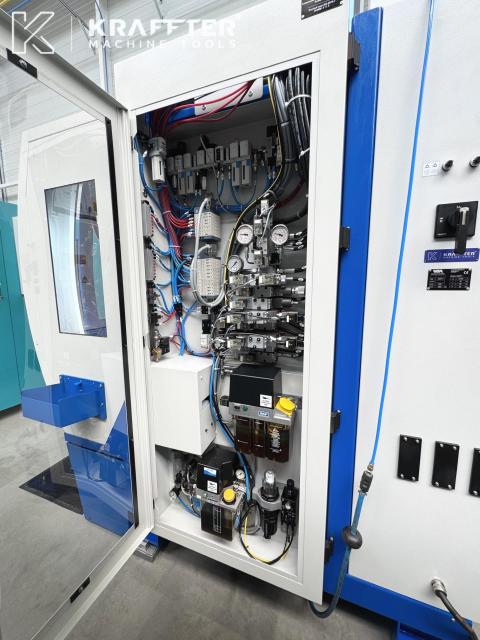

SPECIFICATION | CNC machining centre WILLEMIN 508 MT TECHNICAL CHARACTERISTICS: Year of manufacturing: 2016 CNC control: FANUC series 31i-B5 Number of simultaneous axes: 5 Stroke X axis: 450 [mm] Stroke Y axis: 200 [mm] Stroke Z axis: 425 [mm] Traversing feeds X, Y and Z axes: 40000 [mm/min] Axes acceleration: 10 [m/s²] Max. bar diameter in turning spindle: 42 [mm] Main spindle max. speed: 6000 [rpm] Main spindle max. power: 7.5 [kW] Angular A axis stroke: 360 [°] Resolution A axis: 0.001 [°] Drive A axis: Torque-motor Spindle taper A axis: A2-4" B axis swivelling stroke: -15 [°] / +100 [°] Resolution B axis: 0.001 [°] Drive B axis: Torque-motor Spindle type: HSK-E40 Max. spindle speed: 42000 [rpm] Tool changer magazin number of stations: 72 Max. tool lenght: 150 [mm] Max. tool diameter: 80 [mm] Tool change time: 1 [sec] Chip to chip time: 3 [sec] Lubrication tank capacity: 150 [l] Collant pump flow rate: 60 [l/min] Rated current: 50 [A] Total power required: 35 [kVA] Supply voltage: 400 [V] Working hours: 9701 [h] Machine weight: 3300 [Kg] INCLUDED EQUIPMENT: x1 Back working unit with integrated 3-position turret on linear slide x1 Vise on back working unit x1 Counter-spindle on back working unit x1 42,000 rpm spindle with air/oil lubrication x1 RENISHAW OMP40-2 part probe x1 BLUM LaserControl NT laser measuring system for tool setting and tool monitoring x1 DETECTOR FRANCE type 202 tool breakage detection device x1 A2-4" collet chuck Set of 58 HSK-E40 tool holders x1 Self-tightening drill chuck LNS Super Hydrobar bar feeder, type 6.42 HS 3.2 Various equipment for LNS Super Hydrobar bar feeder Set of technical manuals x1 parameter backup system Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall, including CNC milling, drilling, and tapping machines, as well as CNC grinding machines. | |||
CONDITION | Fully functional | |||
WEIGHT | 3300 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/276/willemin-macodel-508mt/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
