CNC Tool Grinder
Access: 16
STOCK CODE | 90186 | |||
|---|---|---|---|---|
MACHINE ID | 18892 | |||

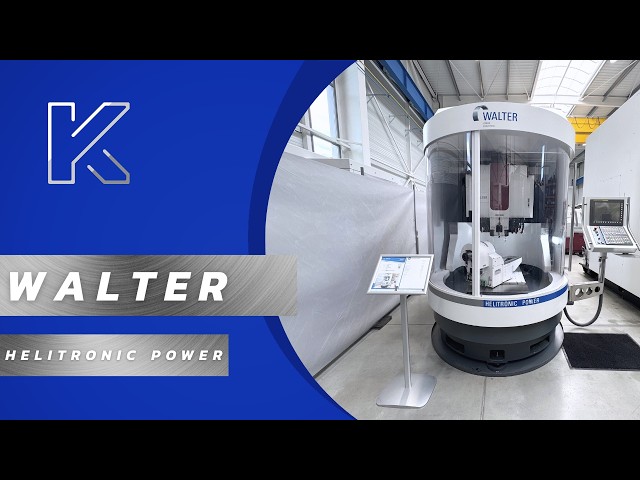

MANUFACTURER | WALTER TOOLS | |||
MODEL | Helitronic Power | |||
YEAR | 2008 | |||
PRICE | ||||

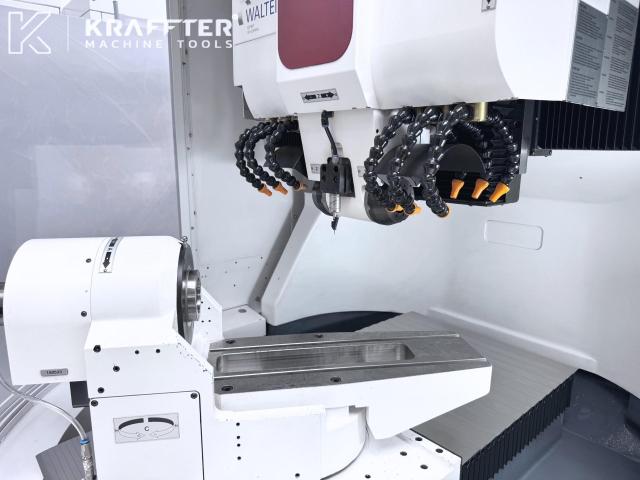

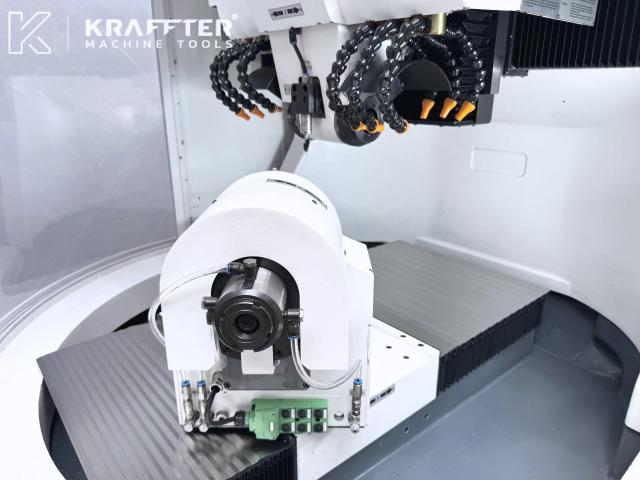

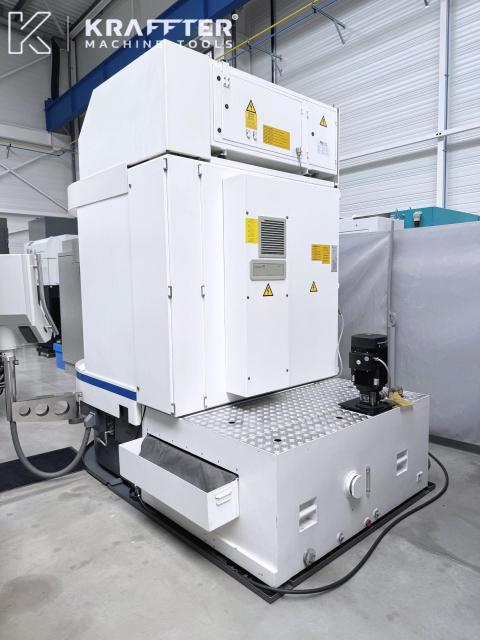

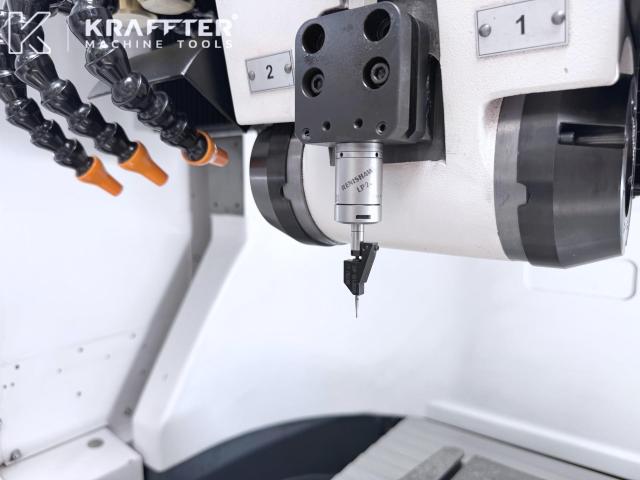

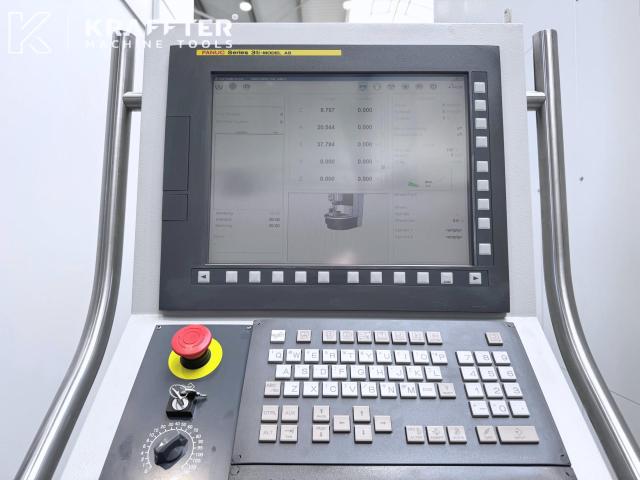

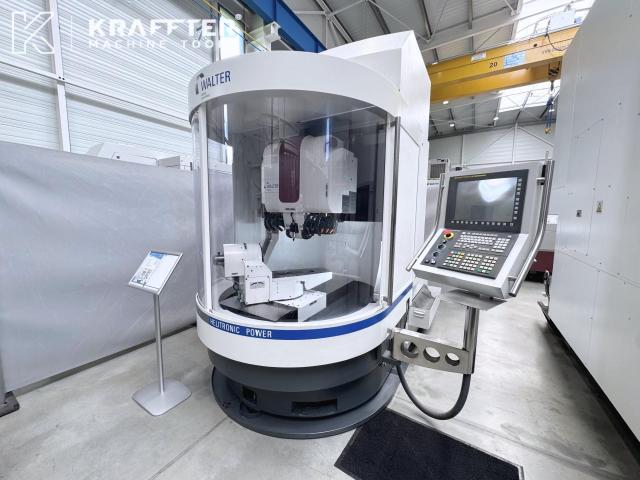

SPECIFICATION | CNC Tool grinding machine WALTER Helitronic Power TECHNICAL CHARACTERISTICS: Year of manufacturing: 2008 CNC control: FANUC Series 31i-model A5 Software installed: Tool Studio 3 Number of axes: 5 Height of centers: 145 / 190 [mm] Stroke X axis: 470 [mm] Rapid traverse rate X axis: 15000 [mm/min] Stroke Y axis: 330 [mm] Rapid traverse rate Y axis: 15000 [mm/min] Stroke Z axis: 660 [mm] Rapid traverse rate Z axis: 15000 [mm/min] Stroke A axis: 360 [°] Stroke C axis: +/- 200 [°] Max. workpiece lenght : end face grinding: 280 [mm] Max. grinding lenght: 350 [mm] Max. grinding diameter: 320 [mm] Max. grinding wheel speed: 9500 [rpm] Grinding spindle motor power: 11.5 [kW] Max. diameter grinding wheel: 200 [mm] Number of hours under power: 8948 [h] Coolant pump pressure: 7 [bar] Collant pump flow rate: 120 [l/min] Lubrication tank capacity: 400 [l] Supply voltage: 400 [V] Total power required: 25 [kVA] Weight: 4500 [Kg] INCLUDED EQUIPMENT: x1 TOOLSTUDIO 3 software x1 direct-drive A axis (Hollow Shaft) x1 automatic tool clamping system x1 RENISHAW LP2 part probe x1 DSL Air Technology type AES-GAMMA 30 mist extractor x1 lubrication tank + paper filtration system x1 GRUNDFOS coolant pump x35 grinding wheel holders (equipped with CBN wheels) x22 ISO50 attachments x1 SCHUNK collet holder x22 collets x1 NIKKEN collet holder x13 NIKKEN collets x1 metal rack for grinding wheel holders and ISO50 attachments 1x ISO50 calibration mandrel intended for axis calibration 1x calibration disc intended for axis calibration x1 set of service wrenches Various technical manuals Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening tools, milling cutters, taps, and drills. Machine similar to brands such as Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter. Also see cylindrical or surface grinding machines, lathes, machining centers, and milling machines. | |||
CONDITION | Fully functional | |||
WEIGHT | 4500 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/275/walter-helitronic-power/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
