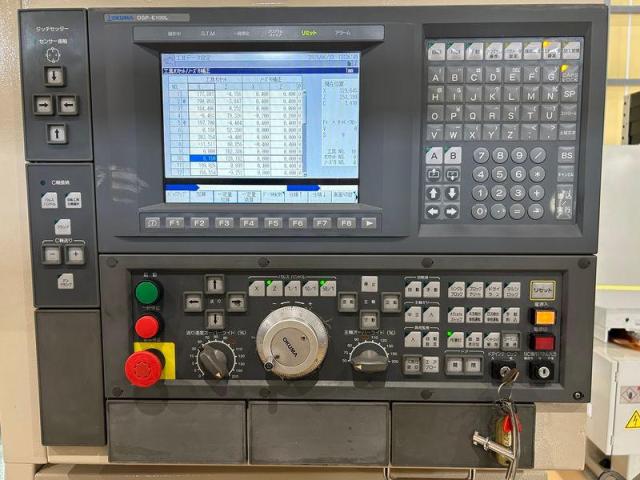

SPECIFICATION | Control unit: OKUMA OSP‑E100L
Max swing: φ530 mm
Swing over cross slide: φ420 mm
Distance between centers: 300 mm
Max work dia. × max work length: φ230× 300 mm
Travel (X, Z): 180 × 335 mm
C: 360° (rotational control angle 0.001°)
Max spindle speed: 50～6,000 rpm
Spindle through‑hole dia.: φ53 mm

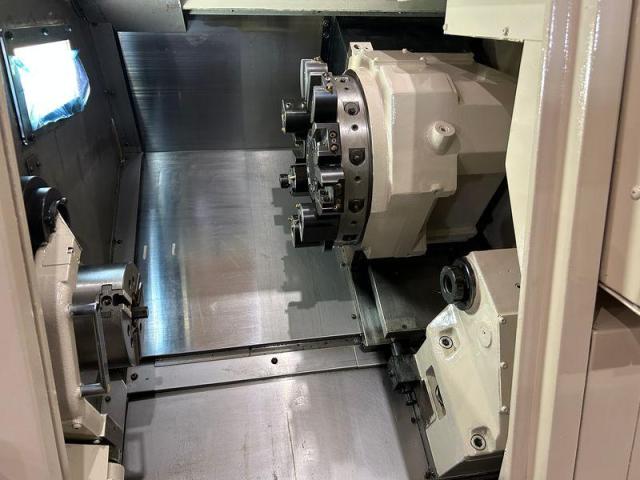

Turret type: 12‑station composite quick‑change type
(shared for L/M)
Tailstock quill travel: 80 mm
Rotary Tool Speed: 100～6,000 rpm
Required floor space: 2,035 × 1,720 mm
Machine height: 1,700 mm
Machine weight: 3,300 kg

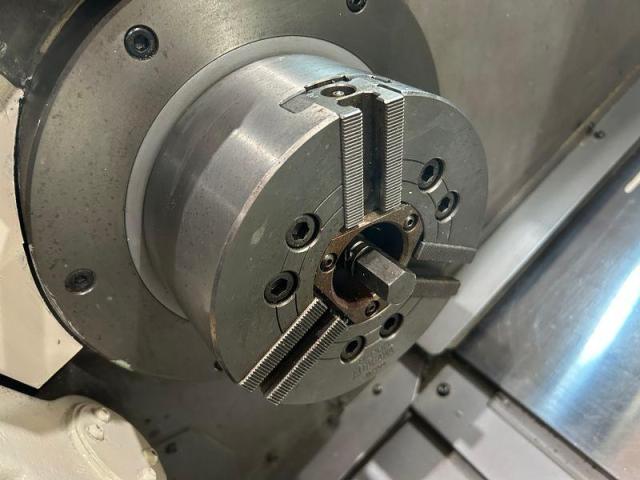

6‑inch 3‑jaw hydraulic chuck B‑206 (Kitag
Touch setter
Easy conversational programming
Synchronized tapping |
|---|
