CNC EDM
Access: 12
STOCK CODE | ||||
|---|---|---|---|---|
MACHINE ID | 18860 | |||

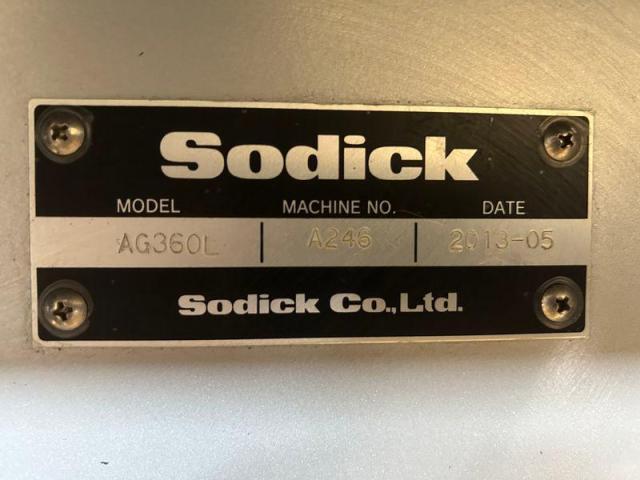

MANUFACTURER | SODICK | |||
MODEL | AG360L | |||
YEAR | 2013 | |||
PRICE | ||||

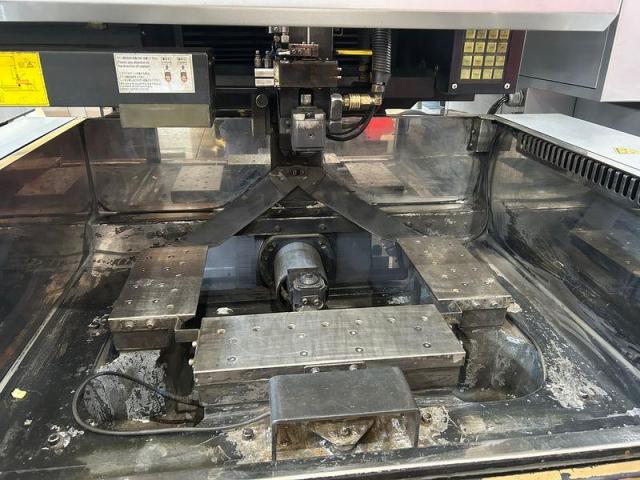

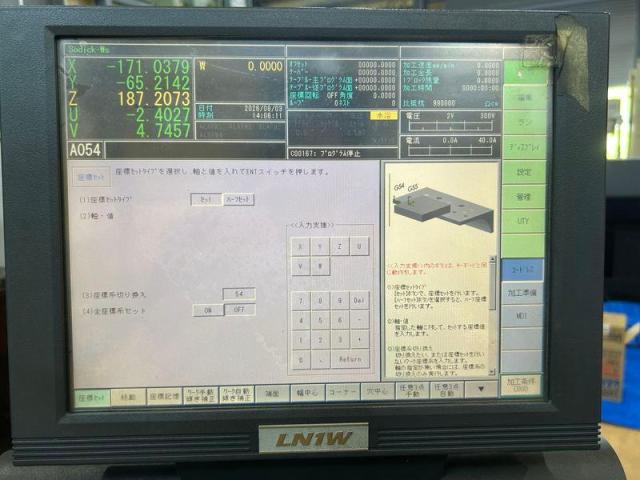

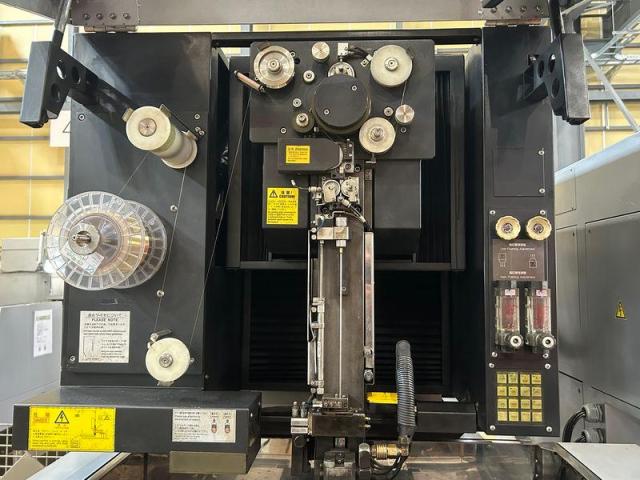

SPECIFICATION | Control unit : LN1W (SI-LINK) Maximum workpiece dimensions : 550 × 380 × 220 mm (jet machining) 550 × 380 × 170 mm (immersion machining) Maximum workpiece mass : 400 kg (jet machining) 300 kg (immersion machining) Machining tank internal dimensions : 894 × 720 mm Travel X : 360 Y : 250 Z : 220 mm U × V : 80 × 80 mm Taper machining control angle (at 80 mm thickness) : ±20° Wire electrode diameter : φ0.15–φ0.3 mm Wire feed speed : 420 mm/sec Wire bobbin mass : 8 kg Electrical capacity : 3-phase 50/60Hz 13 kVA Required floor space : 1,785 × 2,260 mm Height : 2,065 mm Machine weight : 2,700 kg Maximum discharge current: 40 A Service tank unit dimensions : 800 × 2,080 × 1,895 mm Machining fluid capacity : 590 liters Mass (dry) (including power supply) : 585 kg Machining fluid filtration method : Paper filter replacement type (internal pressure, dual‑cylinder type) Eco Ion : Ion‑exchange resin (18‑liter specification) | |||
LINK URL | ||||
LOCATION | Nara | |||
LOCATION DETAIL | 109 nakasuji shusaku kanmaki-cho, kitakatsuragi-gun, Nara, Japan | |||
SELLER COMPANY | AK Technos Co.Ltd | |||
SELLER PROFILE
AK Technos Co.Ltd
| ADDRESS | 2-3-28 Honjonaka Higashiosaka-city, Osaka, Japan, 578-0957 | ||
|---|---|---|---|
| CEO NAME | CONTACT PERSON | Shimizu | |
| TEL1 | 81-6-6747-8845 | TEL2 | |
| CELLPHONE | FAX | 81-6-6747-8846 | |
| BUSINESS HOURS | HOLIDAY | ||
| COMPANY DESCRIPTION | Machine tool, Press, Sheet metal machine, Structural steel machine, measuring device Note: Due to the extremely difficult export conditions to the areas located west of Myanmar include Middle East, under the trade control of the Japanese government, sales to these areas are STOPPED. Please note that we will NOT reply to any inquiries from those countries. | ||
| INQIRY FORM | Contact By Email | MACHINE SPECIALTY | Machine Tools,Measuring / Testing,Presses,Sheet Metal |
| SITE URL | COMPANY TYPE | Used Machine Dealer,Machine & Equip. Trader | |
