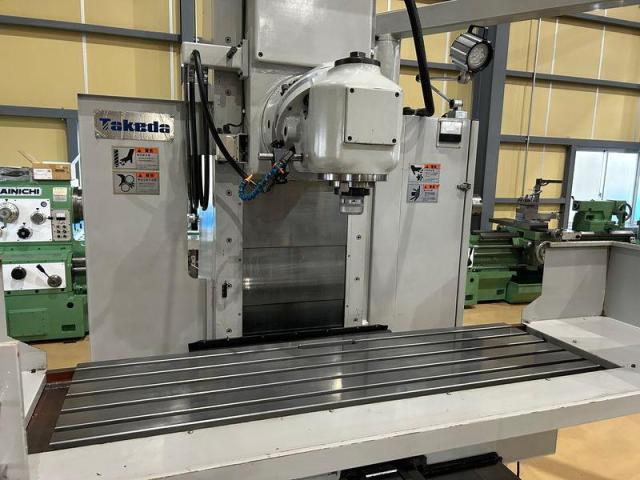

SPECIFICATION | Control unit: FANUC 32i‑MB

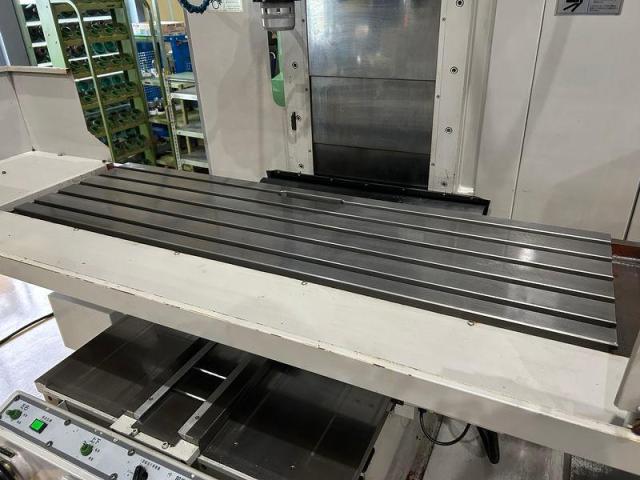

Table size: 1,400 × 400 mm
Table T-slot dimensions: 54×11.8 mm (75 mm pitch)
Travel: X 1,000 mm Y 505 mm Z 480 mm
Distance from spindle end to table surface (vertical axis): 10～490 mm
Distance from spindle center to table surface (horizontal axis): 15～495 mm
Spindle speed: 35～1,350 rpm

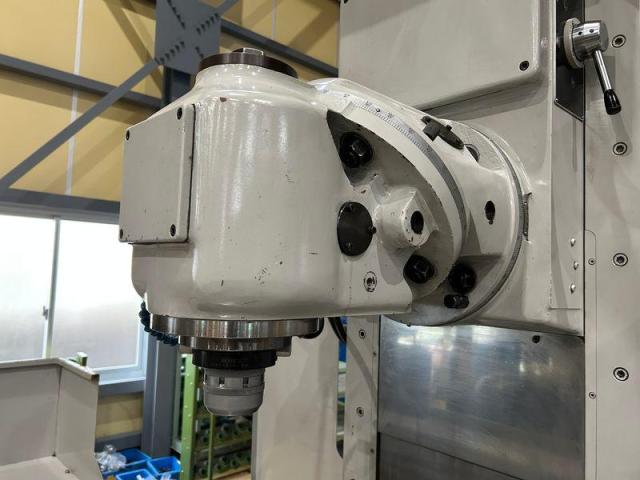

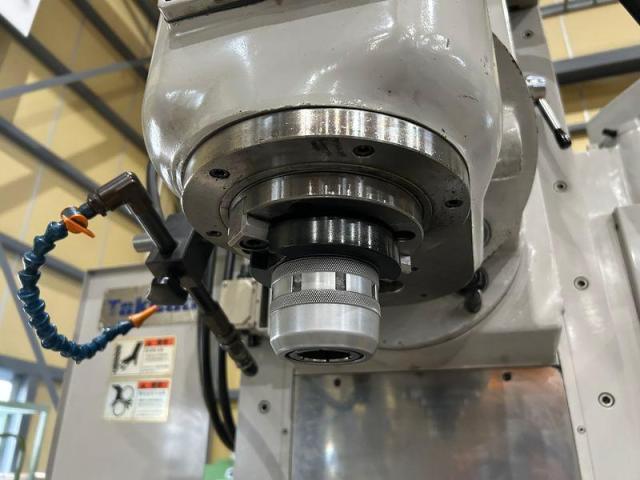

Spindle nose: NT50

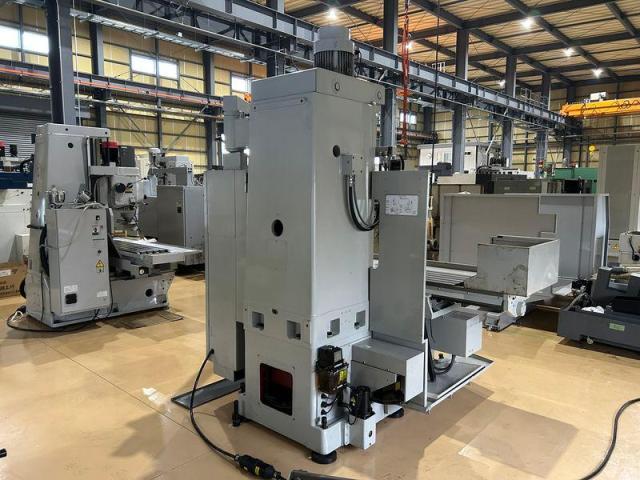

Required floor space: 3,340 × 1,920 mm
Height: 2,630 mm
Machine weight: approx. 5,000 kg

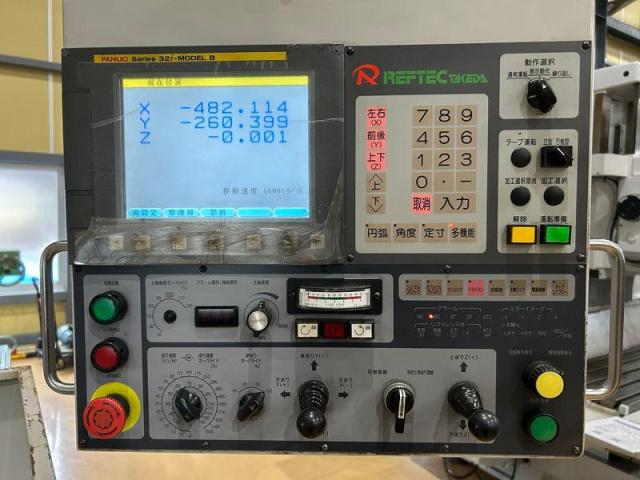

Operation panel: Standard / Guidance (conversational only)

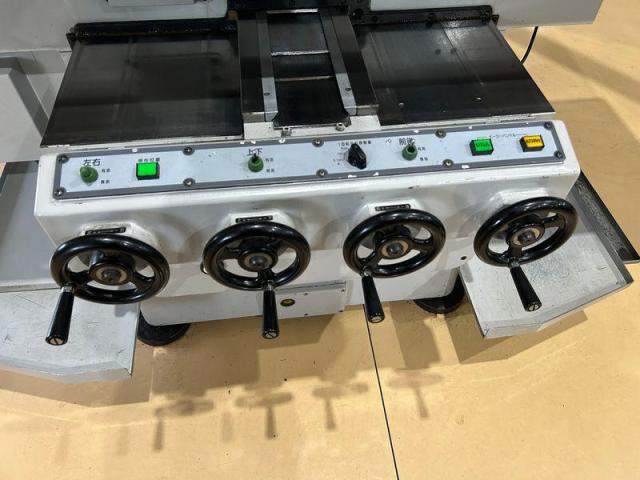

Manual taper handle included
Coolant unit (30 L)
Spindle lock mechanism
Splash guard
LED work light |
|---|
