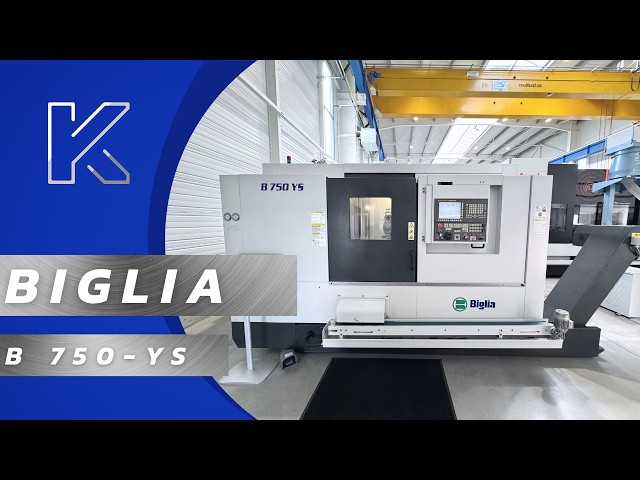

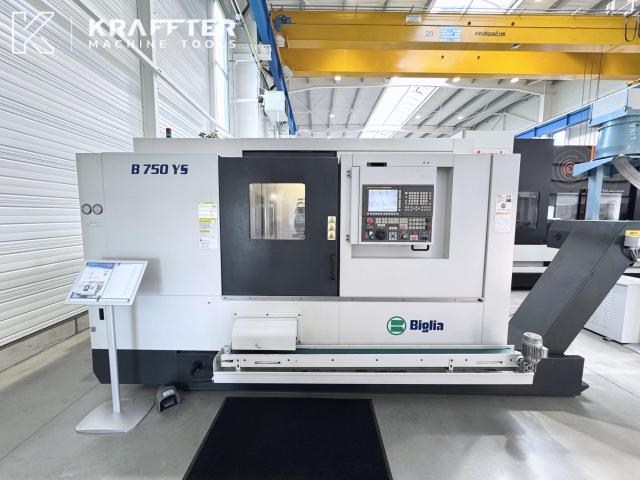

CNC Lathe
Access: null
STOCK CODE | 90183 | |||
|---|---|---|---|---|
MACHINE ID | 18801 | |||
MANUFACTURER | BIGLIA | |||
MODEL | B750 YS | |||
YEAR | 2015 | |||
PRICE | ||||

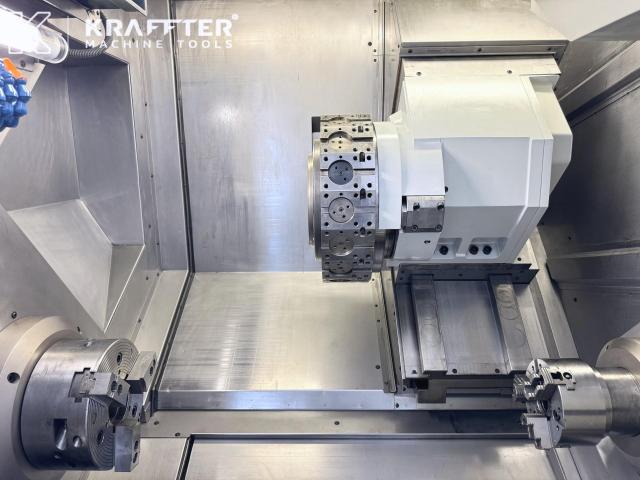

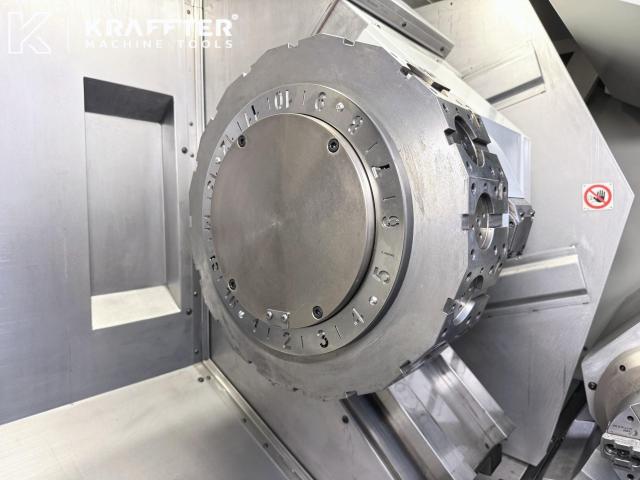

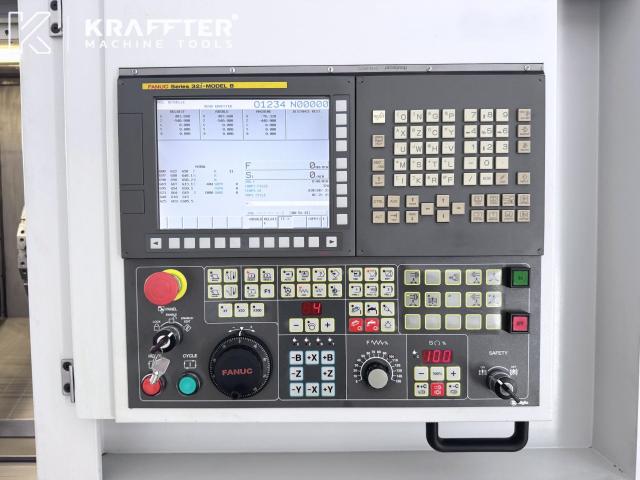

SPECIFICATION | CNC Lathe BIGLIA B750 YS TECHNICAL CHARACTERISTICS: Year of manufacturing: 2015 CNC control: FANUC series 32i-B Max. turning diameter in rotation: 680 [mm] Stroke X axis: 305 [mm] Stroke Y axis: 140 [mm] Stroke Z axis: 860 [mm] Rapid traverse rate X axis: 18000 [mm/min] Rapid traverse rate Z axis: 24000 [mm/min] Rapid traverse rate Y axis: 7500 [mm/min] Spindle nose: ASA 8" Max. bar diameter: 80 [mm] Spindle throughbore: 91 [mm] Max. spindle speed: 3500 [rpm] Increment C-axis: 0.001 [°] Spindle power: 22 [kW] Spindle torque: 700 [Nm] Counter spindle nose: ASA 5" Counter spindle throughbore: 55 [mm] Counter spindle stroke: 895 [mm] Max. counter spindle speed: 5000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 25 [kW] Counter spindle torque: 159 [Nm] Max. tool holder cross-section: 25 x 25 [mm] Number of tool stations: 16 Turret indexing time: 0.3 [s/pos] Number of tool stations driven: 16 Max. speed driven tools: 6000 [rpm] Live tools power: 17.5 [kW] Lubrication tank capacity: 300 [l] Collant pump flow rate: 60 [l/min] Rated current: 60 [A] Supply voltage: 400 [V] Number of cutting hours: 5674 [h] Dimensions: 5070 x 2030 x 2220 [mm] Weight: 7600 [Kg] INCLUDED EQUIPMENT: 1 LNS bar feeder, Quick Load Servo III type 1 three-jaw chuck Ø250 mm 1 three-jaw chuck Ø165 mm 1 automatic RENISHAW tool probe 2 live axial tool holders 1 live radial tool holder 11 static tool holders 1 high-pressure coolant pump (20 bar) 1 chip conveyor 1 parts catcher 1 parts conveyor belt Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine tool similar to turn-mill centers, machining centers, and milling machines, comparable to brands such as Schaublin, Index, Mori Seiki, Traub, Tsugami, Star, Tornos, Biglia, Nakamura, Miyano, DMG Mori, and Mazak. CNC lathe, NC lathe, numerically controlled lathe, machining center, NC milling machine, CNC milling machine, numerically controlled milling machine, Fanuc, iTNC, TNC, Heidenhain, Mori Seiki, Mazak, Hurco, Nakamura, Takamura, Hardinge. | |||
CONDITION | Fully functional | |||
SIZE | 5070 x 2030 x 2220 [mm] | |||
WEIGHT | 7600 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/273/biglia-b750-ys/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
SELLER PROFILE
Kraffter Machine Tools
| ADDRESS | 137 ZA Le Jasmin Nord, Saint-Genix-les-Villages, Auvergne-Rhône-Alpes, France, 73240 | ||
|---|---|---|---|
| CEO NAME | LECRONT Kévin | CONTACT PERSON | LECRONT Kévin |
| TEL1 | +33486117777 | TEL2 | |
| CELLPHONE | FAX | ||
| BUSINESS HOURS | HOLIDAY | ||
| COMPANY DESCRIPTION | Kraffter Machine Tools® SAS is a young, agile and dynamic company, specialised in the trading, purchase, reconditioning and resale of used machine tools worldwide. Located near Lyon in Auvergne Rhône-Alpes since 2016, on a strategic axis between Switzerland, Germany and Italy, we benefit from an international expertise with a network of quality customers and suppliers combining a high very high standard of technical competence. We buy and sell all types of CNC and conventional machine tools for precision mechanics: machining centres, lathes, surface and cylindrical grinding machines, sliding headstock lathes, sharpening machines, universal tool grinders, milling machines, drilling machines, bandsaws, etc… Our 1100 m2 facility, located on a 4500 m² enclosed site, includes a repair and reconditioning workshop, as well as a storage and exhibition area. | ||
| INQIRY FORM | Contact By Email | MACHINE SPECIALTY | Machine Tools |
| SITE URL | COMPANY TYPE | Used Machine Dealer | |
