SPECIFICATION | ◆Material Diameter: 51-type specifications: Φ8～Φ45mm (Φ51) H10～H38mm
◆Material Capacity: Φ10→30 pieces, Φ45→7 pieces, Φ51→6 pieces
◆Material Length: 4.0m
◆Remaining Material Disposal: Rearward extraction (remaining material length 70mm～500mm)
◆Feeding Speed: Forward maximum 350mm/sec, Reverse maximum 700mm/sec
◆Feeding Output: MAX 400N (40.8kgf)
◆Power Supply: AC200V 3PH 50/60Hz・2.0KVA
◆Air Source: 0.5～0.7Mpa (5～7kgf/cm²)
◆Oil Used: 4.0m → 65ℓ
◆Equipment Weight: 4.0m → 1,200kg

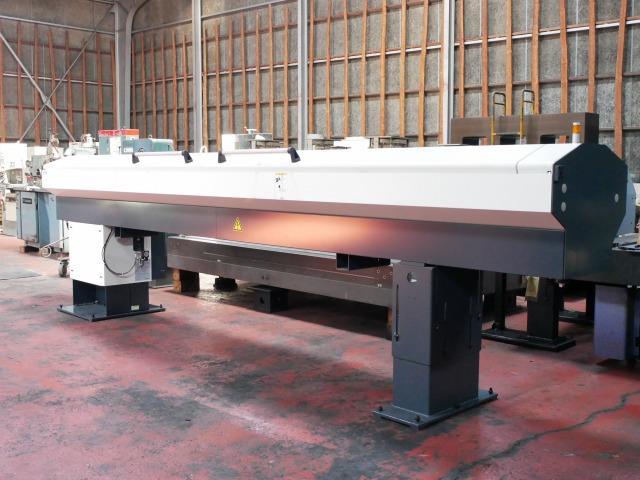

◆Body Length: 4,860
◆Material Shelf Length: 4,030
◆Leg Center Distance: 3,500
◆Feed pipes are available in 42, 45, and 51 types as standard specifications; others are prepared to match the NC automatic lathe to which it is installed.
◆If the material diameter is larger than the maximum inner diameter of the finger chuck, please machine a step at the rear end of the material.
◆Setup replacement parts, options, and special specifications are handled separately.
◆Use the rotation speed according to the bending accuracy of the material.
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
