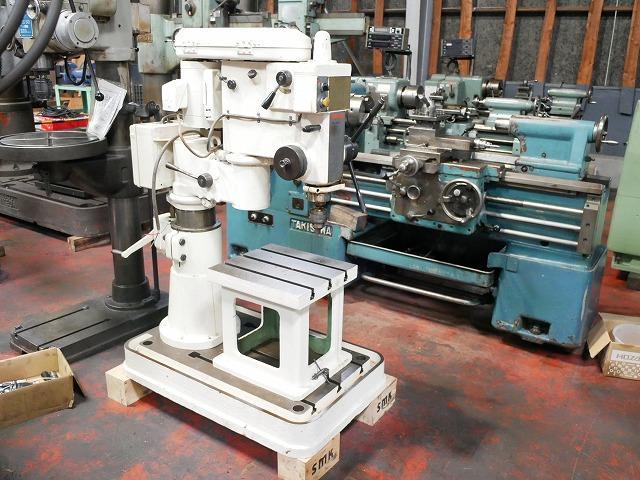

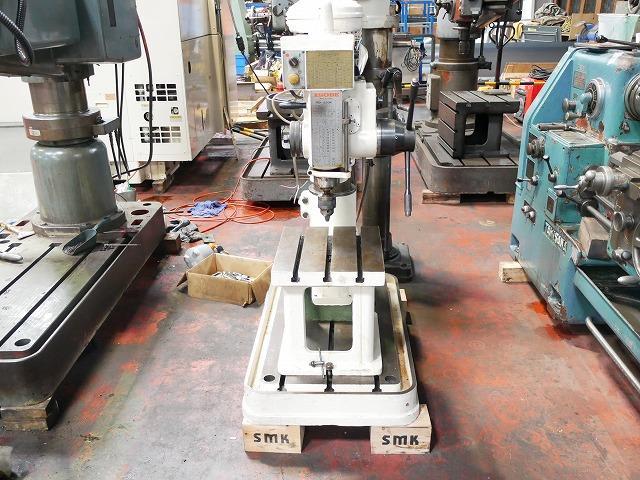

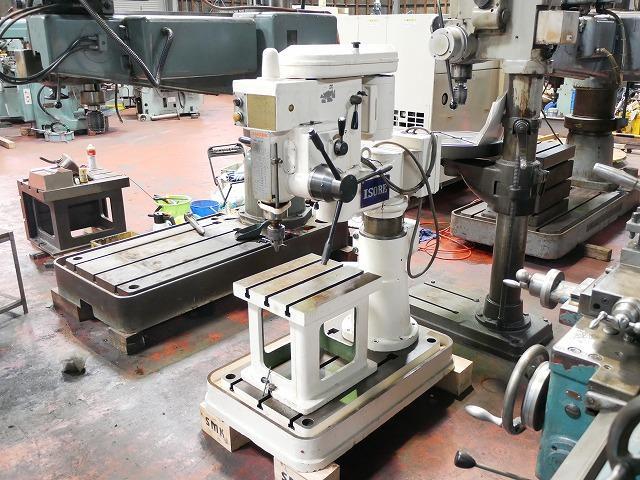

Free drilling machine

Access: 1

Print FAX PAPER

STOCK CODE

20501025
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

18516

MANUFACTURER

ISOBE IRON WORKS

MODEL

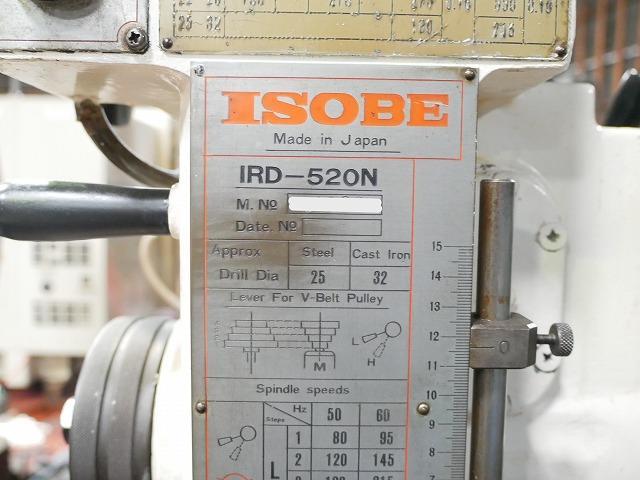

IRD-520N

YEAR

PRICE

SPECIFICATION

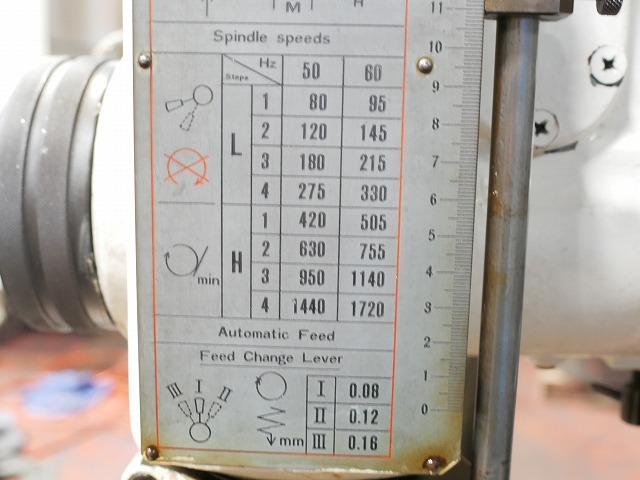

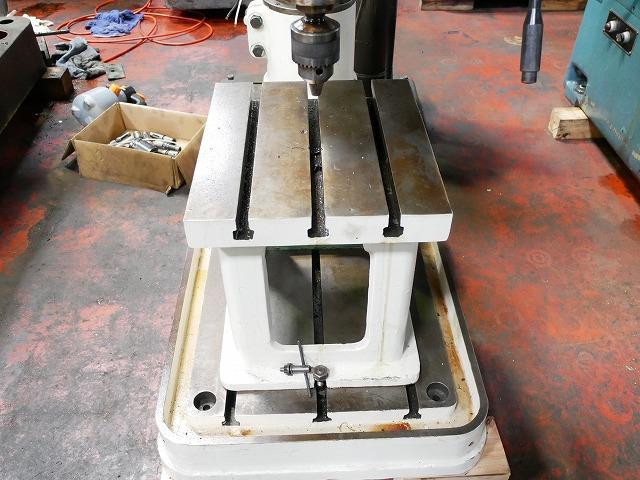

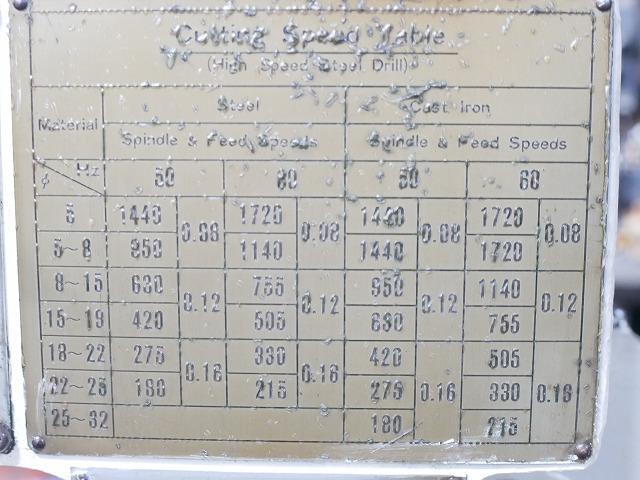

◆Base dimensions (mm): 620 * 970 * 120 ◆Column diameter (mm): 160 ◆Distance from outer surface of column to spindle (center) (mm) (max): 520 ◆Maximum vertical movement of column (mm) (max): 360 ◆Table dimensions (mm): 370 * 420 * 400 ◆Spindle hole taper (M.T): No.3 ◆Maximum vertical movement of spindle (mm): 150 ◆Drilling capacity (mm): Cast iron 32, Steel 28Φ ◆Threading capacity (mm): 6-22 6-16 ◆Motor (KW): 1.5 (2HP) ◆Spindle speed control: 8 stages ◆50Hz (rpm): 80, 120, 180, 275, 420, 630, 950, 1440 ◆60Hz (rpm): 95, 145, 215, 330, 505, 755, 1140, 1720 ◆Automatic feed speed control: 3 stages (mm): 0.08, 0.12, 0.16 ◆Net weight (kg): 550 ✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.

WEIGHT

0.55

LINK URL

https://k-smk.co.jp/en/machines/20501025/

LOCATION

Mie

LOCATION DETAIL

SELLER COMPANY

Shinmeiwa Kiko Co.,Ltd

SELLER PROFILE

Shinmeiwa Kiko Co.,Ltd

See Product Inventory of this company＞

ADDRESS

3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011

CEO NAME

CONTACT PERSON

Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita

TEL1

81-59-361-5505

TEL2

CELLPHONE

FAX

81-59-364-8737

BUSINESS HOURS

HOLIDAY

COMPANY DESCRIPTION

New & Used Machine tool,Press, Tools

INQIRY FORMContact By EmailMACHINE SPECIALTY

Machine Tools,Measuring / Testing,Presses,Sheet Metal

SITE URL

https://k-smk.co.jp/en/

COMPANY TYPE

Used Machine Dealer
