SPECIFICATION | ◆Measurement range X: 500mm
◆Measurement range Y: 700mm
◆Measurement range Z: 400mm
◆Drive speed (CNC mode): Movement speed 8-300mm/s per axis (maximum combined speed 519mm/s), measurement speed 1-8mm/s

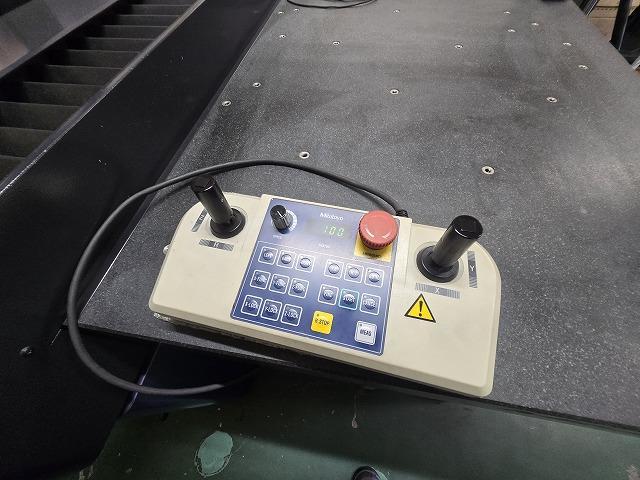

◆Drive speed (Joystick mode): Movement speed 0-80mm/s, measurement speed 0-3mm/s
◆Drive acceleration: Maximum 1333mm/s² per axis (maximum combined acceleration 2309mm/s²)
◆Side length method: Linear encoder
◆Minimum display unit: 0.0001mm
◆Measurement table (material): Gabbro
◆Measurement table (size (object surface)): 638 * 1160mm
◆Measurement table (object fixing method): M8 * 1 0.25
◆Measurement Object (Maximum Height): 545mm
◆Measurement Object (Maximum Mass): 180kg
◆Main Unit Dimensions (Height): 2185mm
◆Main Unit Dimensions (Width): 1082mm
◆Main Unit Dimensions (Depth): 1548mm
◆Machine Weight (Including Mounting Base): 540 (625) kg
◆Power Supply Conditions (Power Supply (Installation)): Single-phase AC 100-240 (V), 50/60Hz, Single-line Grounding
◆Power Supply Conditions (Power Capacity): 700VA (Including Probe Option)

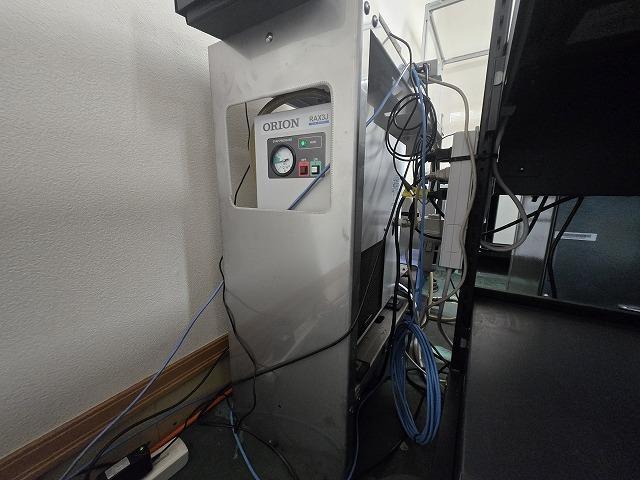

◆Operating Air Conditions (Operating Air Pressure): 0.4Mpa
◆Operating Air Conditions (Air Consumption): 50L/min (Under Standard Conditions)
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
