CNC Lathe
Access: 4
STOCK CODE | 90183 | |||
|---|---|---|---|---|
MACHINE ID | 18503 | |||
MANUFACTURER | BIGLIA | |||
MODEL | B750 YS | |||
YEAR | 2015 | |||
PRICE | ||||

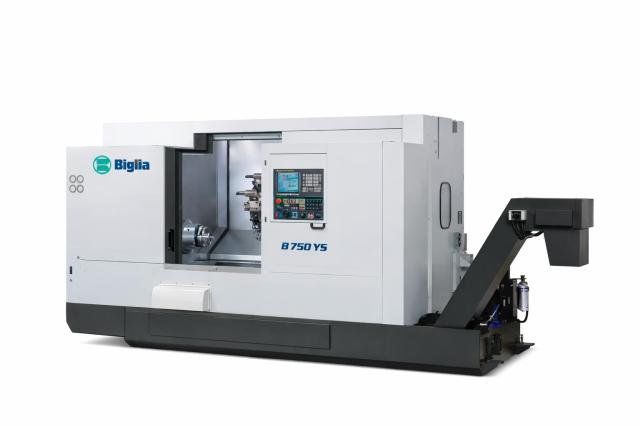

SPECIFICATION | CNC Lathe BIGLIA B750 YS TECHNICAL CHARACTERISTICS: Year of manufacturing: 2015 CNC control: FANUC series 32i-B Max. turning diameter in rotation: 680 [mm] Stroke X axis: 305 [mm] Stroke Y axis: 140 Stroke Z axis: 860 [mm] Rapid traverse rate X axis: 18000 [mm/min] Rapid traverse rate Z axis: 24000 [mm/min] Rapid traverse rate Y axis: 7500 [mm/min] Spindle nose: ASA 8" Max. bar diameter: 80 [mm] Spindle throughbore: 91 [mm] Max. spindle speed: 3500 [rpm] Increment C-axis: 0.001 [°] Spindle power: 22 [kW] Spindle torque: 700 [Nm] Counter spindle nose: ASA 5" Counter spindle throughbore: 55 [mm] Counter spindle stroke: 895 [mm] Max. counter spindle speed: 5000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 25 [kW] Counter spindle torque: 159 [Nm] Max. tool holder cross-section: 25 x 25 [mm] Number of tool stations: 16 Turret indexing time: 0.3 [s/pos] Number of tool stations driven: 16 Max. speed driven tools: 6000 [rpm] Live tools power: 17.5 [kW] Lubrication tank capacity: 300 [l] Collant pump flow rate: 60 [l/min] Rated current: 60 [A] Supply voltage: 400 [V] Dimensions: 5070 x 2030 x 2220 [mm] Weight: 7600 [Kg] INCLUDED EQUIPMENT: x1 three-jaw chuck Ø250 mm x1 three-jaw chuck Ø165 mm x2 live axial tool holders x1 live radial tool holder x8 static tool holders x1 high-pressure coolant pump (20 bar) x1 chip conveyor x1 RENISHAW tool probe x1 parts catcher x1 parts conveyor belt x1 LNS bar feeder, Quick Load Servo III type Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine tool similar to turn-mill centers, machining centers, and milling machines, comparable to brands such as Schaublin, Index, Mori Seiki, Traub, Tsugami, Star, Tornos, Biglia, Nakamura, Miyano, DMG Mori, and Mazak. CNC lathe, NC lathe, numerically controlled lathe, machining center, NC milling machine, CNC milling machine, numerically controlled milling machine, Fanuc, iTNC, TNC, Heidenhain, Mori Seiki, Mazak, Hurco, Nakamura, Takamura, Hardinge. | |||
CONDITION | Fully functional | |||
SIZE | 5070 x 2030 x 2220 [mm] | |||
WEIGHT | 7600 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/273/biglia-b750-ys/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
