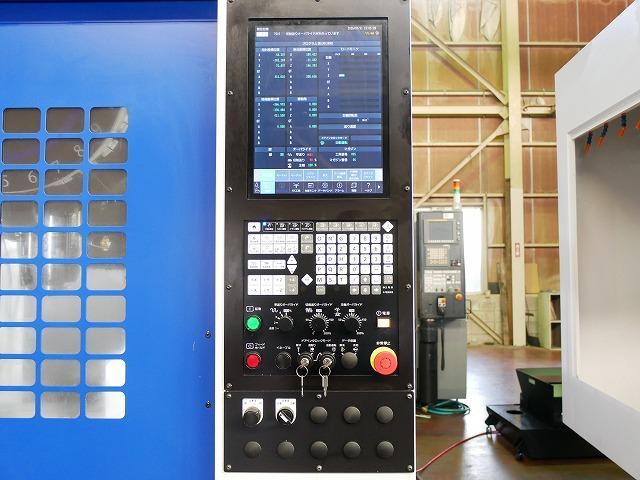

SPECIFICATION | ◆Control device: CNC-D00 (DX)
◆X-axis (mm): 700
◆Y-axis (mm): 400
◆Z-axis (mm): 300
◆Distance from table top to spindle end face (mm): 180-480

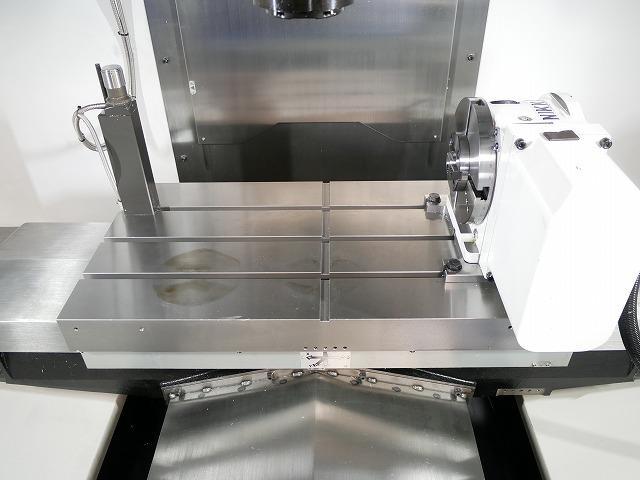

◆Work surface size (mm): 800 * 400
◆Maximum load capacity (uniform load) (kg): 250 (400)
◆Spindle rotation speed (min-1): 1-27,000
◆Spindle rotation speed during tapping (min-1): MAX. 8,000
◆Spindle taper hole: 7/24 taper No. 0.30
◆Rapid traverse speed X*Y*Z (m/min): 50*50*56
◆Cutting feed rate (m/min): X, Y, Z axes: 1-30,000
◆Tool shank type: MAS-BT30
◆Pull stud type: MAS-P30T-2

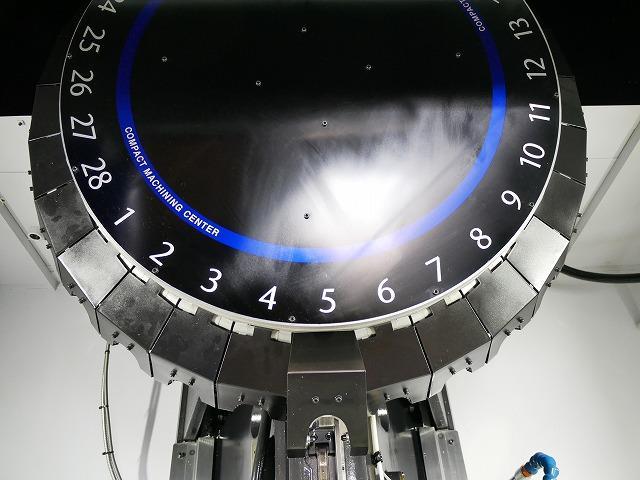

◆Number of tools stored: 28
◆Maximum tool length (mm): 250
◆Maximum tool diameter (mm): 110
◆Maximum tool weight (kg): 3.0 (Total weight: 35kg/28 tools)
◆Tool selection method: Random short turn
◆Tool change time (Tool Tool to Tool (sec): 0.7 (28 pieces)
◆Tool change time (Chip to Chip) (sec): 1.3 (28 pieces)
◆Machine height (mm): 2,498
◆Required floor space (with control device door open) (mm): 2,050 * 2,026 (2,864)

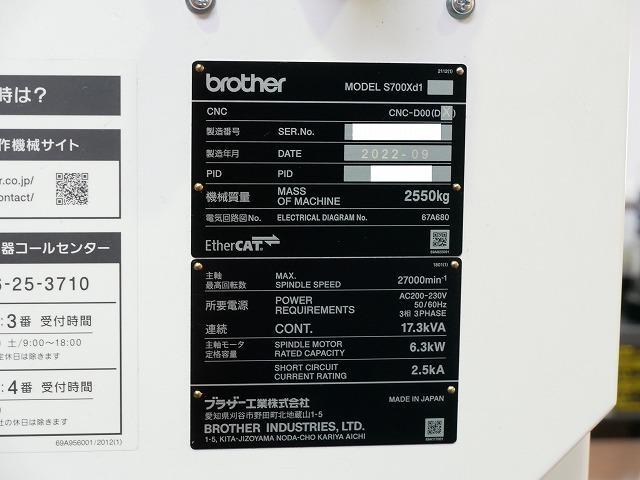

◆Machine weight (control device) (kg): 2,450
◆High column
◆With additional 1 axis
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
