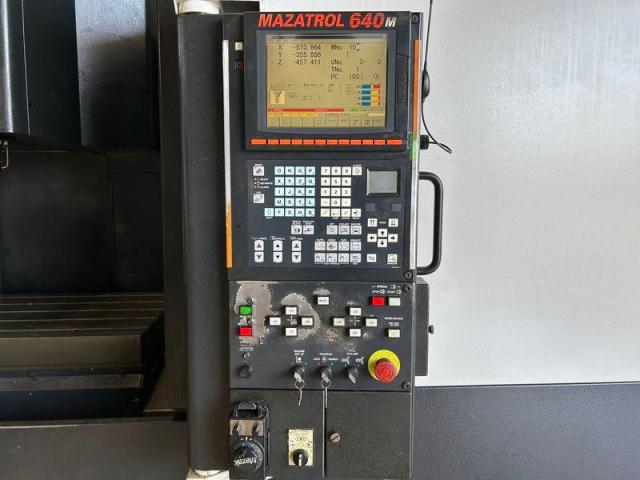

SPECIFICATION | Control unit: MAZATROL 640M

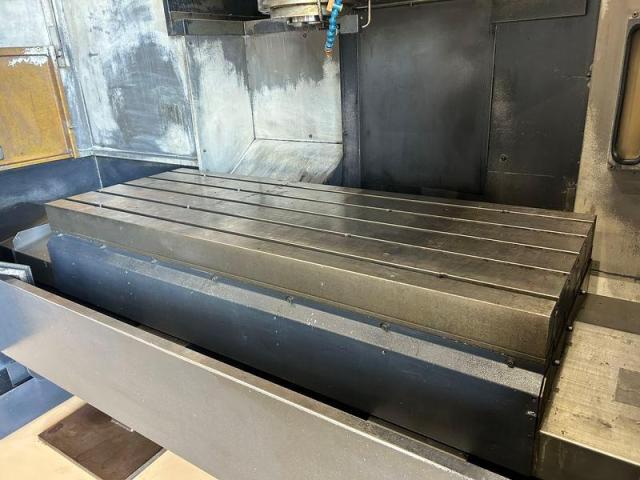

Table size: 1,740 × 650 mm
Maximum loading capacity: 2,000 kg
Travel X: 1,500 mm, Y: 650 mm, Z: 650 mm
Distance from spindle nose to table surface: 200–850 mm
Spindle speed: 6,000 rpm
Tool shank: BT50

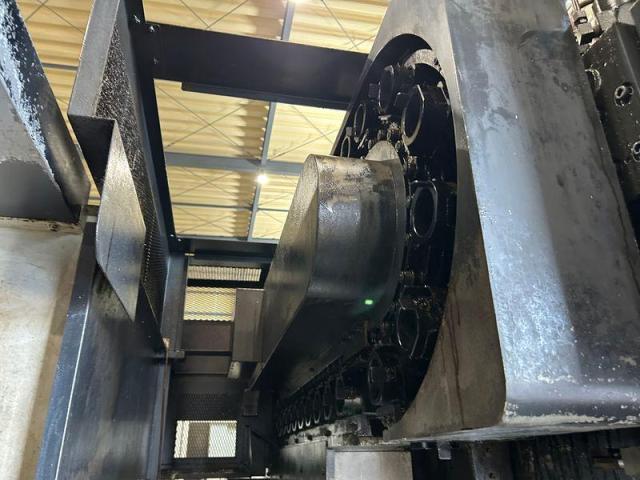

Tool storage capacity: 30 tools
Required floor space: 4,500×3,650 mm
Height: 3,000 mm
Machine weight: 11,000 kg
Automatic tool length measurement & breakage detection
Mazak Monitoring System B (MP3)
Sub table
Remote manual pulse generator (1 unit), Balm size
Work air blast
Chip conveyor (rear discharge, CONSEP)
Rotary chip bucket
Performance CNC option package
|
|---|
