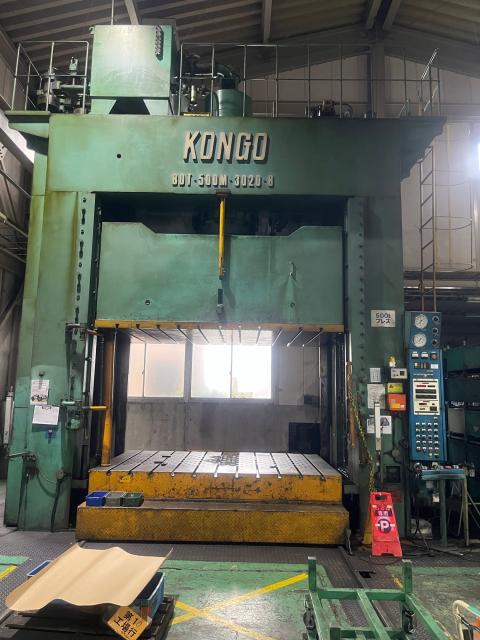

KONGO
(1) Capacity and main dimensions
a. Main Press device
Output 500 TON (at pressure 180 kgf/cm2)
Lifting capacity 30 TON (at pressure 125 kgf/cm2)
Hydraulic cylinder 1 unit
Piston diameter 600 mm
Rod diameter 550 mm
Stroke 1500 mm
Tail length 2000 mm
Slide table (left/right x front/back)
3000 mm x 2000 mm

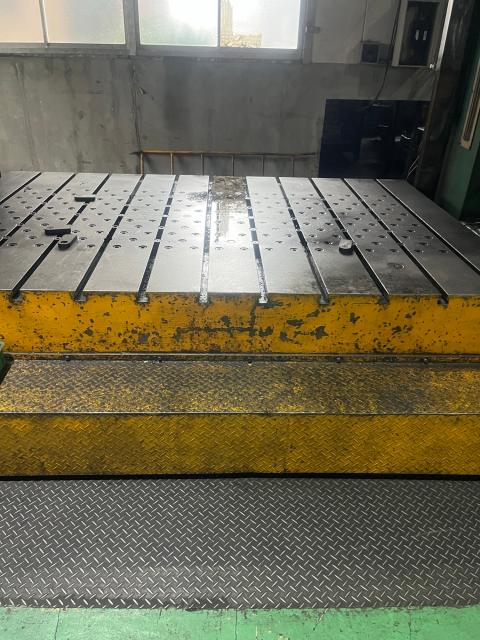

Bolster (left/right x front/back)
3000 mm x 2000 mm
b. Die cushion device
Output 170 TON (at pressure 160 kgf/cm2)
Hydraulic cylinders for die cushion 4 units
Rod diameter 180 mm
Stroke 350 mm
Lifting capacity 12 TON (at pressure 140 kgf/cm2)
Hydraulic cylinder for boost
1 unit; Piston diameter: 125mm; Rod diameter: 71mm; Die cushion pads (left/right x front/back): 2600mm x 1270mm
