CNC Vertical Lathe
Access: 4
STOCK CODE | 90171 | |||
|---|---|---|---|---|
MACHINE ID | 18227 | |||
MANUFACTURER | YAMAZAKI MAZAK | |||
MODEL | Mega Turn 900 | |||
YEAR | 2018 | |||
PRICE | ||||

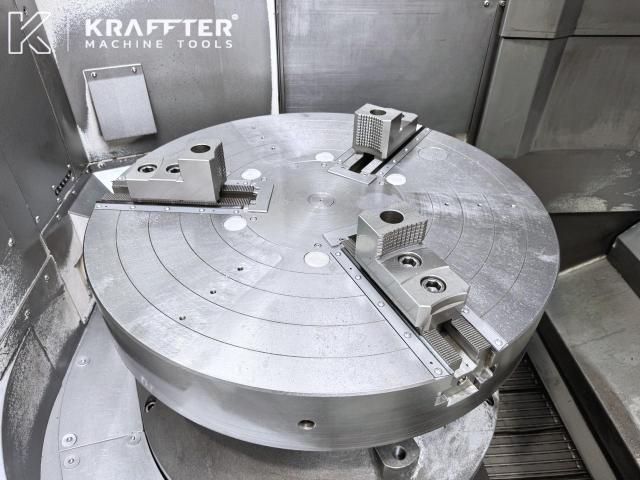

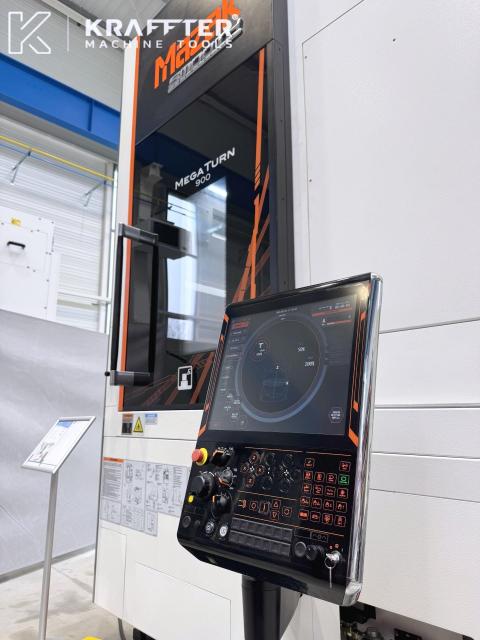

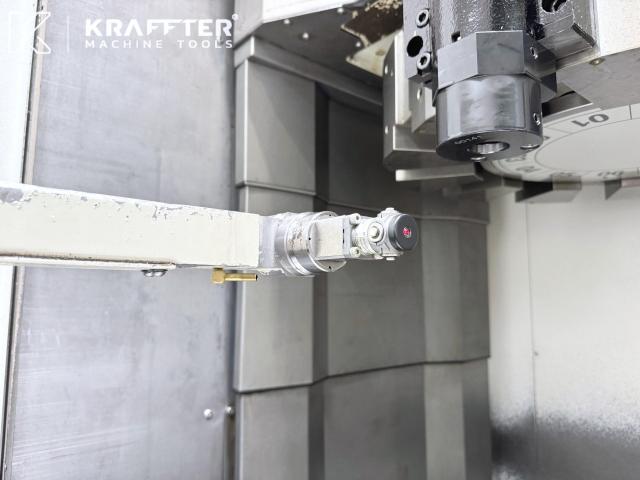

SPECIFICATION | CNC Vertical Lathe MAZAK Mega Turn 900 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2018 CNC control: MAZATROL SmoothG Max. turning diameter: 920 [mm] Max. cutting diameter: 1000 [mm] Stroke X axis: 470 [mm] Stroke Z axis: 876 [mm] Rapid traverse rate X axis: 24000 [mm/min] Rapid traverse rate Y axis: 24000 [mm/min] Spindle nose: A2-15 Max. spindle speed: 1250 [rpm] Spindle power: 30 [kW] Spindle torque: 3655 [Nm] Max. distance from spindle face to turret face: 1030 [mm] Max. workpiece weight: 3000 [Kg] Min. distance from spindle face to turret face: 154 [mm] Number of tool stations: 12 Turret indexing time: 0.4 [s/pos] Lubrication tank capacity: 516 [l] Total power required: 58.9 [kVA] Rated current: 109 [A] Supply voltage: 400 [V] Working hours: 2472 [h] Number of cutting hours: 2297 [h] Dimensions: 2375 × 4558 × 3659 [mm] Weight: 13000 [Kg] INCLUDED EQUIPMENT: x1 Ø800 mm chuck, KITAGAWA type NV-32C1515 x1 set of hard jaws x2 sets of soft jaws x10 tool holders (chair type) x24 KENNAMETAL type KM50 tool holders x1 retractable tool probe arm x1 double pedal unit for chuck clamping x1 coolant tank x1 chip conveyor x1 LOSMA type Galileo GP500 mist extractor x1 set of 4 lifting brackets x1 set of axis locking brackets (for machine transport) x1 MAZAK toolbox containing various service wrenches Various programming manuals Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Biglia, Index, Tsugami, Miyano, Star, and DMG Mori Tornos lathes, but also milling machines, grinding machines, and CNC. | |||
CONDITION | Fully functional | |||
SIZE | 2375 × 4558 × 3659 [mm] | |||
WEIGHT | 13000 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/255/mazak-mega-turn-900/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
