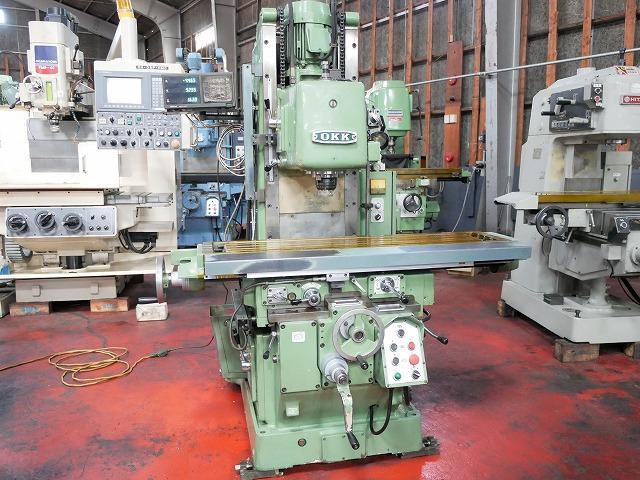

SPECIFICATION | #2 Bed-type vertical milling machine
◆Maximum machining volume (X, Y, Z) (mm): 720 * 260 * 360
◆Table width (X-axis) (mm): 720
◆Table width (Y-axis) (mm): 260
◆Spindle head up-down direction (Z-axis) (mm): 360
◆Distance between spindle end and table top (V only) (mm): 80-440
◆Distance between spindle center and column front (V only) (mm): 310
◆Distance between spindle center and table top (P only) (mm): 15-375
◆Distance between spindle center and overarm bottom (P only) (mm): 135

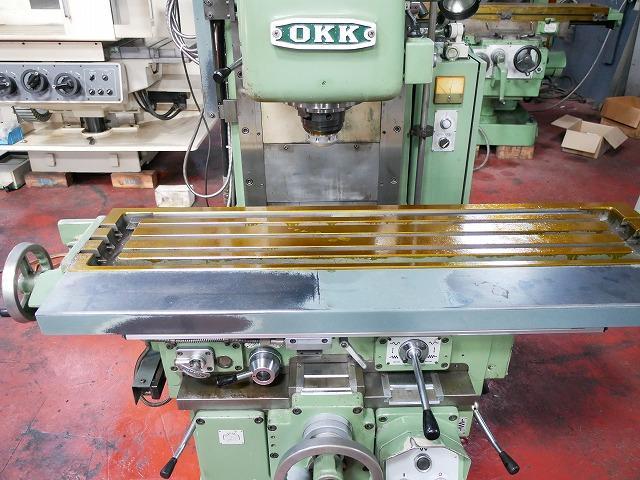

◆Table dimensions (L * W) (mm): 1,310 * 300
◆Number and dimensions of table slots (mm): 3 * 18H8
◆Maximum load weight (kg ): 500
◆Spindle drive (P*KW): 4*3.7
◆Feed drive (P*KW): 4*0.75
◆Cutting pump drive (P*W): 2*60
◆Machine weight (kg): 2,800
◆Installation area (mm): 2,410*1,620
◆Total power supply capacity AC200/220V・50/60Hz (KVA): 7
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
