MAKINO SEIKI CNJ2-30 NC tool grinder for Sale [18218] | USED MACHINERY.BZ

HOME
Select Machine Name
CNC Grinding Machines
NC tool grinder

NC tool grinder

Access: null

STOCK CODE	20601054			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	18218
MANUFACTURER	MAKINO SEIKI

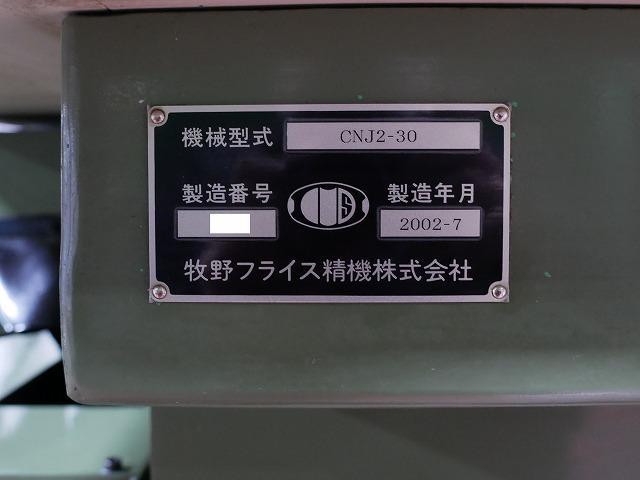

MODEL	CNJ2-30
YEAR	2002
PRICE

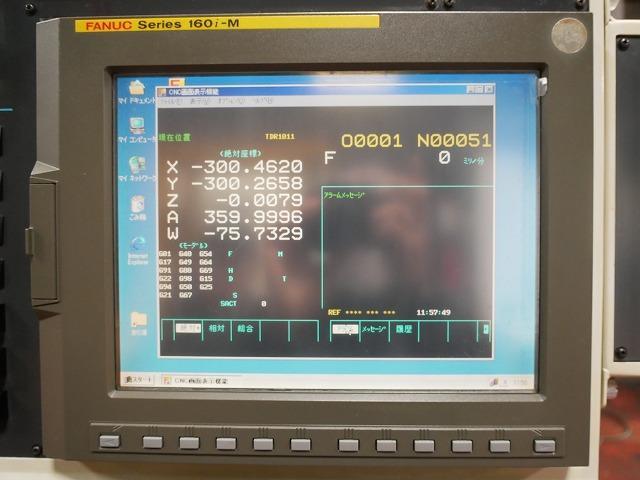

SPECIFICATION	◆Controller: 160i-M ◆X-axis travel (mm): 300 ◆Y-axis travel (mm): 300 ◆Z-axis travel (mm): 320 ◆A-axis travel (mm): 360 ◆U-axis travel (mm): 200 ◆W-axis travel (mm): 0 to -180 ◆Spindle speed (min-1): 2000 to 8000 ◆Spindle speed range: S 4-digit direct command ◆Spindle taper: ISO #30 male taper ◆Spindle power (kW): 5.0/4.0 ◆Number of controlled axes: 6 ◆Number of simultaneously controlled axes: 6 ◆Lubricant tank capacity (L) ): 2 ◆Lubrication motor output (kW): 0.003 ◆Number of discharge nozzles: 6 ◆Grinding fluid tank capacity (L): 200 ◆Grinding fluid pump motor output (kW): 2.2 ◆Power supply specifications: 3-phase AC 200/220V±20% 50/60Hz ◆Power capacity (kVA): 23.2 ◆Machine height (mm): 2345 ◆Machine weight (kg): 2500 ✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
WEIGHT	2.5
LINK URL	https://k-smk.co.jp/en/machines/20601054/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
