SPECIFICATION | ◆14,000 RPM Spindle (BT10)
◆360-Face Indexing Table
◆40 ATC
◆8-Nozzle Coolant
◆Ceiling Shower Coolant
◆Through-Spindle Coolant (3.0 MPa)
◆Left-Discharge Chip Conveyor LSW515
◆Rigid Tap

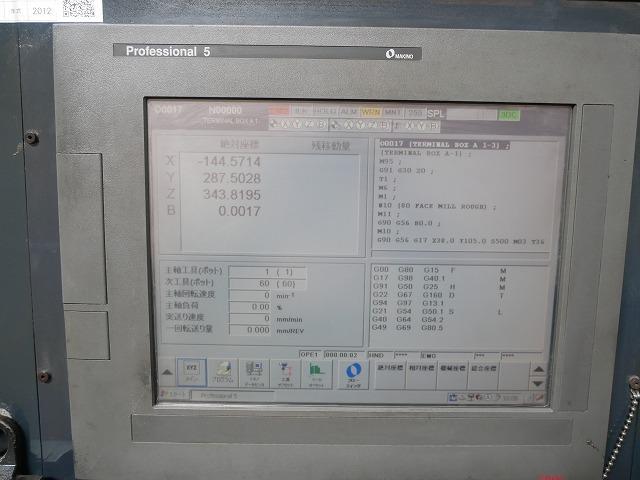

◆GI.4 Control
◆Pallet Changer
◆Pallet Changer Safety Guard
◆APC Door Lock
◆S/G Interior Lighting
◆Automatic Grease Supply System (Lube) )
◆Portable manual pulse generator (with handle activation button)
◆3-layer signal light

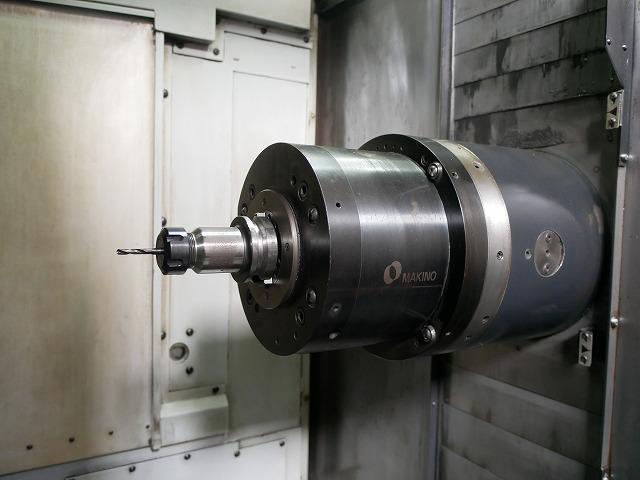

◆High-torque 14,000 rpm spindle (240 Nm)
◆Rotary table (DD motor)

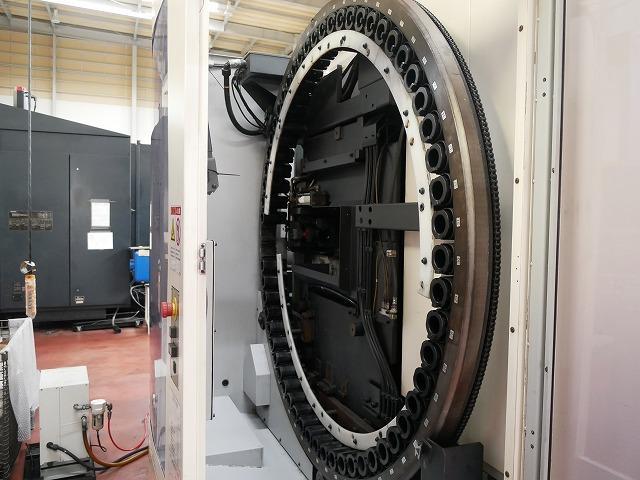

◆ATC 60 pieces
◆Moire scale feedback XYZ 0.05 μm
◆Tapped hole pallet specification (for 2 pieces) □500
◆Through-spindle coolant (3.0 MPa) and air
◆Casting treatment magnet (left-hand chip conveyor LSW 515)
◆ATC-side tool breakage detection device (B.T.S)
◆Air dryer

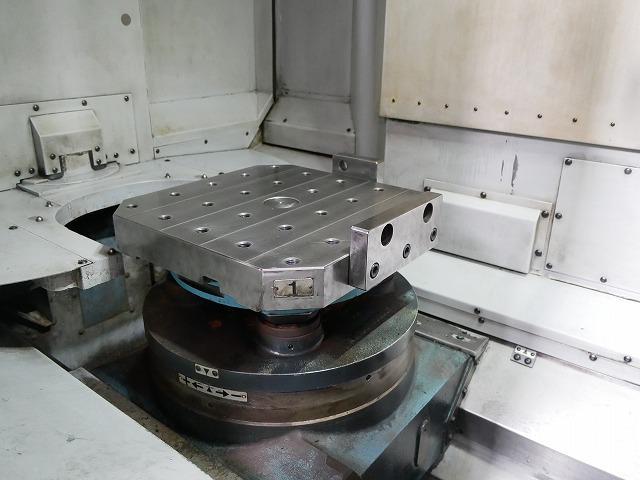

◆360-face (1-degree) indexing table
◆Pallet size: 500 * 500 mm
◆Workpiece (diameter): 630 mm
◆Workpiece (height): 900 mm
◆Maximum load: 400 kg
◆Pallet top surface shape: 24-M16 tapped holes
◆Pallet positioning: 4-point tapered bushing type
◆Minimum setting increment for rotary table (DD motor): 0.0 001°
◆ Rotary table indexing time (DD motor): 1.00/1.21 s (90/180 degrees, including clamping time)
◆ Rotary table rapid traverse speed: 45,000 deg/min
◆ Rotary table cutting feed rate: 1 to 45,000 deg/min
◆ Rotary table jog feed rate: 1 to 8,000 deg/min
◆ Rotary table torque
✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
