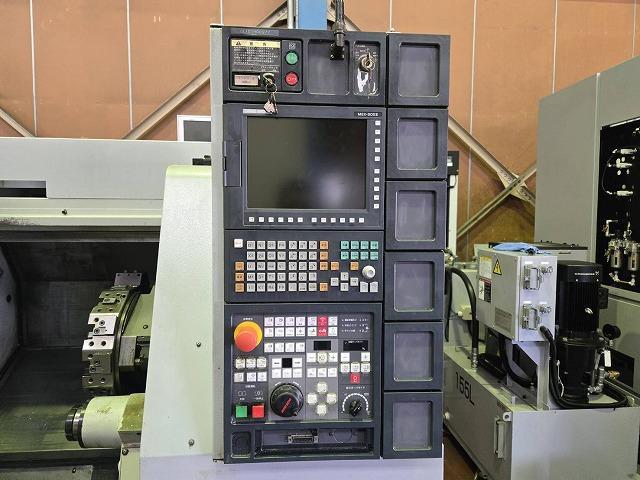

SPECIFICATION | ◆Controller: MSX-805Ⅲ
◆Bed swing: 510mm
◆Maximum machining diameter: 420mm
◆Standard machining diameter: 176mm
◆Maximum machining length: 570mm
◆Bar work capacity: 33mm
◆X-axis travel: 245mm
◆Z-axis travel: 570mm

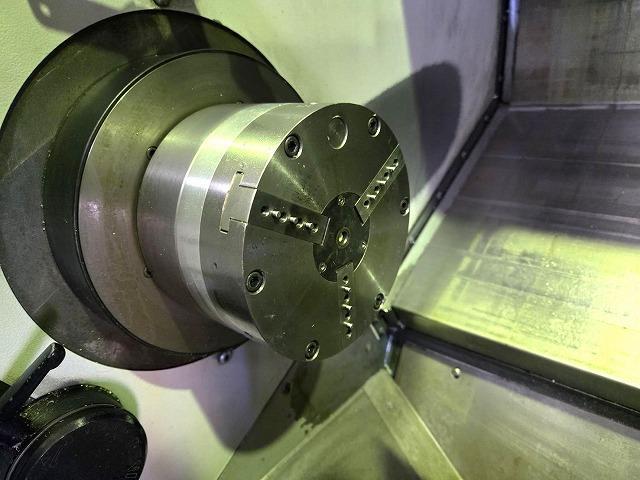

◆Spindle rotation speed: 60-6,000min-1
◆Spindle tip shape: JIS A₂-5
◆ Spindle Through-hole Diameter: 43mm
◆ Spindle Bearing Inner Diameter: 80mm

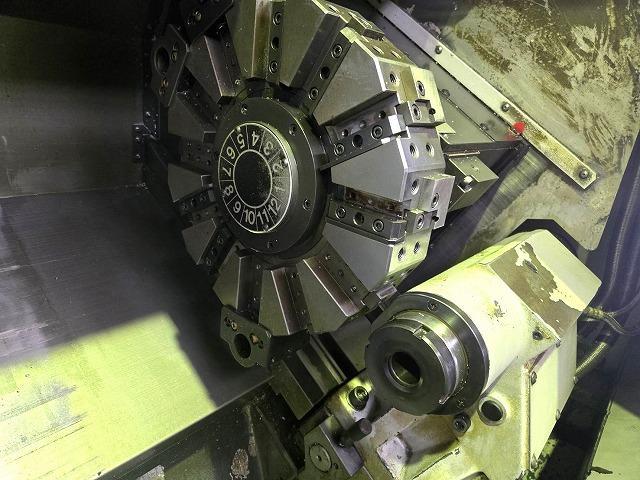

◆ Tool Post Mounting Capacity: 12
◆ Tool Post Square Tool Shank Height: 20mm
◆ Tool Post Boring Bar Shank Diameter: 32mm
◆ Tool Post Indexing Time: 0.7 seconds
◆ Rapid Traverse Rate: X, Z: 24,000mm/min
◆ Jog Feed Rate: X, Z: 0-1,260mm/min
◆ Tailstock Travel: 340mm
◆ Tailstock Diameter: 85mm
◆ Tailstock Tapered Hole Type: MT4 (Rotary Center) (Ta)
◆Tailstock travel: 120mm

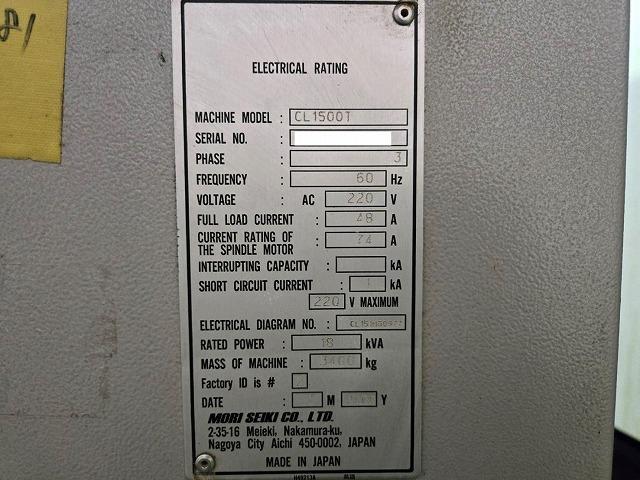

◆Spindle motor (30 min./continuous): 7.5/5.5kW
◆Feed motor: X: 1.5, Z: 2.0kW
◆Coolant motor (50/60Hz): 0.635/1.04kW
◆Power supply: 17.3kVA
◆Coolant tank capacity: 150L
◆Machine height: 1,814mm
◆Floor space required: 1,975*1,667mm
◆Machine weight: 3,390kg
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
