BROTHER INDUSTRIES BT71-521 Bench Tapping for Sale [18099] | USED MACHINERY.BZ

HOME
Select Machine Name
Drilling Machines
Bench Tapping

Bench Tapping

Access: 10

STOCK CODE	20506023			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	18099
MANUFACTURER	BROTHER INDUSTRIES
MODEL	BT71-521
YEAR
PRICE

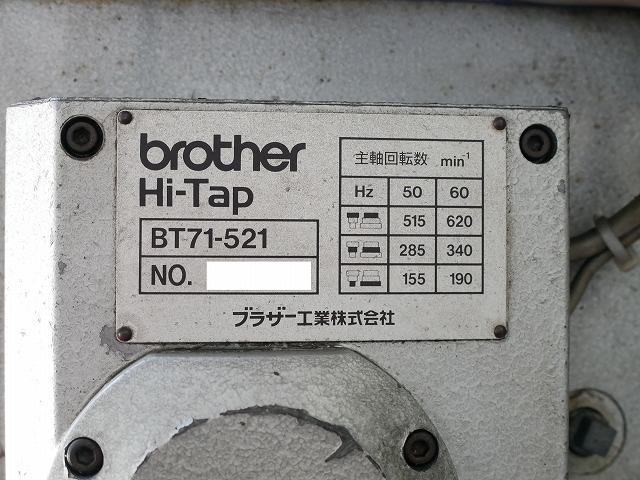

SPECIFICATION	◆ Spindle stroke: 8-65mm ◆ Swing: 440mm ◆ Tapping capacity: M5-M16mm ◆ Head vertical movement: 300mm ◆ Maximum distance between spindle tip and table: 445mm ◆ Spindle tip shape: MT No. 2 (hole) ◆Table T-slot dimensions: 14 * 24 (3 holes) mm ◆Table work surface size: 360 * 340 mm ◆Installation area (vertical): 440 * 600 mm ◆Installation area (horizontal): 180 * 256 mm ◆Motor: 3-phase 4/8P-1.5/0.75 kW ◆Power supply: AC 200 V 50/60 Hz ◆Power capacity: 1.56 KVA ◆Spindle speed (50 Hz): 515, 285, 155 min-1 ◆Spindle speed (60 Hz): 620, 340, 190 min-1 ✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
LINK URL	https://k-smk.co.jp/en/machines/20506023/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
