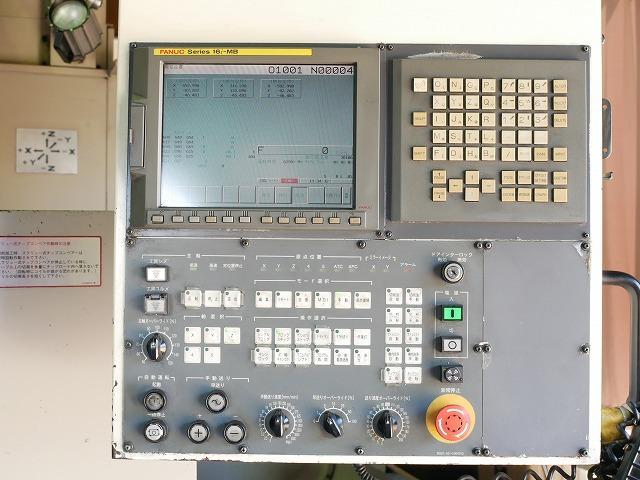

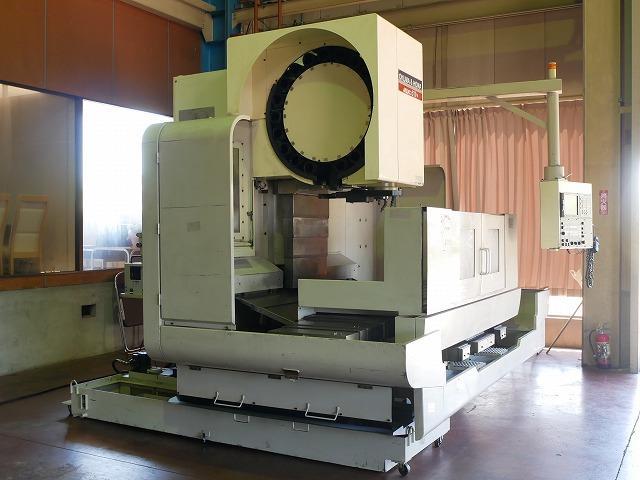

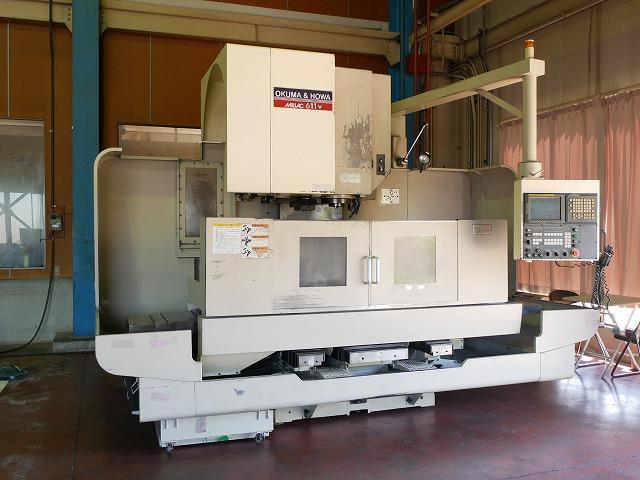

SPECIFICATION | ◆Controller: FANUC-16i-MB

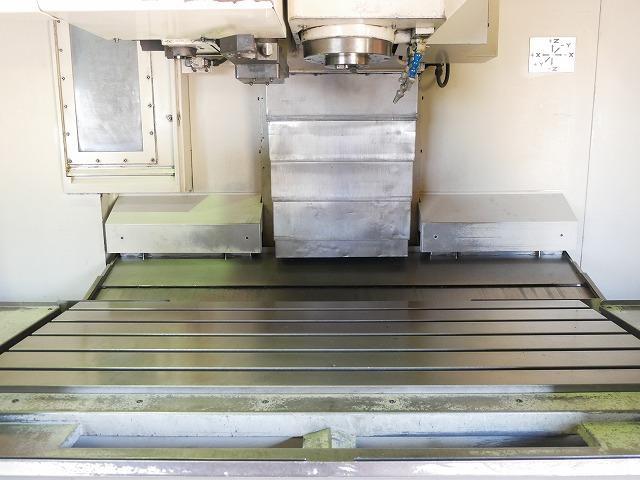

◆Table dimensions (working area): 1,400 * 610mm
◆Table load capacity: 1,500 kg
◆Left-right (X-axis) travel distance: 1,100mm
◆Front-back (Y-axis) travel distance: 610 mm
◆Up-down (Z-axis) travel distance: 560 mm
◆Spindle end to table top: 200 to 760 mm
◆Spindle center to column front: 650 mm
◆Rapid traverse rate: 20,000 ( X, Y) 16,000 (Z) mm/min
◆Cutting Feed Rate: F4 digit 0.1 to 5,000, F1 digit 10 to 2,000 mm/min
◆Spindle Bore Taper: No. 50
◆Spindle Speed (S4 digit direct specification): 20 to 4,000min-1
◆Gear Shift: Automatic, 2-speed
◆Spindle Motor: VAC 11/15 kW
◆Feed Motor (X*Y*Z): 4*4*4 kW

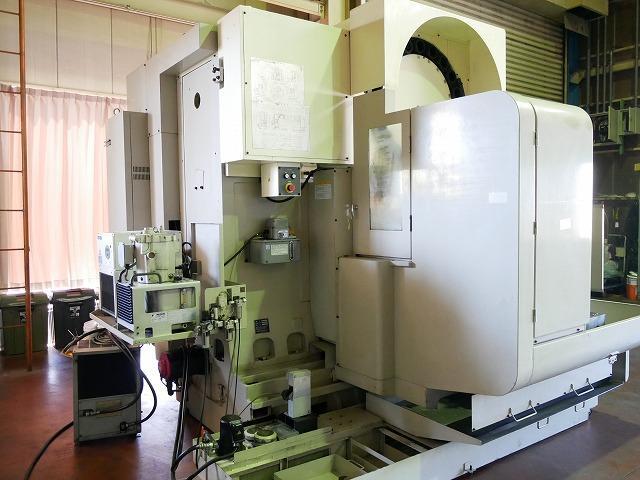

◆Hydraulic Unit Motor: 2.2 kW
◆Hydraulic Unit Knit tank capacity: 10 liters
◆Spindle cooling oil circulation pump motor: 200W
◆Spindle cooling oil tank capacity: 15 liters

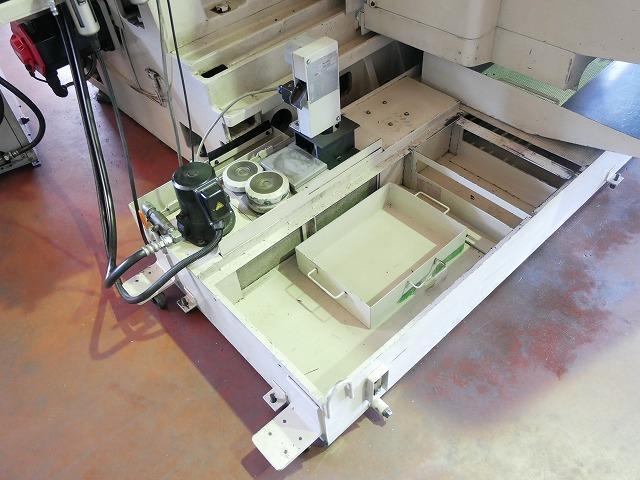

◆Slideway lubrication motor: 17W
◆Slideway lubrication tank capacity: 6 liters
◆Cutting oil pump motor: 180W
◆Cutting oil tank capacity: 300 liters
◆Floor to table top: 900 mm
◆Total machine height: 2,785 mm
◆Required floor space (side to side): 3,350 * 3,385mm
◆ Machine Weight: 8,800 (9,300) kg
◆Maximum Power Consumption: 39 kVA
◆Tool Shank: MAS403-BT50
◆Tool Pull Stud: MAS407-P50T-II
◆Tool Selection Method: Random Memory
◆Maximum Tool Diameter (with adjacent tools): Φ120 mm
◆Maximum Tool Diameter (without adjacent tools): Φ150 mm
◆Maximum Tool Length: 400 mm
◆Maximum Tool Weight: 20 kg

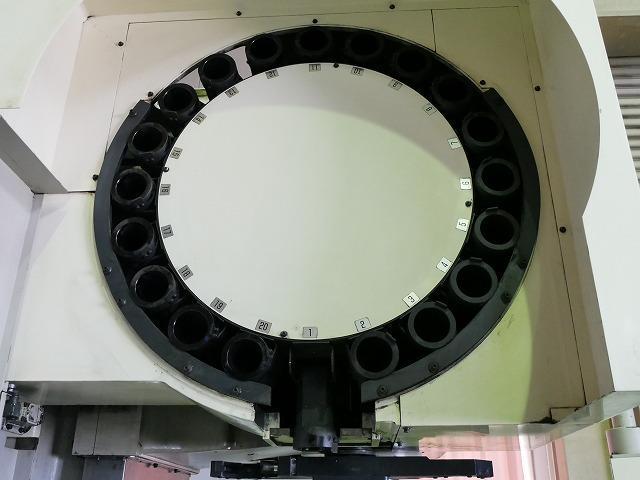

◆Number of Tools in Magazine: 20
◆Tool Change Time (TOOL to TOOL): 2.5 seconds
◆Tool Change Time (CHIP to CHIP): 7 seconds
◆Magazine Rotation Drive Motor: 800 W
◆ATC Arm Drive Motor: 750 W
✤In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
