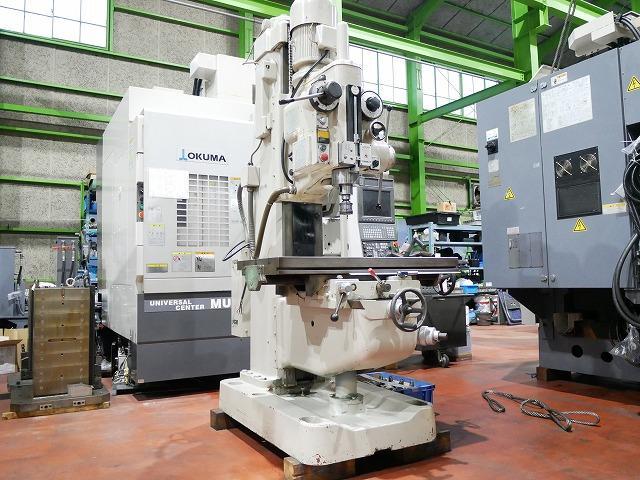

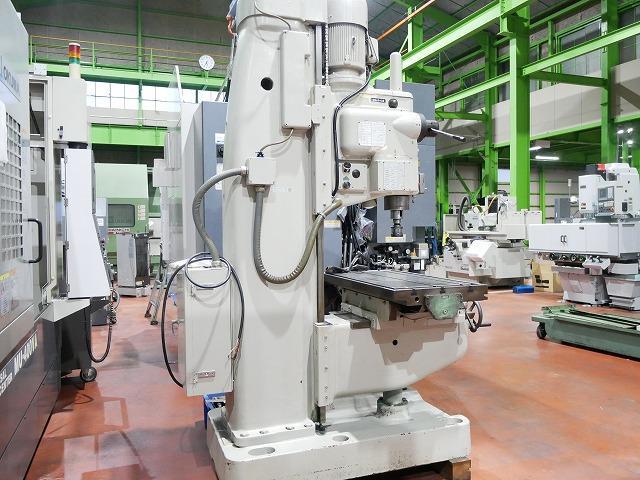

940mm Upright Drill

Access: 11

Print FAX PAPER

STOCK CODE

20502023
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

18095

MANUFACTURER

YOSHIDA TEKKO

MODEL

YD5-94CTN

YEAR

PRICE

SPECIFICATION

◆Maximum swing: 940mm ◆Drilling capacity (S45): 60mm ◆Tapping capacity (S45): M48 ◆Bore capacity: 120mm ◆Distance from table top to spindle end: 750~0mm ◆Spindle vertical travel: 250mm (manual/automatic) ◆Spindle head vertical travel: 300mm ◆Spindle bore taper: M.T.No5 ◆Spindle speed range (60Hz): 50~1200 　　　　　　　　　 (50Hz): 41~1000 ◆Feed rate: 0.05~0.4 ◆Table working surface size: 500mm*1000mm ◆Table travel (vertical): 290mm 　　　　　　 (front/back): 300mm 　　　　　　(Left and right): 600mm ◆ Required floor space (width*depth): 817*1610mm ◆ Machine height: 2665mm ◆ Installed motor (for spindle): 3.7kW-6P 　 (for lifting): 0.75kW-4P ◆ Net weight: 1600kg ✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
