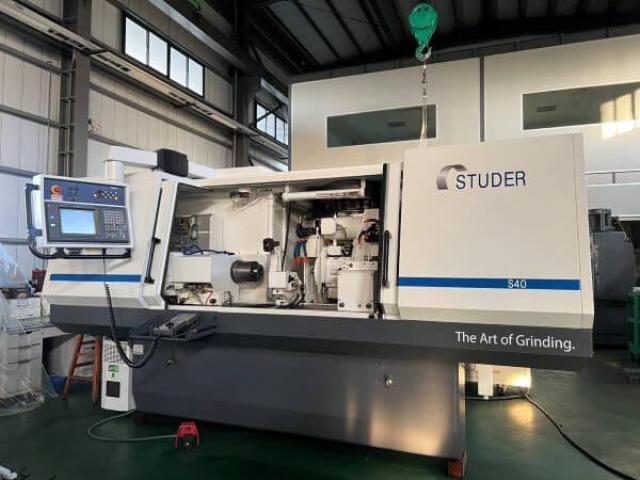

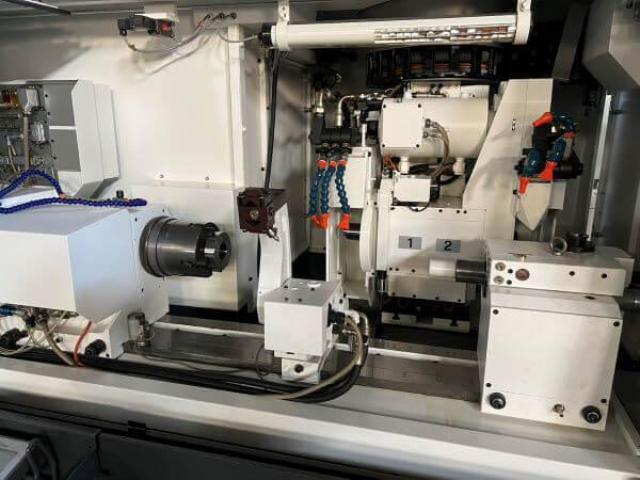

CNC Universal cylindrical grinding machine (for external and internal grinding)
Centre height 175、centre distance 1000、table max travel 1050、max swivel of table 8.5°、
wheel head slide max travel 275、grinding wheel dia×width×bore：left 400×80×127、
right：400×40×127、wheef sprindle main motor 7.5KW、speed 1670~2110rpm、
workhead：speed vange30~750rpm、TAPER MT5、Universal work head swing range 0~90°、
power requirement spindle 3KW、tailstock：fitting taper MT3、travel of bavr35mm、
control FANUC 16GC、total power 30KW、weight 5.1TON
This is Ryokuta Machinery from Taiwan. We have been in used machine tools for 40 years. Our stock of 95% machines are imported from Japan and exported Taiwanese-made machines to Japan and Korea.
