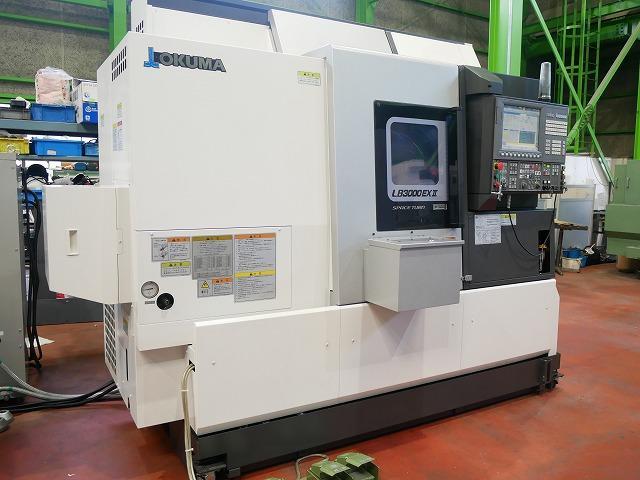

CNC Lathe

Access: 5

Print FAX PAPER

STOCK CODE

20102104
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

18042

MANUFACTURER

OKUMA

MODEL

LB-3000EXⅡ

YEAR

2022

PRICE

SPECIFICATION

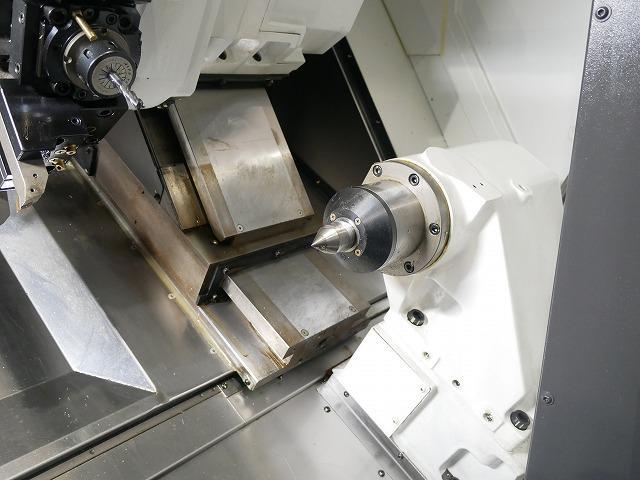

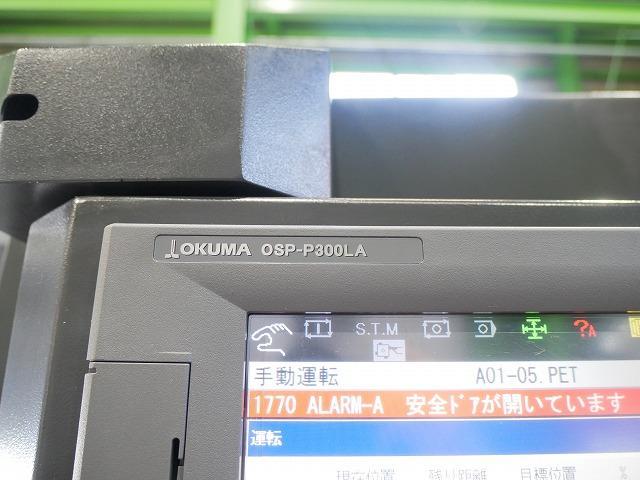

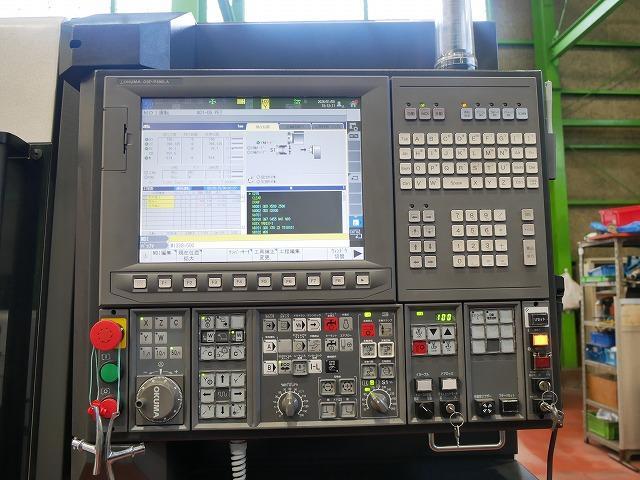

◆Controller: OSP-P300LA ◆Number of Controlled Axes: 4 ◆Bed Swing: Φ580mm ◆Carriage Swing: Φ470mm ◆Center Distance: 470mm ◆Maximum Machining Diameter*Length: Φ340*450mm ◆Spindle Diameter: Φ120mm ◆Tapered Hole: Φ82mm*2° ◆Through Hole Diameter: Φ80mm ◆Rotation Speed: 45~5,000min-1 ◆Carriage (Z-axis) Travel: 510mm ◆Slide (X-axis) Travel: 260 (90+170)mm ◆Y-Axis Travel: 120 (+ 70/-50) mm ◆ Turret: V12 ◆ Rotary tool RPM: 45-6,000 min-1 ◆ C-axis control angle: 360° ◆ Tailstock spindle tapered hole: MT. No. 5 ◆ Tailstock travel: 515 mm ◆ Large diameter spindle: 42-4,200 min-1 ◆ Built-in tailstock: MT. No. 4 ✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.

LINK URL

https://k-smk.co.jp/en/machines/20102104/

LOCATION

Mie

LOCATION DETAIL

SELLER COMPANY

Shinmeiwa Kiko Co.,Ltd

SELLER PROFILE

Shinmeiwa Kiko Co.,Ltd

See Product Inventory of this company＞

ADDRESS

3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011

CEO NAME

CONTACT PERSON

Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita

TEL1

81-59-361-5505

TEL2

CELLPHONE

FAX

81-59-364-8737

BUSINESS HOURS

HOLIDAY

COMPANY DESCRIPTION

New & Used Machine tool,Press, Tools

INQIRY FORMContact By EmailMACHINE SPECIALTY

Machine Tools,Measuring / Testing,Presses,Sheet Metal

SITE URL

https://k-smk.co.jp/en/

COMPANY TYPE

Used Machine Dealer
