MITSUBISHI ELECTRIC

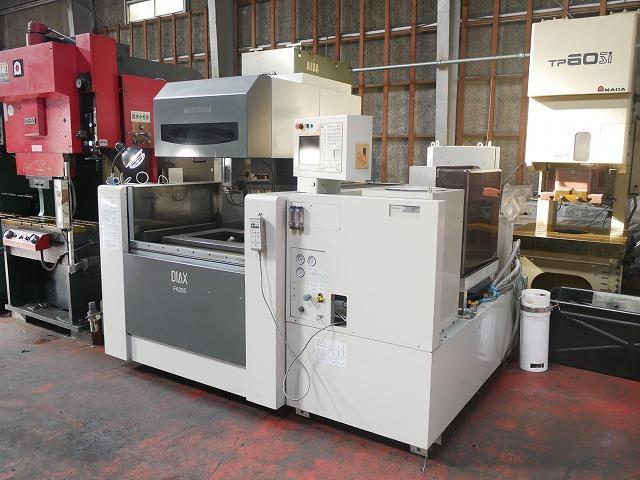

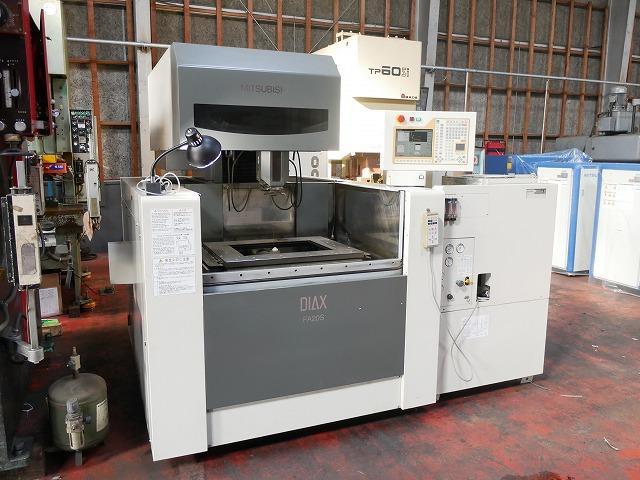

FA20S

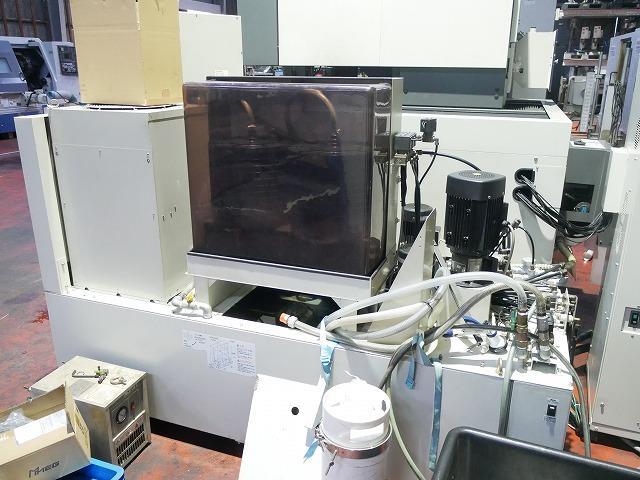

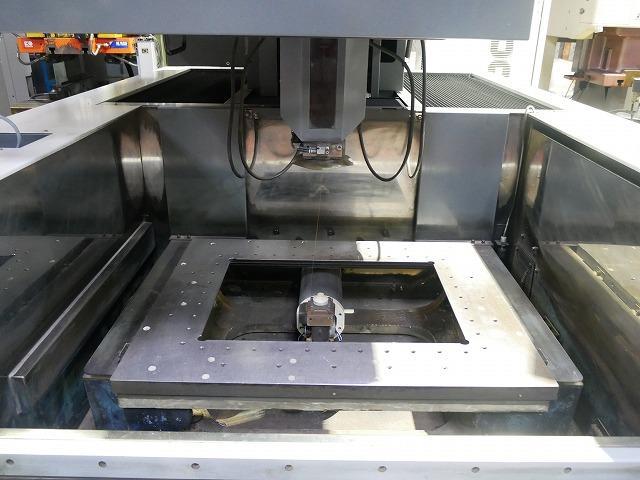

◆Maximum workpiece dimensions (W * D * H): 1050 * 800 * 295 mm ◆Maximum workpiece weight: 1500 kg ◆Table dimensions: 780 * 630 mm ◆Axis travel (X * Y * Z): 500 * 350 * 300 mm ◆Table rapid feed speed: 1300 mm/min ◆Wire electrode diameter: 0.1 to 0.3 mm ◆Tapering device: Standard device ◆Axis travel (U * V): ±75 * ±75 mm ◆Maximum taper angle: 15° (for a plate thickness of 260 mm) (Note: This appears to be an error and should be omitted.) ◆Machine dimensions (W * D * H): 2013 * 2632 * 2100 mm ◆Weight: 3500 kg ◆Cutting fluid tank capacity: 740 L ◆Cutting fluid tank dimensions(W * D * H): 880 * 2085 * 1490 mm ◆Power supply unit (WFAS) ◆Power supply circuit: Transistor pulse circuit (stabilization circuit, AVR built-in) ◆Power supply dimensions (W * D * H): 550 * 600 * 1650 mm ✤In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.

2.13*2.632*2.1
