SPECIFICATION | ◆Swing above bed: 510
◆Swing above cross slide: 300
◆Bar cutting diameter: 52
◆Maximum distance between centers: 1000
◆Swing above cut-off: 710
◆Spindle end type: A1-6"
◆Spindle through-hole diameter: 52
◆Center taper: No. 4
◆Number of speed changes: 12
◆Speed range: 25, 36, 53, 70, 100, 145, 265, 380, 555, 715, 1020, 1500

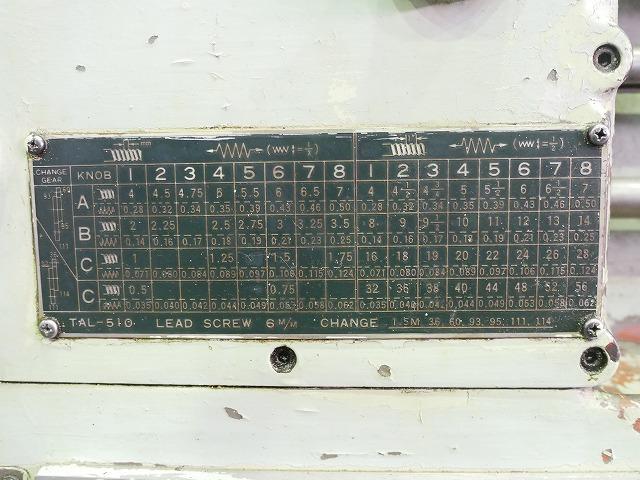

◆Inch thread type: 32
◆Inch thread range: 4-56
◆Metric thread Type: 21
◆Metric thread range: 0.5-7
◆Number of automatic feed conversions: 32
◆Vertical feed: 0.035-0.5
◆Lateral feed: 1/2 the vertical feed
◆Lead screw diameter: 35
◆Length on bed: 590
◆Cross feed table dimensions: W215, L680, D47
◆Maximum cross feed table travel: 285
◆Maximum tool feed table travel: 145
◆Tool dimensions: 25＊25

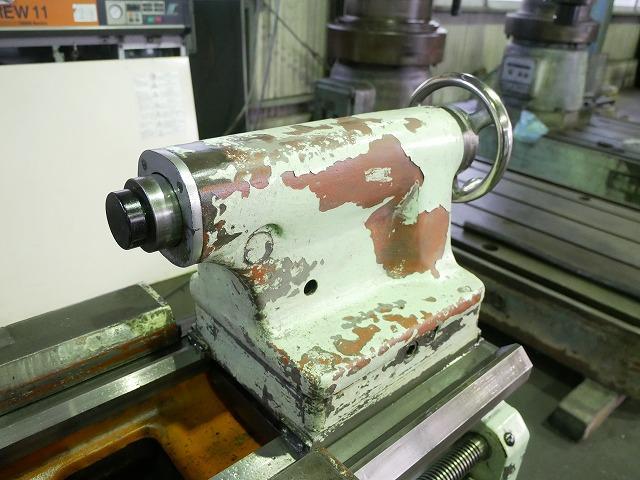

◆Tailstock diameter: 65
◆Tailstock tapered hole: No. 4
◆Maximum tailstock travel: 150
◆Bed Width: 370
◆Bed Depth: 340
◆Bed Length: 2170, 2680
◆Motor: 5.5
◆Floor Space Required: W1028＊2468, L2978
◆Height: 1251
◆Net Weight: 2300
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
