STOCK CODE				CONTACT SELLER This product is sold by AK Technos Co.Ltd. By PHONE By EMAIL
MACHINE ID	17937
MANUFACTURER	YAMAZAKI MAZAK
MODEL	QTN-200×500U
YEAR	2003
PRICE

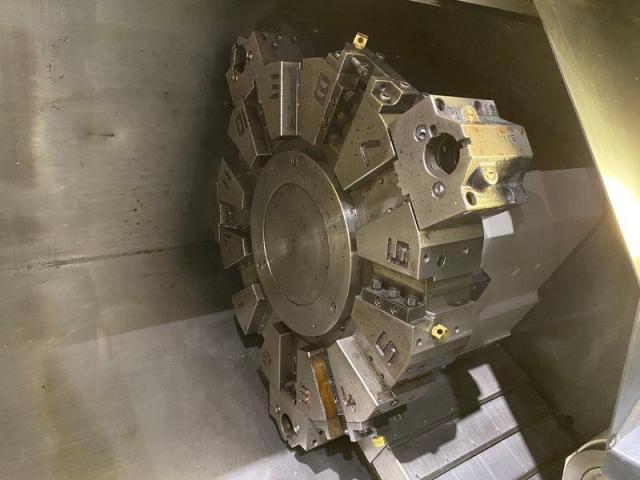

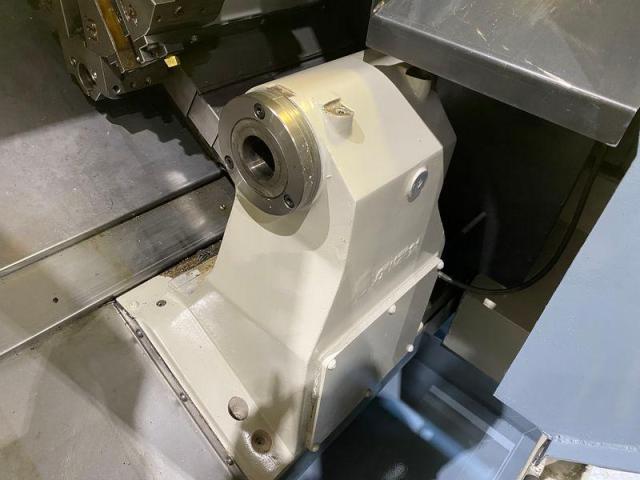

SPECIFICATION	Control : MAZATROL 640T NEXUS Swing on bed: φ610 mm Swing over cross slide: φ350 mm Max. work diameter : 350 mm Max. work length : 514 mm Maximum load capacity: chuck 300 kg center 700 kg 　　　　　 Travel X : 190 Z : 535 mm Spindle speed : 4,200rpm Through-spindle hole diameter : φ76 mm Tarret : 12 stations Travel of tail stock : 550 mm Tapered hole: MT NO.5 　　　　　 Required floor surface : 2,200 x 1,780 mm 　　　　　 Machine height : 1,840 mm Machine weight : 4,900 kg 2025: Spindle replaced with new one 　　　　 10-inch hollow hydraulic chuck (Kitagawa B-210) 　　　　 Chuck cylinder (S1875-5Y) Tool Eye 150-liter coolant system
LINK URL	https://www.ak-t.co.jp/en/inventory/index_1009.html
LOCATION	Osaka
LOCATION DETAIL	1-2 Shinjo-Nishi, Higashi-Osaka, Osaka, Japan
SELLER COMPANY	AK Technos Co.Ltd

ADDRESS	2-3-28 Honjonaka Higashiosaka-city, Osaka, Japan, 578-0957
CEO NAME		CONTACT PERSON	Shimizu
TEL1	81-6-6747-8845	TEL2
CELLPHONE		FAX	81-6-6747-8846
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	Machine tool, Press, Sheet metal machine, Structural steel machine, measuring device Note: Due to the extremely difficult export conditions to the areas located west of Myanmar include Middle East, under the trade control of the Japanese government, sales to these areas are STOPPED. Please note that we will NOT reply to any inquiries from those countries.
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	http://www.ak-t.co.jp	COMPANY TYPE	Used Machine Dealer,Machine & Equip. Trader
