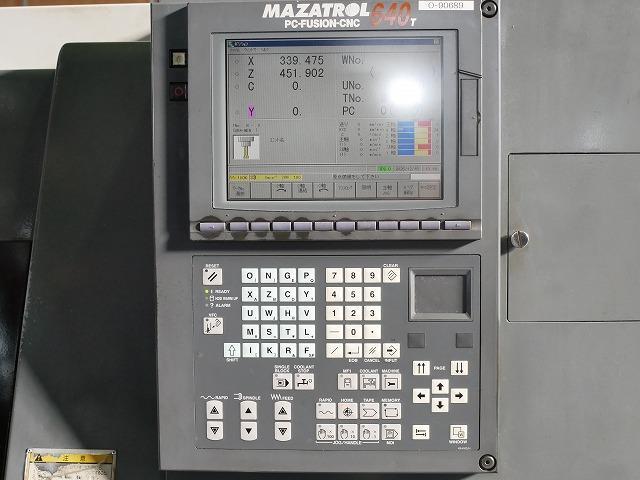

SPECIFICATION | ◆Controller: Mazatroll 640T

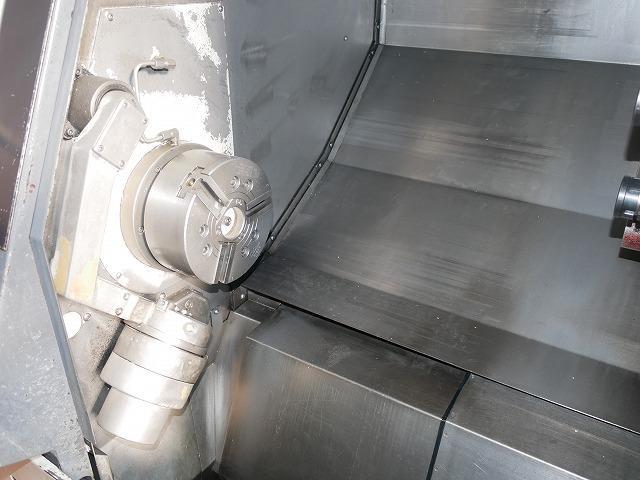

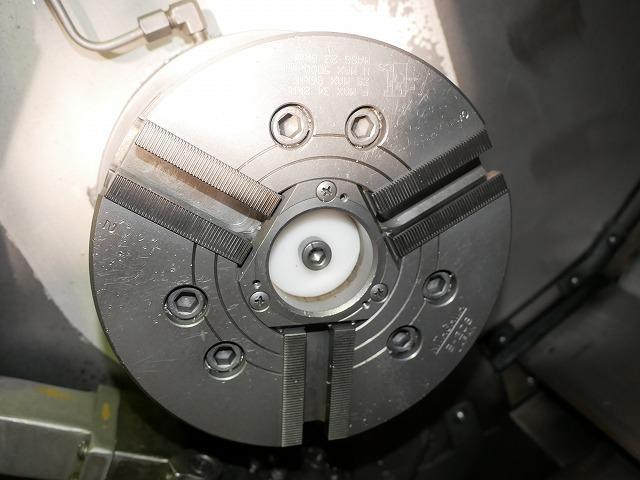

◆Chuck size: 8 inches
◆Maximum swing: φ525
◆Standard machining diameter: φ276
◆Maximum machining diameter: φ300
◆Bar work capacity: φ51
◆Distance between spindle end and tool post end face: 135-710 mm
◆Spindle rotation speed: 350-4500 min-1
◆Acceleration/deceleration time: 2.5 seconds
◆Through-spindle hole Diameter: φ61mm
◆Motor output (30-minute rating): 15kW
◆Maximum torque: 333

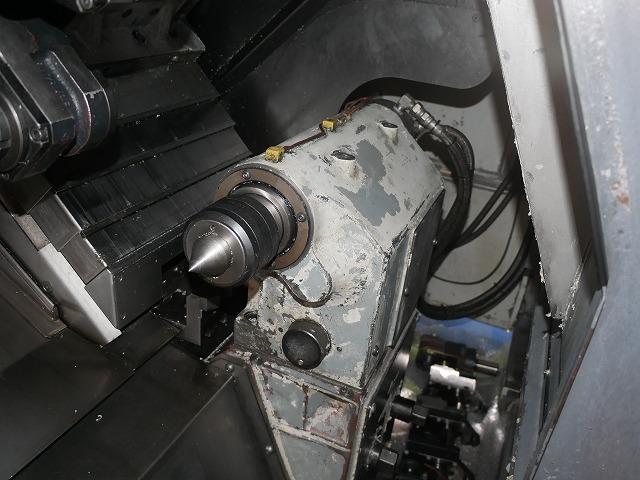

◆Tailstock bore type: 5MT
◆Travel (tailstock/tailstock shaft): 400/150mm
◆Maximum thrust: 6867N

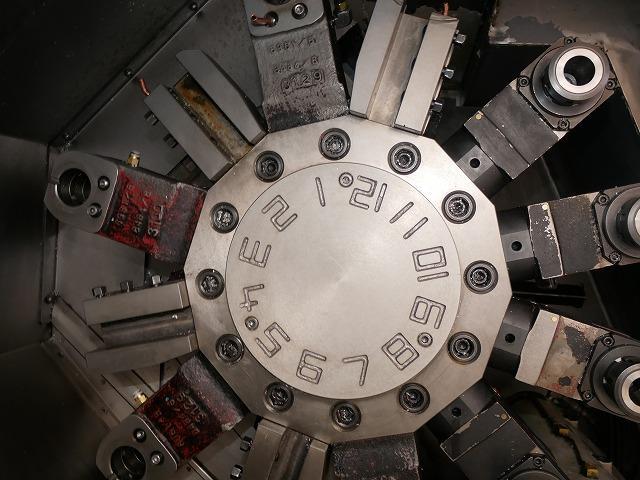

◆Number of tools: 12
◆Tool size, external turning: □25
◆Tool size, internal turning: φ40
◆Tool size, rotary drill: MAX φ20
◆Tool Size: Rotary Tap MAX M12
◆Tool Size: Rotary End Mill MAX φ20
◆Indexing Time: 0.2/0.6 sec
◆Mill Spindle Speed: 25-4500 min-1
◆Mill Spindle Motor Output (10-minute Rating): 3.7 kW
◆Maximum Mill Spindle Torque: 3.6 (2.4 for 6000 spec)
◆Rapid Traverse Rate: X30/Z30/Y12 m/min
◆Rapid Traverse Rate: C400 min-1
◆Travel Distance: X180 * Z575 * Y100
✤If there is a difference between the specifications and the actual product, the actual product will take precedence. |
|---|
