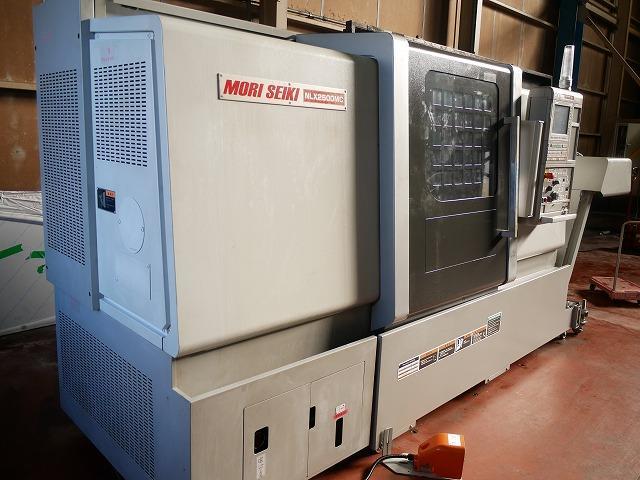

MORI SEIKI NLX2500MC/700 CNC Lathe for Sale [17891] | USED MACHINERY.BZ

HOME
Select Machine Name
CNC Lathes
CNC Lathe

CNC Lathe

Access: 26

STOCK CODE	20101101			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	17891
MANUFACTURER	MORI SEIKI
MODEL	NLX2500MC/700
YEAR	2012
PRICE
SPECIFICATION	◆Controller: M730BM ◆Swing above bed: 787mm (Interference with front cover: 544) ◆Swing above cross slide: 541mm ◆Maximum machining diameter: 366mm ◆Standard machining diameter: 271mm ◆Maximum machining length: 705mm ◆Bar work capacity: 80mm ◆Travel: X260*Z795mm ◆Spindle rotation speed: 4000min-1 ◆Spindle speed range: 2 levels (winding switchable) ◆Spindle tip: JIS A2-8 ◆Spindle Through-hole Diameter: 91mm ◆Spindle Bearing Inner Diameter: 140mm ◆Turret Rotary Tool Axis Speed: 6000min-1 ◆Rapid Feed Rate 　X, Z: 30000mm/min 　Tailstock: 20000mm/min (Retract), 7000mm/min (Extend) ◆Tailstock Travel: 734mm ◆Tailstock Spindle Tapered Hole Type: MT5 (Live Center) ✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
SIZE	H1.9×W3.38×D1.98
WEIGHT	5.5
LINK URL	https://k-smk.co.jp/en/machines/20101101/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Fujio / Ms.Tsuji / Ms.Matsuzaki（Chinese）
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
