High-speed Machining Center
Access: 38
STOCK CODE | 90066 | |||
|---|---|---|---|---|
MACHINE ID | 17885 | |||
MANUFACTURER | CHIRON | |||

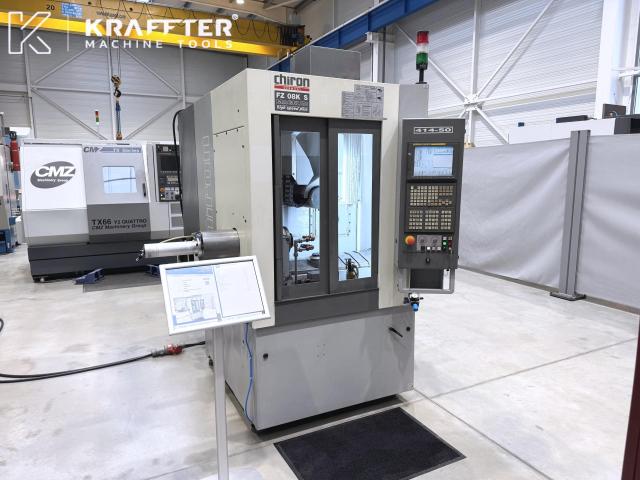

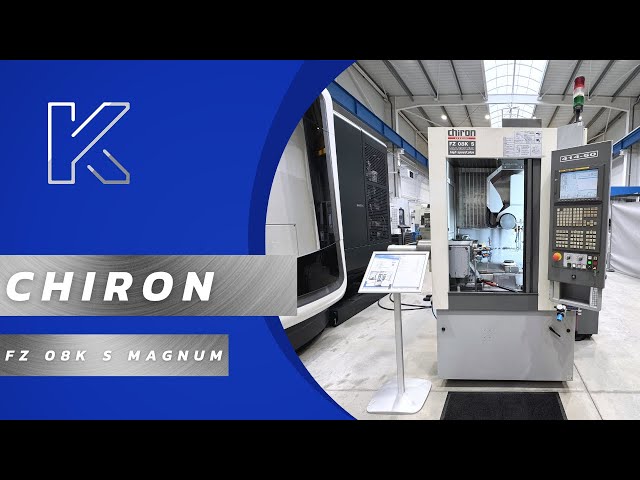

MODEL | FZ 08K S Magnum High Speed Plus (HSP) | |||
YEAR | 2006 | |||
PRICE | ||||

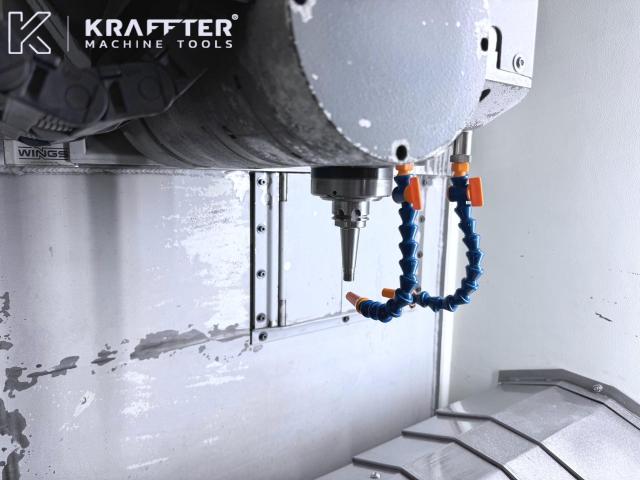

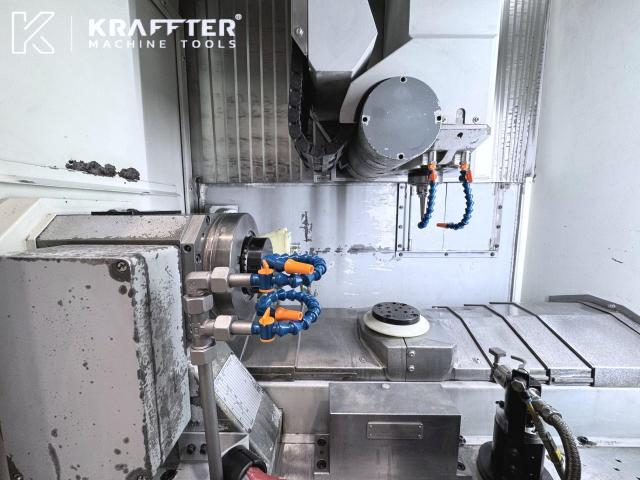

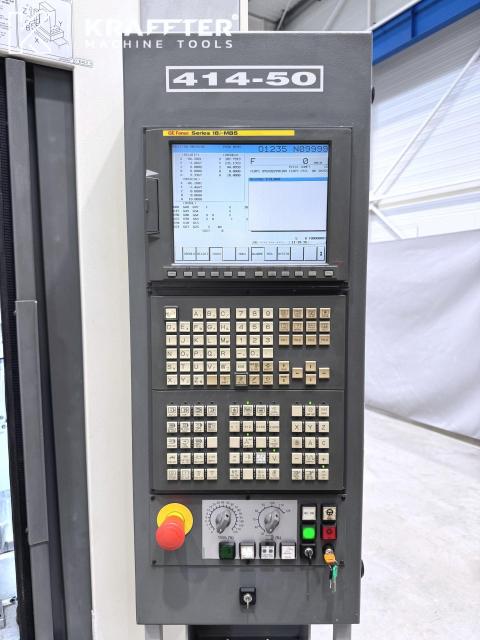

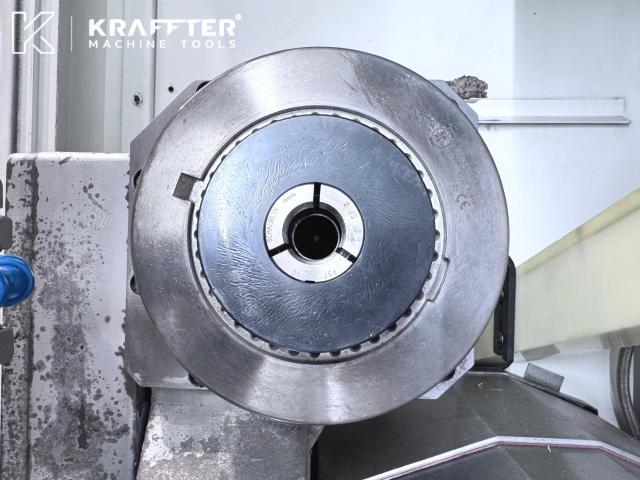

SPECIFICATION | CNC Machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine. | |||
CONDITION | Fully functional | |||
SIZE | 1500 x 2600 x 2300 [mm] | |||
WEIGHT | 3400 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/164/chiron-fz-08k-s-magnum-high-speed-plus/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
