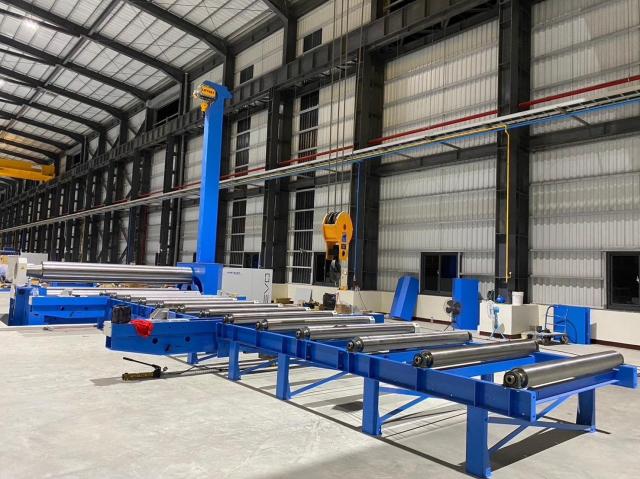

SPECIFICATION | Year: 2024
Model: EVO 42196
Surface lengths of rolls: 4,200mm
Pre-bending capacity at 5 x top roll diameter and yield point 260 N/mm2: 34mm
Rounding capacity at 5 x top roll diameter and yield point 260 N/mm2: 38mm
Top roll dia.: 540mm
Bottom roll dia.: 500mm
Side rolls dia.: 365mm
Smallest possible bending diameter with top roll Ø540mm: 595mm (depending on springback)
Smallest possible bending diameter with interchangeable top roll Ø370mm: 410mm (depending on springback)
Number of rolls: 4
Bearing of rolls: Self-aligning roller bearings
Max. cylinder force against top roll: 3,245kN
Material of rolls: 42CrMo4 (1.7225)
Driven rolls in standard execution: 1 (Top roll)
Driven rolls (optional): 2 (Top and bottom roll)
Roll drive: E-motor with planetary gear box (Efficiency > 90%)
Operating speed: 0-8 m/min, stepless adjustable
Speed compensation between top and bottom roll: automatic, if the option two rolls drive is selected
Adjustment of rolls: hydraulic
Tilting of bottom and both side rolls for cone bending: Stepless from mobile control panel
Installed electrical power (with all possible optional items): 55kW
Power supply (in standard execution): 400V/60Hz/3 Phases
Ambient temperature (in advanced execution): 0 ﾟC- 45 ﾟC
Overall dimension (LXWXH) approx.. (without optional items): 7,460x2,060x2,390mm
Total weight (without optional items): 35,060kg |
|---|
