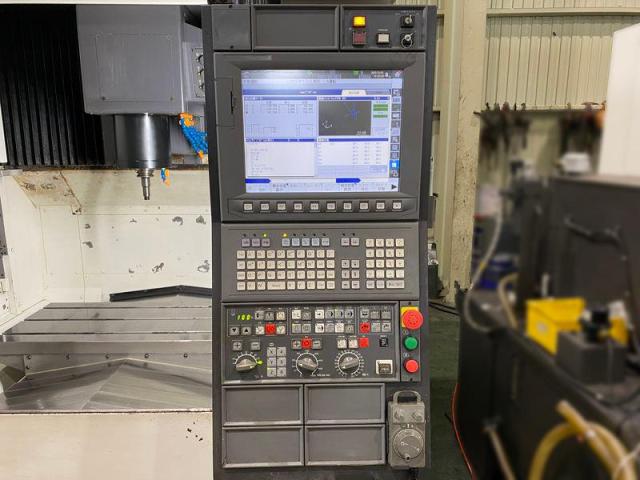

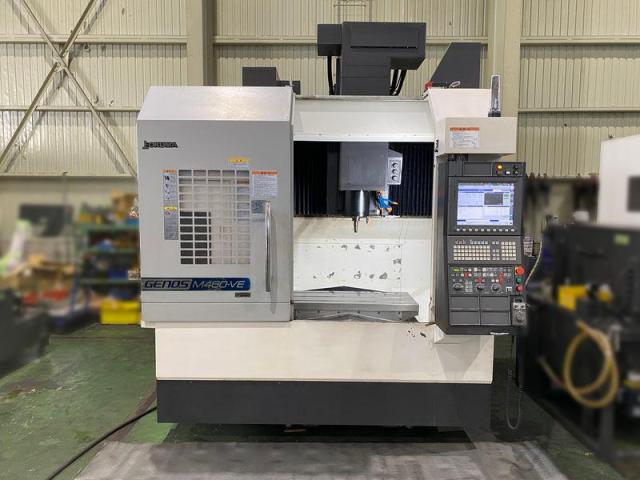

SPECIFICATION | Controller : OSP-P300M

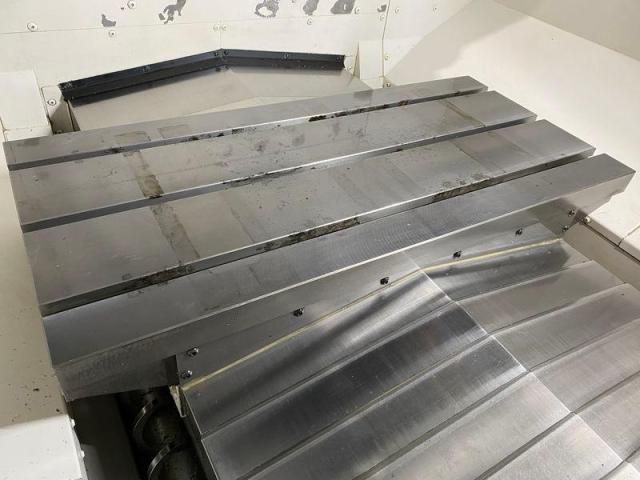

Table size: 1,000 x 460 mm
Maximum load capacity: 700 kg
Travel : X: 762 mm, Y: 460 mm, Z: 460 mm
Distance between table and spindle nose : 150～610 mm

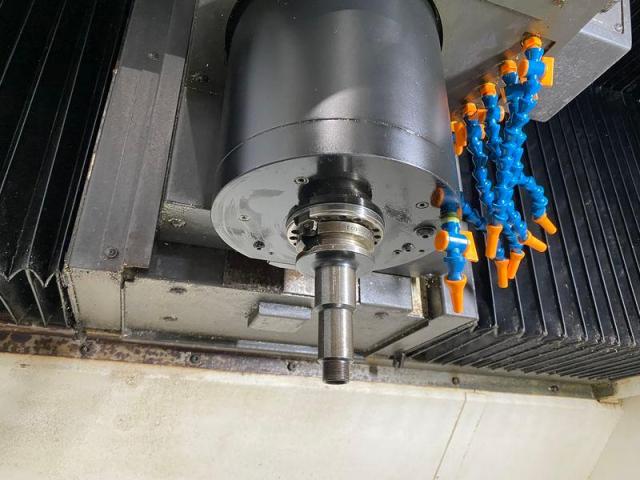

Spindle taper: BT40 (MAS-I)
Spindle speed : 50～15,000 rpm

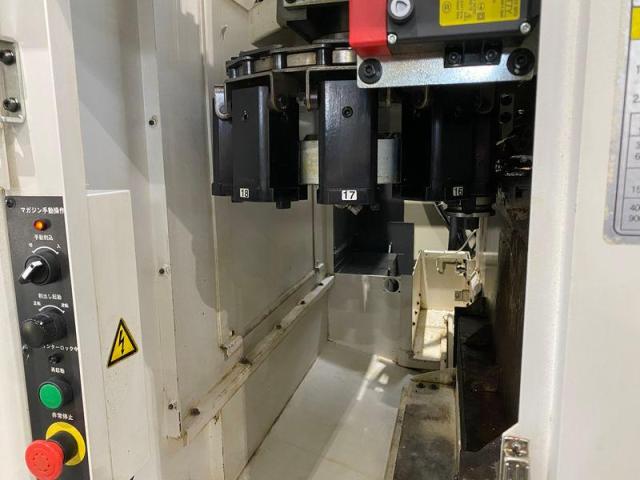

ATC : 20 stations
Required Floor space : 2,210 x 2,810 mm
Machine height : 2,746 mm
Machine weight : 6,300 kg
Two internal coil conveyors (left and right, rear-mounted)
Cutting oil system (no chip conveyor)
Cutting fluid cooling system (separate)
One-way positioning
OSP suite
Helical cutting
Arbitrary angle chamfering |
|---|
