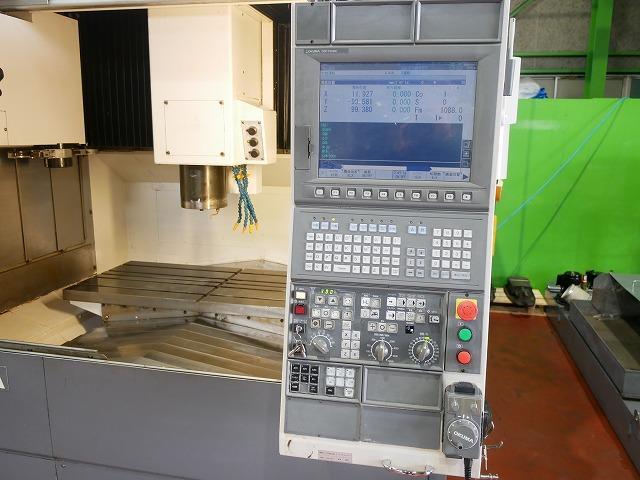

SPECIFICATION | ◆Controller: OSP-P200M
◆Power Supply: 200V
◆Frequency: 60Hz
◆Travel Range (XYZ): 1050＊560＊460
◆Table Top to Spindle Nose: 150 - 610
◆Column Front to Spindle Center: 720
◆Working Surface Size: 560＊1300

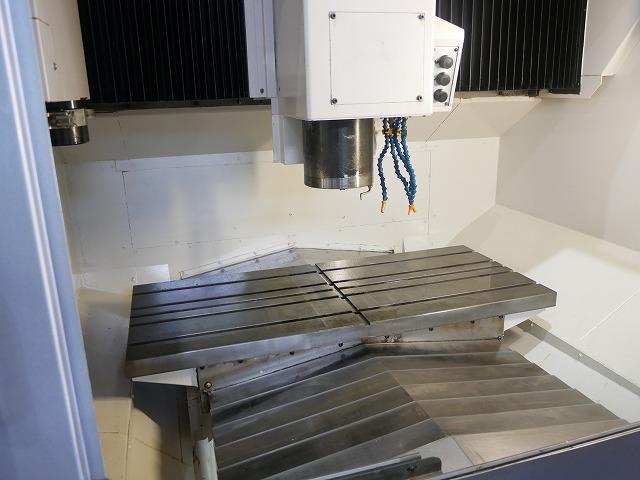

◆Table Size: 560＊1300
◆Table Top Shape: 18T Slots＊4
◆Maximum Load Capacity: 900
◆Rapid Traverse Rate (XYZ): 40, 40, 320
◆Cutting Feed Rate (XYZ): 32
◆Spindle Speed: 50 - 15,000 min-1

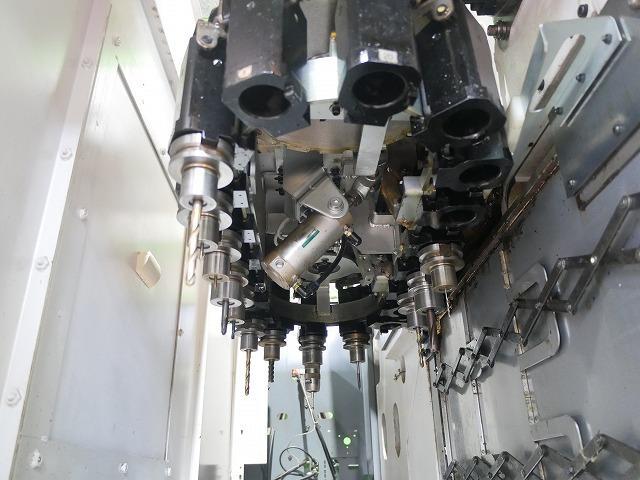

◆ATC Tool Storage Capacity: 20 (Standard)

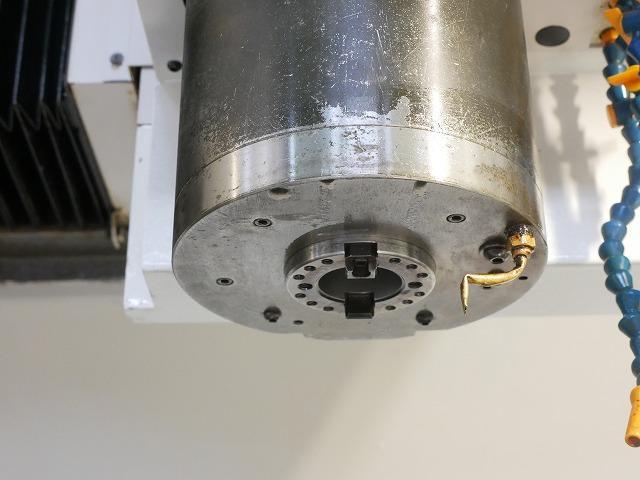

◆Tool Shank Shape: BT40
◆Pull Stud Bolt: MAS 2
◆Tool Storage Capacity: 20
◆Maximum Tool Diameter: Φ90/Φ125
◆Maximum Tool Length/Weight: 300/8
◆Tool Selection Method: Random Memory
◆Chip Washing Device

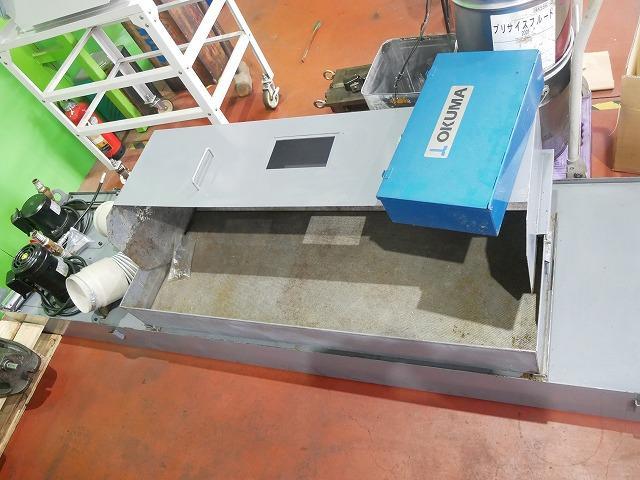

◆Chip Tray

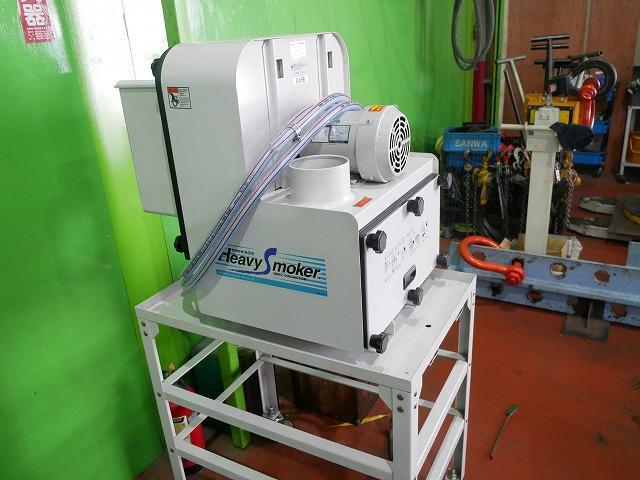

◆Mist Collector: Akamatsu HVS-100
◆Required Floor Space: 2470＊3000
◆Machine Height: 2750
◆Machine Weight: 7500
※Chip Conveyor Not Included
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
