DMG MORI

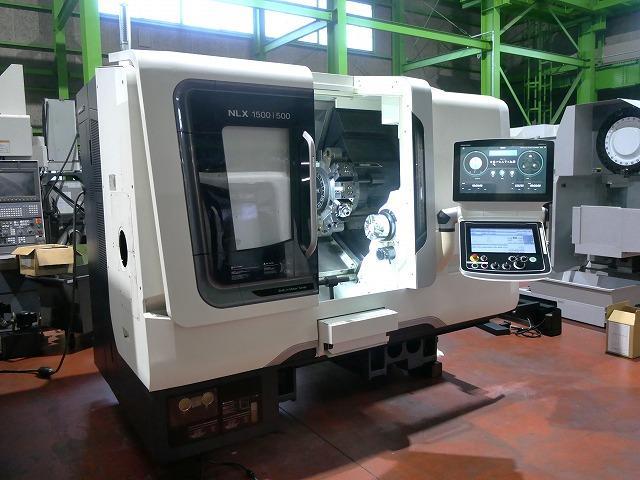

NLX1500SY/500

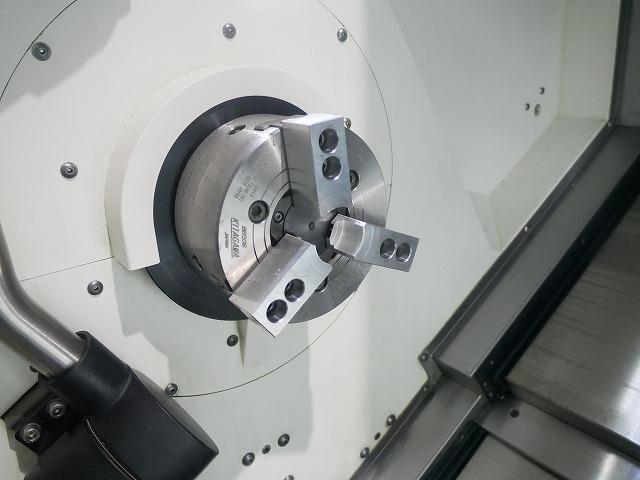

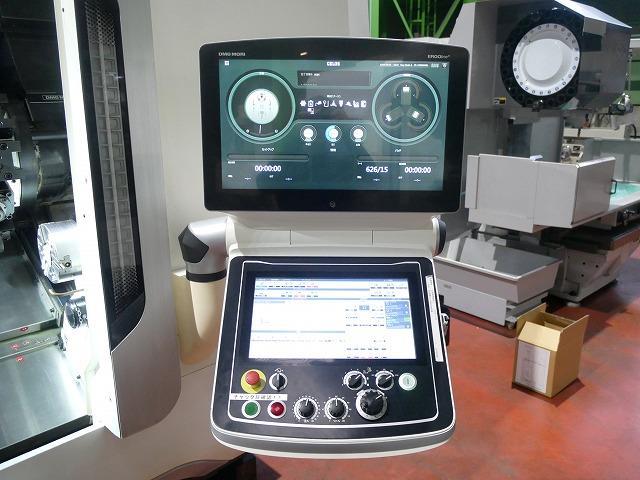

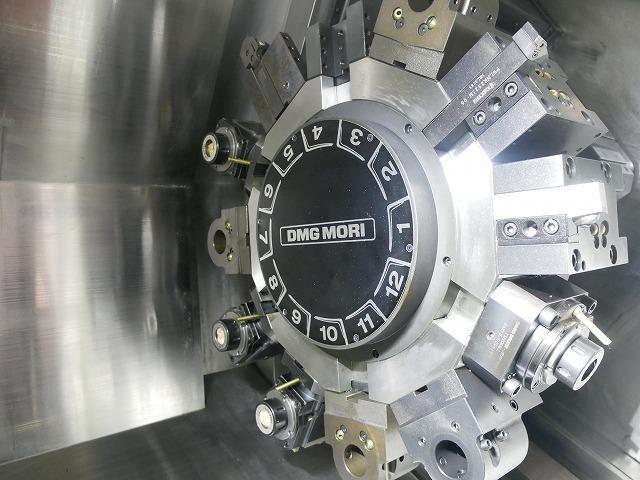

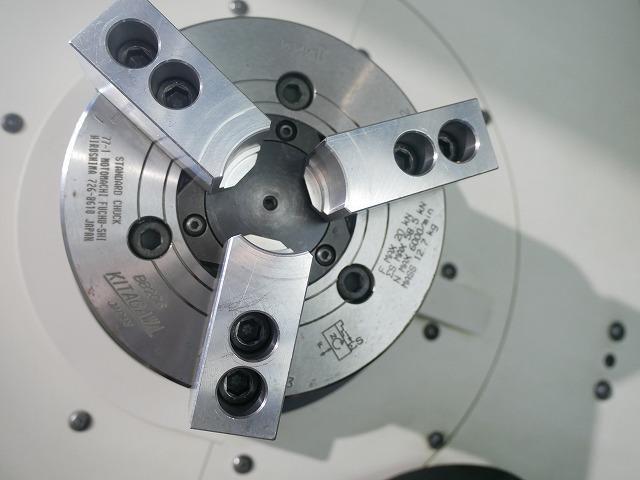

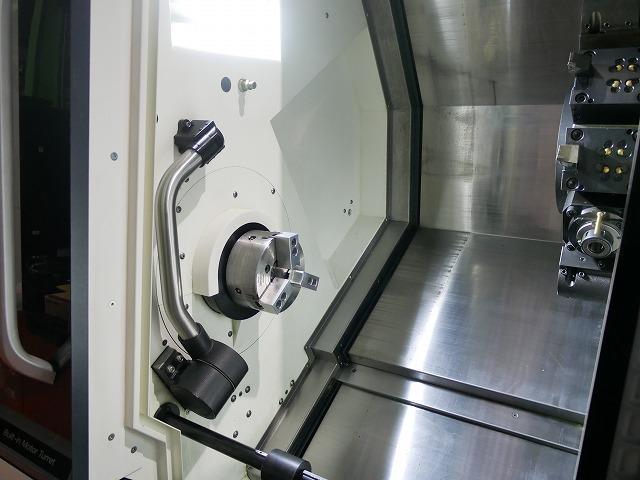

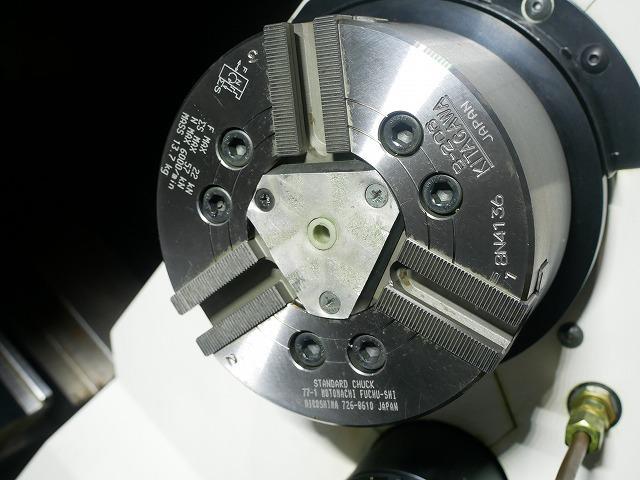

◆Controller: Mitsubishi M-730UM ◆Operation Panel Type: ERGO line Touch (21.5 + 15.6) ◆Spindle Speed: 6000 min-1 ◆Spindle Through-hole Diameter: Φ61 mm ◆Spindle Chuck Type: Kitagawa Hollow 6-inch BB-206 ◆Spindle Orientation: Yes (No Lock) ◆Spindle Rigid Type: Yes ◆Spindle Air Purge: Yes ◆Spindle Output: Standard (11/7.5 kW) ◆Spindle Speed: 6000 min-1 ◆Spindle Through-hole Diameter: Φ43 mm ◆Spindle Chuck Type: Kitagawa Hollow 6-inch B-206 ◆Spindle 2 Chuck Cylinder Type: Solid 6-inch ◆Spindle 2 Chuck Cylinder Manufacturer: Toyowa ◆Spindle 2 Chuck Cylinder Stroke Check: Stroke End Detection ◆Turret Y-Axis: Yes ◆Turret Shape: 12-Point ◆Turret Measuring Function: Yes ◆Turret Rotary Tool Spindle Output: Standard ◆Turret Rotary Tool Spindle Speed: 10,000 min-1 ◆Turret Rotary Tool Spindle Torque: Standard ◆Turret Tool Mounting Method: Bolt Fastening ◆Turret External Rotary Tool Overhang: 100 mm (Y-axis stroke limited) ◆Turret Manufacturer: In-house ◆Chip Conveyor: Yes ◆Spindle 1 In-Machine Tool Presetter: Manual (Lifting) ◆Spindle 2 In-Machine Tool Presetter: Manual (Detachable) ◆Bar feeder: Alps ASR X-45/51PN2 ✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
