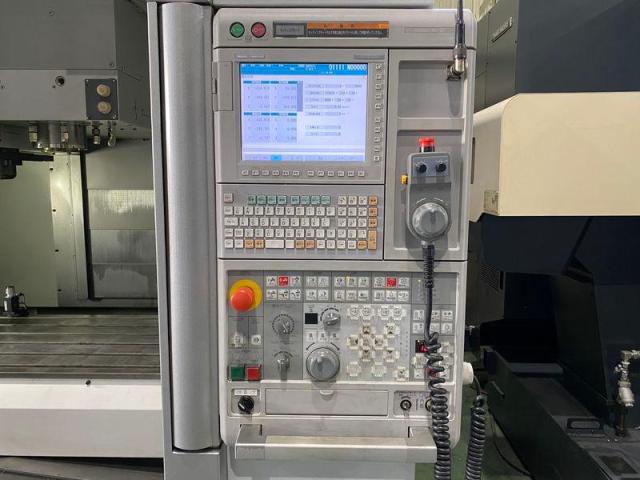

SPECIFICATION | Control : MELDAS M730BM

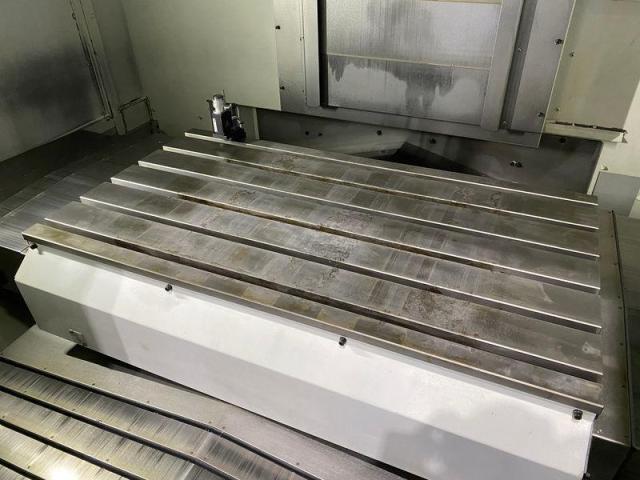

Table size : 1,100 x 600 mm
Max. load capacity : 1,000 kg
Travel X : 800 Y : 530 Z : 510 mm
Distance from spindle end to nose : 150～660 mm

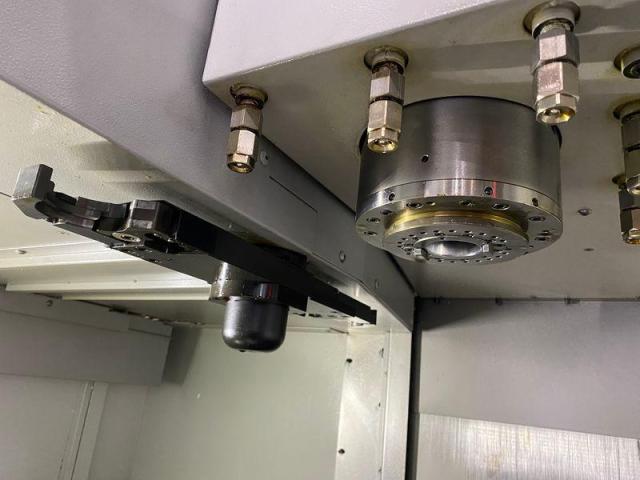

Spindle speed : 13,000 rpm
Tool shank : BBT40 (BIG Plus) MAS1
ATC : 30 stations
Required floor space : 3,314×3,613 mm
Machine height : 2,597 mm
Machine weight : 6,400 kg
In-machine coil conveyors (two, left and right)
Scraper-type chip conveyor (rear discharge, left)
Tool length compensation and tool breakage detection
Touch sensor (Renishaw OMP60)
MAPPS IV
Program memory capacity: 600m
Number of registered programs: 400
Custom macro common variables: 200
Coordinate rotation
Relocation detection function |
|---|
