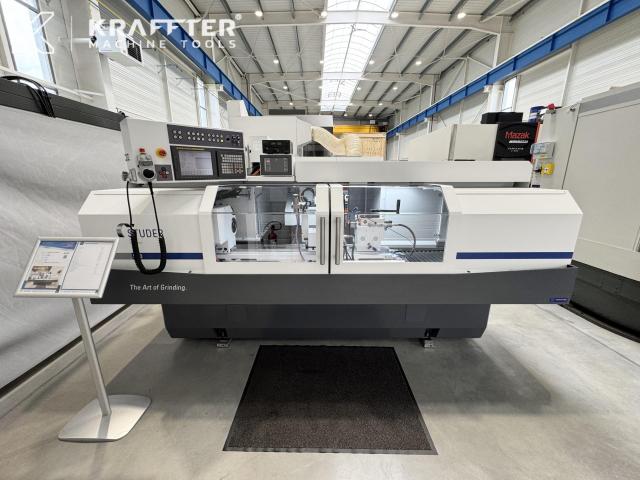

CNC Cylindrical Grinder
Access: 202
STOCK CODE | 90149 | |||
|---|---|---|---|---|
MACHINE ID | 17573 | |||
MANUFACTURER | FRITZ STUDER AG | |||

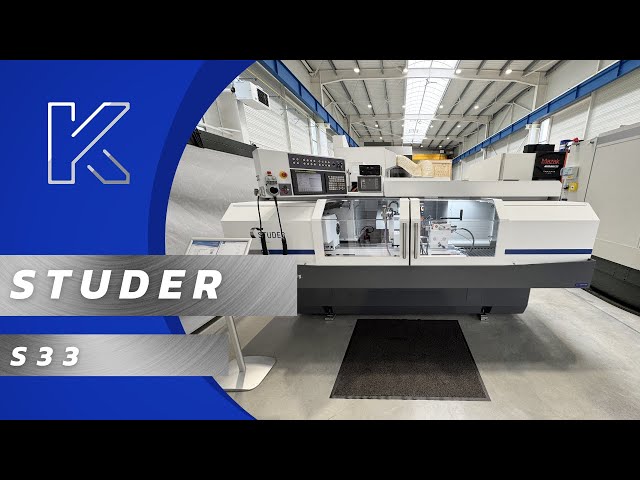

MODEL | S33 | |||
YEAR | 2006 | |||
PRICE | ||||

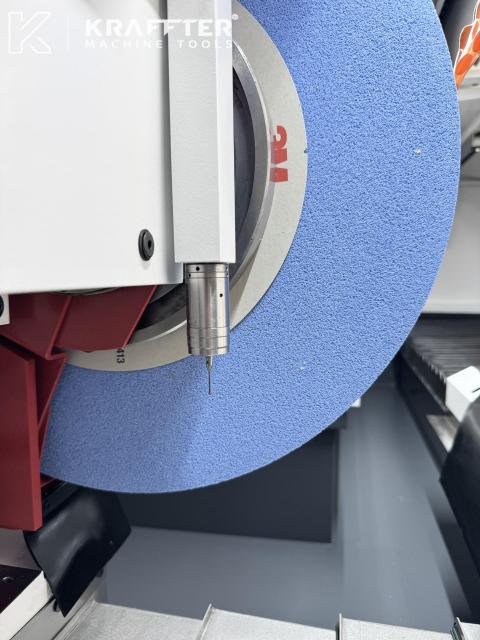

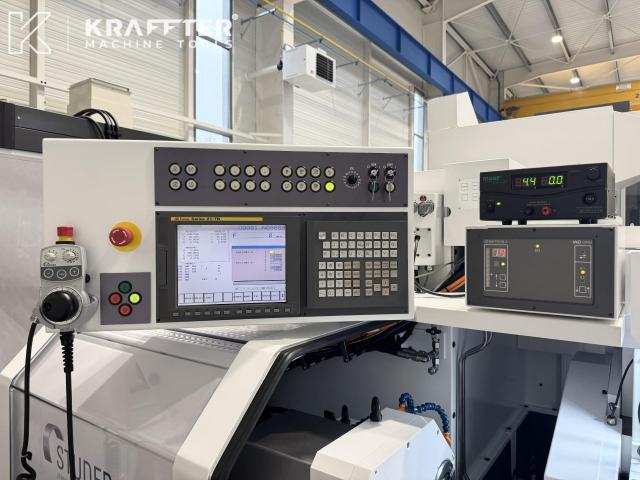

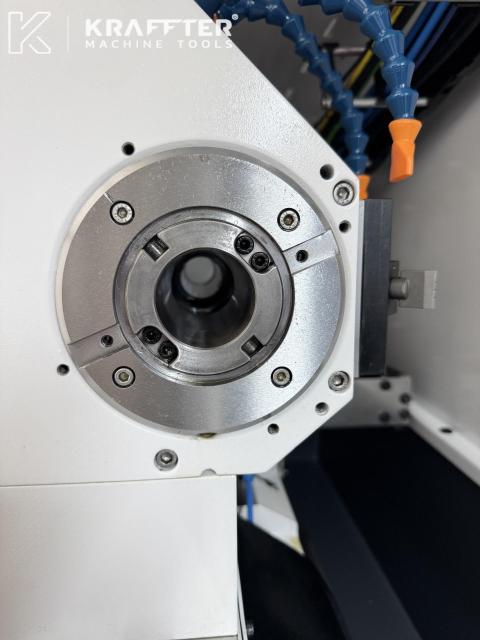

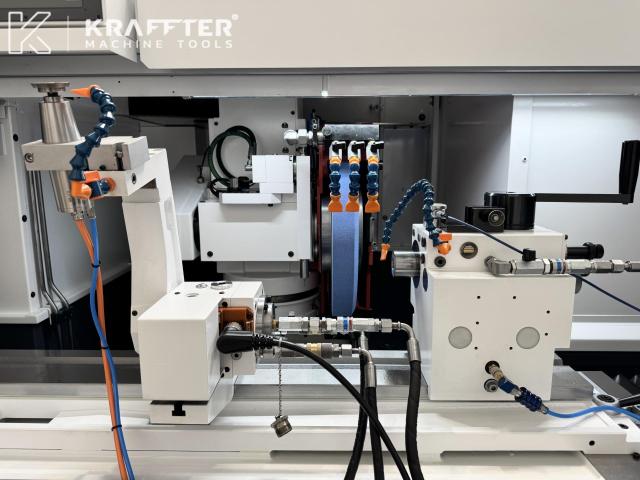

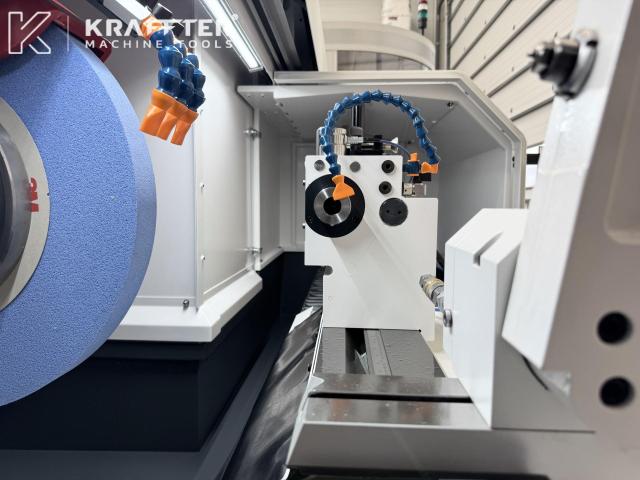

SPECIFICATION | CNC Cylindrical grinder STUDER S33 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control: FANUC 21i-TB Software installed: StuderGrind Centre distance: 1000 [mm] Height of centers: 175 Stroke X axis: 285 [mm] Min. Stroke speed X axis: 0.001 [mm/min] Max. Stroke speed X axis: 5000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Z axis: 1150 [mm] Min. Stroke speed Z axis: 0.001 [mm/min] Max. Stroke speed Z axis: 10000 [mm/min] Resolution Z axis: 0.0001 [mm] B axis swivelling stroke: -15 [°] / +195 [°] B axis indexing precision: Hirth 1 [°] Automatic B axis: Yes Workpiece spindle nose: MT5 Workpiece spindle min. speed: 1 [rpm] Workpiece spindle max. speed: 1500 [rpm] Max. part weight in part holder headstock between centres: 120 [Kg] Type of attachment tailstock: MT3 Tailstock quill stroke: 35 [mm] Tailstock quill diameter: 50 [mm] Tailstock fine adjustment: +/- 40 [mm] Supply voltage: 400 [V] Total power required: 20 [kVA] Weight: 5700 [Kg] INCLUDED EQUIPMENT : x1 internal grinding spindle type 102540B – speed: 40,000 [rpm] x1 swiveling dressing attachment x1 rotating dressing device DR.KAISER type C42 DC 058 – speed: 25,000 [rpm] – 0.17 [kW] x1 frequency converter MAAS type SPS-9250 x1 pneumatic tailstock lift x1 pneumatic upper-table lift x1 longitudinal slide with rotary table - swiveling up to 8.5 [°] x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°] x1 C-axis for thread and form grinding x1 workpiece probe MOVOMATIC C25 x1 contact control device DITTEL SENSITRON 2 x1 semi-automatic wheel balancing device MPM type 3.BMT100M x1 paper filtration unit STREULI AG x1 mist extraction unit AFS Air Filter Systeme x1 electrical cabinet air conditioner x3 external grinding wheel flanges x2 lifting blocks x1 axis bracket (for transportation of the machine) x1 set of operating manuals (French, English, and German) Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to the brands Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see surface grinder, lathe, machining center, milling machine. | |||
CONDITION | Fully functional | |||
WEIGHT | 5700 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/256/studer-s33/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
