MORI SEIKI

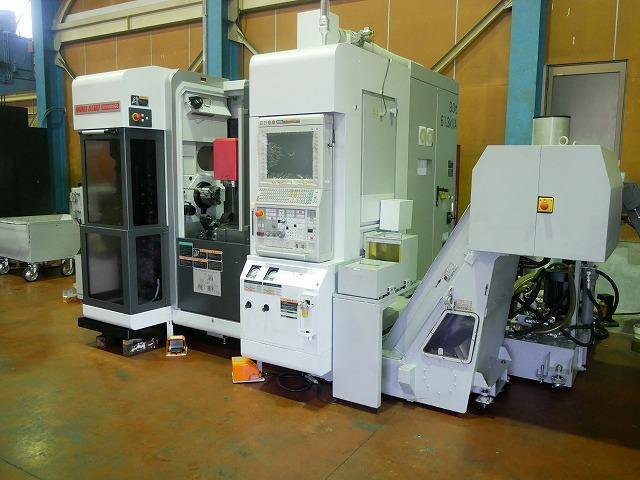

NTX1000/SZ

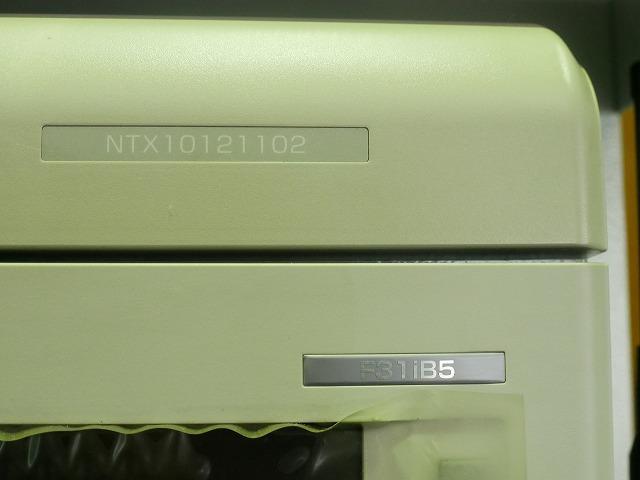

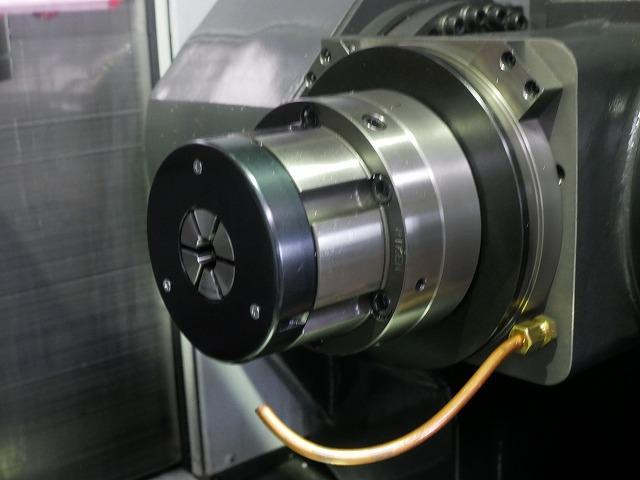

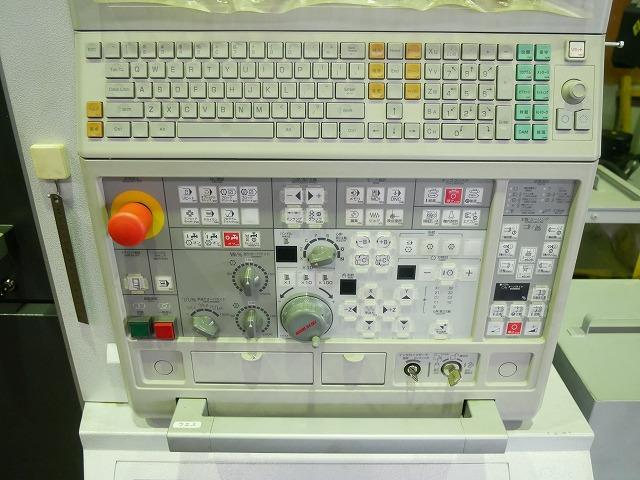

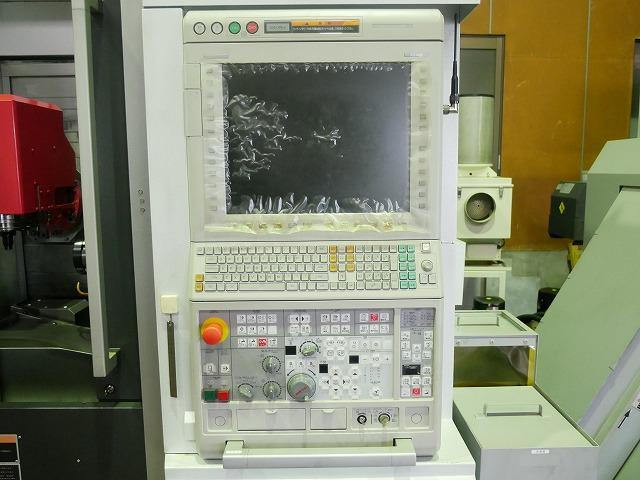

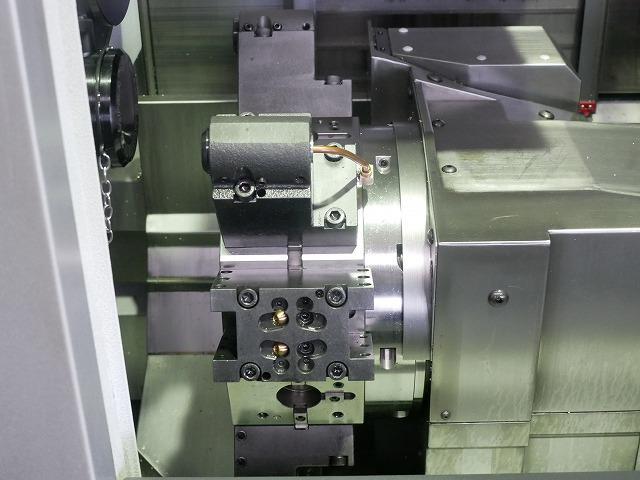

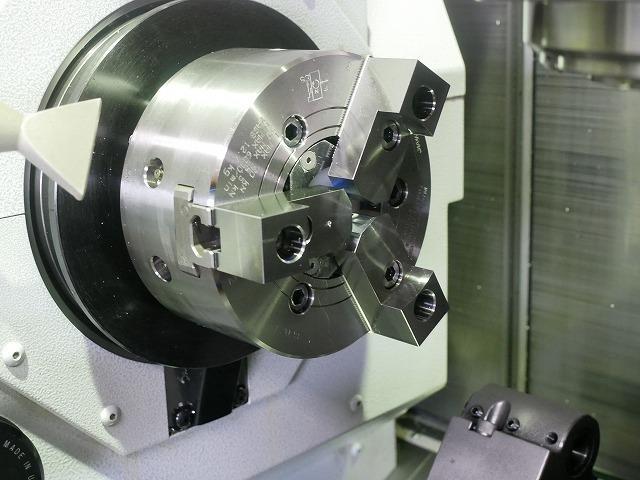

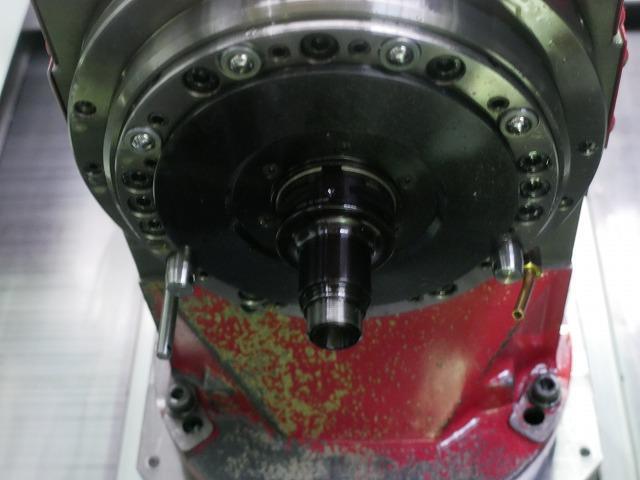

◆Controller: F31iB5 ◆Maximum workpiece swing: 370 mm (14.57 in) ◆Swing on cross slide: 370 mm (Turret 2: 300 in) ◆Maximum distance between tailstock and spindle head: 888 mm (35.0 in) ◆Maximum turning diameter of BW axis: 890 mm (35.04 in) ◆Maximum machining diameter: 370 mm (Tool spindle, Turret 2) 270 in) ◆Maximum machining length: 424 mm (16.69 in) ◆Bar work capacity: 52 mm (2.05 in) ◆X1 axis (tool spindle): 380 mm (14.96 in) ◆Y axis (tool spindle): ±105 mm (±4.13 in) ◆Z1 axis (tool spindle): 460 + 155 mm (ATC travel) ◆B axis (tool spindle): ±120° ◆X2 axis (turret 2): 155 mm (6.10 in) ◆Z2 axis (turret 2): 610 mm (24.01 in) ◆BW axis: 4-position indexing ◆Spindle 1: Kitagawa BB206 6-inch ◆Spindle 1 speed: 6000 min-1 ◆Spindle 1 tip: JIS A2-5 ◆Spindle Through-hole Diameter: 61 mm (2.40 in) ◆Minimum Spindle Index Angle: 0.0001° ◆Spindle Bearing Inner Diameter: 100 mm (3.94 in) ◆Spindle Torque (40% ED/30 min/continuous): 223 N·m ◆Spindle Chuck: BB206A521 (Kitagawa Iron Works 206A 6-inch Hollow Chuck) ◆Spindle Cylinder: SS1453K21 (Kitagawa Iron Works Hollow Rotary Cylinder) ◆Spindle 2: Riken Seiki Collet Chuck ◆Spindle Speed: 6000 min-1 ◆Spindle Through-Hole Diameter: 38 mm (1.50 in) ◆Minimum Spindle Index Angle: 0.0001° ◆Spindle Bearing Inner Diameter: 70 mm (2.76 in) ◆Spindle Torque (25% ED/Continuous): 37/22 N·m ◆Spindle Chuck: SAD40MSP (Riken Seiki Collet Chuck) ◆Spindle Cylinder: SS1453K21 (Kitagawa Iron Works) Water-Injected Rotating Cylinder) ◆ Number of Tools Mounted: 1 ◆ Minimum B-Axis Index Angle: 0.0001° ◆ Tool Spindle Speed: 12,000 min-1 ◆ Tool Spindle Taper Bore: C5 [HSK-A50 (T50)] ◆ Tool Spindle Bearing Inner Diameter: 65 mm (2.56 in) ◆ Tool Magazine Capacity: 38 ◆ Maximum Tool Diameter (with adjacent tools): 70 mm (2.76 in) ◆ Maximum Tool Diameter (without adjacent tools): 130 mm (5.12 in) ◆ Maximum Tool Length: 250 mm (Tool Diameter Less than 70 mm) 210 mm (Tool Diameter 70 mm or More) ◆ Number of Tools Mounted on Turret 2: 10 ◆ Coolant Tank Capacity: 300 L (79.2 gal) ✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
