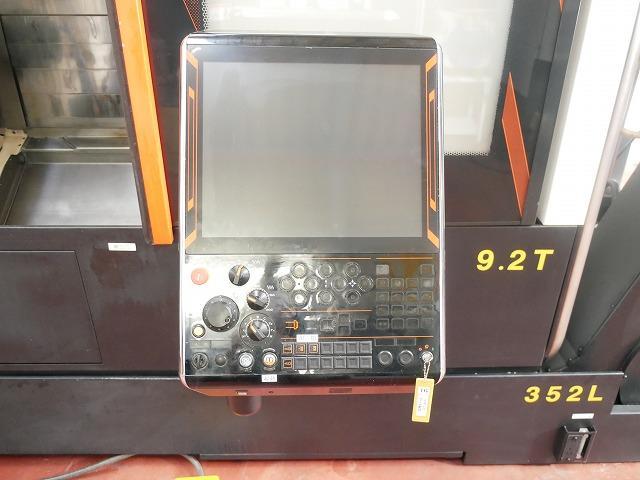

SPECIFICATION | ◆Control device: MAZATROL SmoothX
◆Maximum swing: Φ530mm
◆Maximum machining length: 519mm
◆Maximum machining diameter: Φ500mm
◆Spindle speed: 6000rpm
◆Tool shank type: HSK ATC36
◆Rotary tool: 12000rpm
◆Spindle 0.0001° indexing, C-axis control
◆B-axis 0.0001°/contouring cutting possible (EIA required)
◆Thread cutting function
◆USB I/F (1 port)
◆LAN port
◆SD I/F (1 port), USB I/F (1 port)
◆Relocation detection device
[Special accessories]
◆Tool eye (automatic)
◆Automatic front door opening/closing

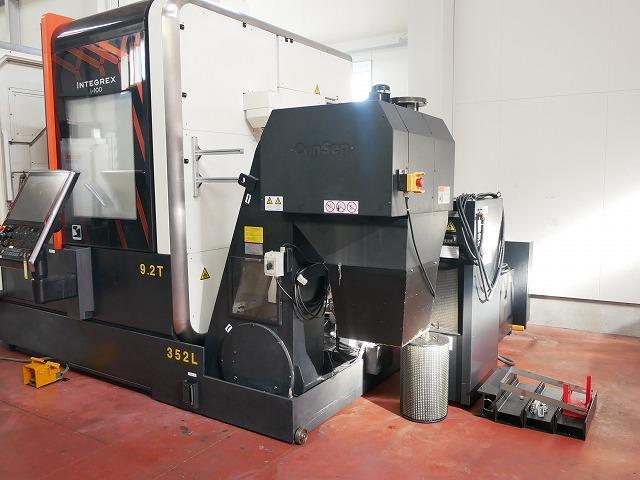

◆Chip conveyor (side discharge, CONSEP)
[Special Edition]
◆ System 3R Micro Chuck Installation Ready
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
