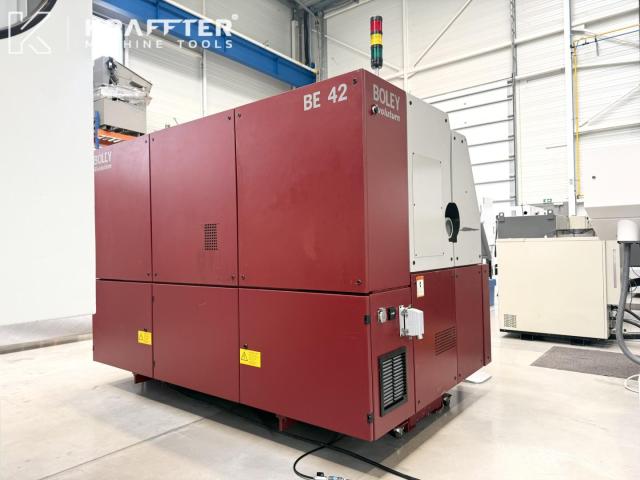

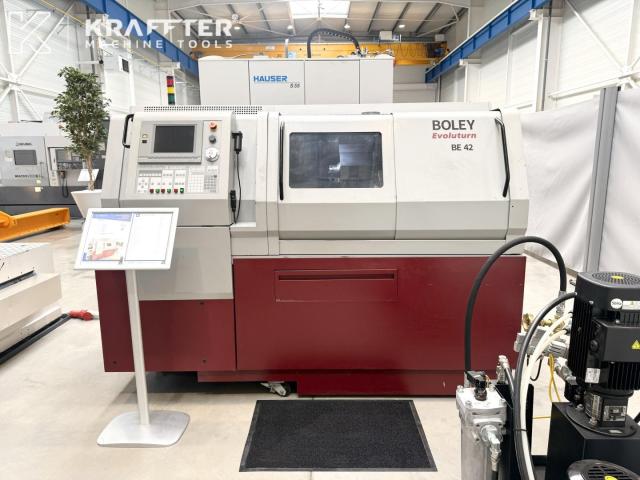

CNC Lathe
Access: 289
STOCK CODE | 90062 | |||
|---|---|---|---|---|
MACHINE ID | 17512 | |||
MANUFACTURER | BOLEY & LEINEN | |||
MODEL | BE42 | |||
YEAR | 2002 | |||
PRICE | ||||

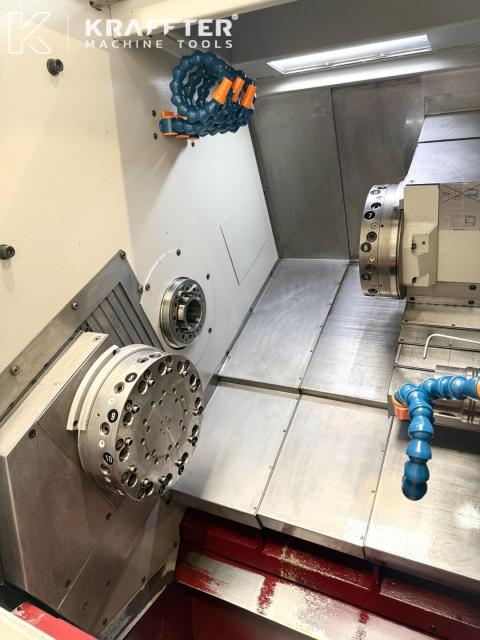

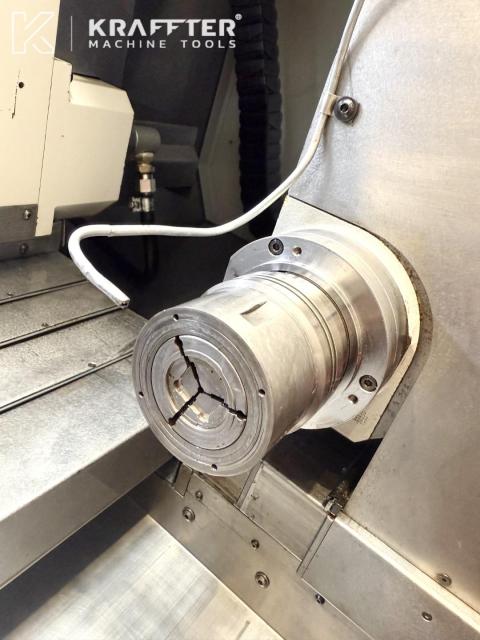

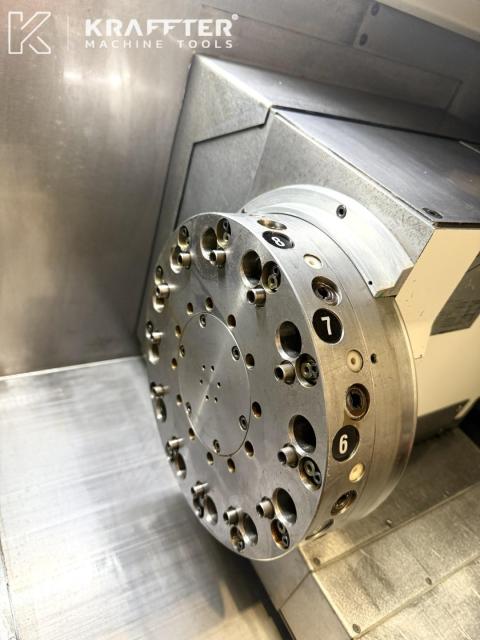

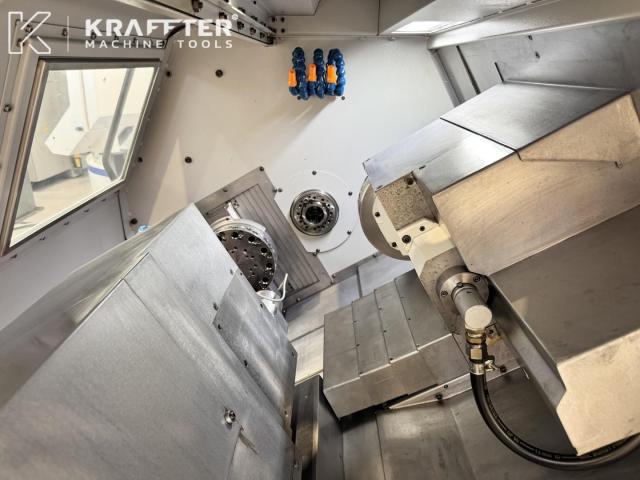

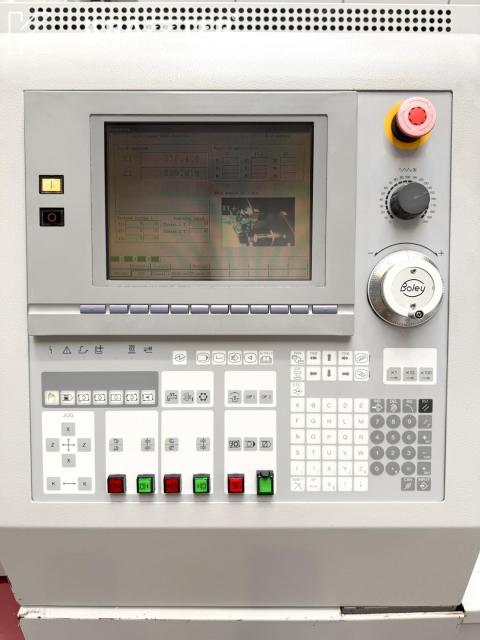

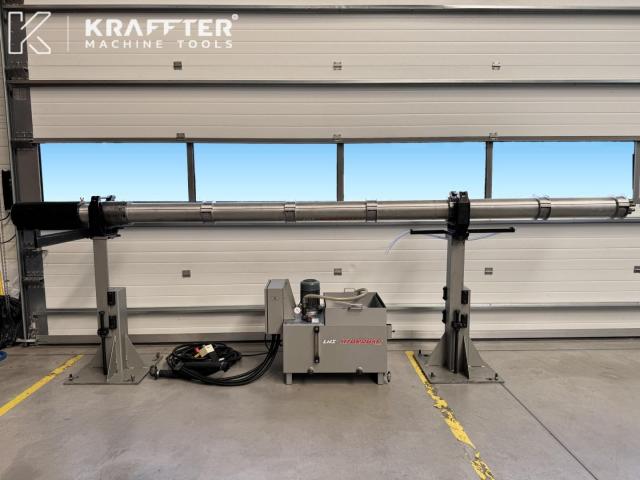

SPECIFICATION | CNC Lathe BOLEY BE-42 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2002 CNC control: MITSUBISHI Meldas 635LCC Max. turning diameter: 140 [mm] Stroke Z1 axis: 200 [mm] Stroke X1 axis: 170 [mm] Stroke Z2 axis: 395 [mm] Stroke X2 axis: 110 [mm] Stroke Z3 axis: 170 [mm] Stroke X3 axis: 110 [mm] Spindle nose: 48 DIN 6343 Spindle throughbore: 42 [mm] Min. spindle speed: 80 [rpm] Max. spindle speed: 8000 [rpm] Increment C-axis: 0.001 [°] Spindle power: 7.5 [kW] Counter spindle throughbore: 42 [mm] Min. counter spindle spindle speed: 60 [rpm] Max. counter spindle speed: 6000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 2.2 [kW] Type of tool holders: VDI 20 Number of tool stations - Turret 1: 12 Number of tool stations driven - Turret 1: 12 Max. speed driven tools - Turret 1: 4500 [rpm] Number of tool stations - Turret 2: 12 Number of tool stations driven - Turret 2: 12 Max. speed driven tools - Turret 2: 4500 [rpm] Lubrication tank capacity: 210 [l] Total power required: 14 [kVA] Rated current: 20 [A] Supply voltage: 400 [V] RS232 Interface: Yes Dimensions: 2350 x 1590 x 1730 [mm] Weight: 3300 [Kg] INCLUDED EQUIPMENT: x1 LNS HYDROBAR bar feeder x1 coolant tank x6 radial live tool holders VDI 20 x5 axial live tool holders VDI 20 x21 static tool holders VDI 20 x1 parts catcher basket VDI 20 x17 VDI 20 blanking plugs x28 collets x4 collet chucks x1 3-color status light x1 "Electrical diagrams" manual x1 "Operation & Maintenance" manual x1 Operator’s manual Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Biglia, Index, Tsugami, Miyano, Star, and DMG Mori Tornos lathes, but also milling machines, grinding machines, and CNC. | |||
CONDITION | Fully functional | |||
SIZE | 2350 x 1590 x 1730 [mm] | |||
WEIGHT | 3300 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/253/boley-be42/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
