HAEUSLER AG

VRM-HY 4000 x 35/30

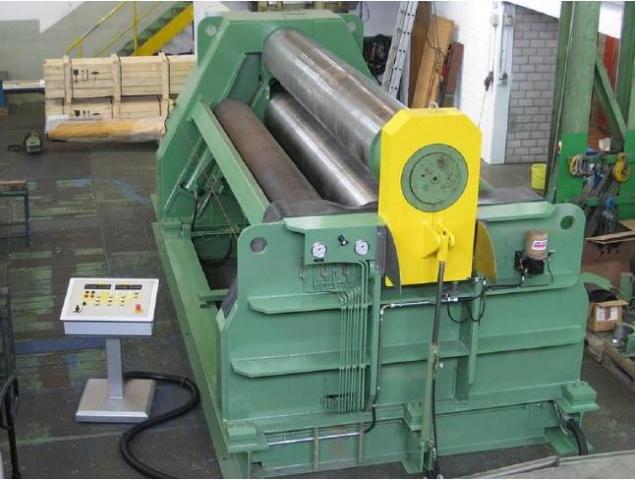

HYDRAULIC 4-ROLL PLATE BENDING MACHINE Year: 2011 (Retrofitted in Year 2022) Model: VRM-HY 4000 x 35/30 Max. width of plate: 4,000mm Thickness of plate at max. yield point of 240N/mm2 For edge setting at max. width of plate: 30mm at bending-Ø1,250mm at rounding: 35mm at bending- Ø1,250mm Prebending length at s= 30mm X=3xs Roll diameter-top and bottom roll: 570/540mm Roll diameter-side rolls: 450mm Smallest bending diameter: 650mm Number of rolls: 4 Roll material: 61 MnCrMo 43Driven rolls: 2 Top-and bottom roll Drive: over 2 hydro motors direct flanged Working speed: 4 m/min Adjustment speed bottom roll: 0-200 mm/min Adjustment speed side rolls: 0-700 mm/min Speed compensation between top-and bottom roll: automatic Power: 60kW Operation of the tilting bearing: hydraulic Tilting of the top roll: hydraulic Bearing block: hydraulic Working voltage: 380V/50Hz/3Ph Indicator device of roll position: digital Weight of machine: approx.: 52tons
