5-Axis Machining Center(HSK-E40)
Access: 198
STOCK CODE | 90131 | |||
|---|---|---|---|---|
MACHINE ID | 17456 | |||
MANUFACTURER | WILLEMIN MACODEL | |||
MODEL | W 408 MT | |||
YEAR | 2007 | |||
PRICE | ||||

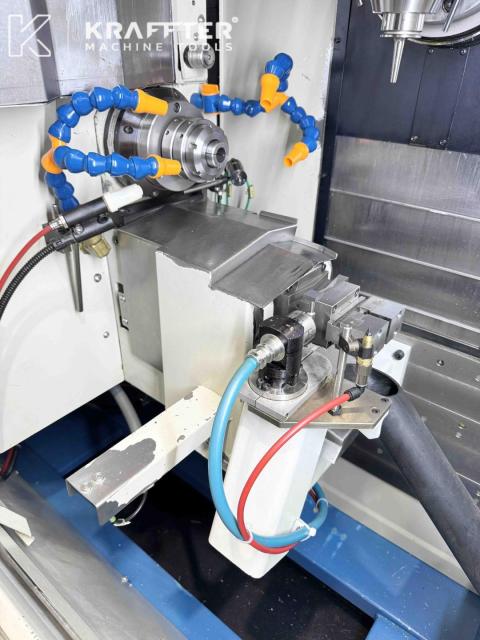

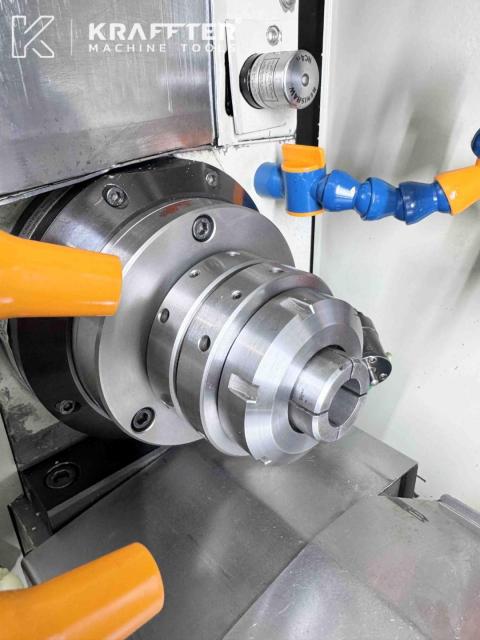

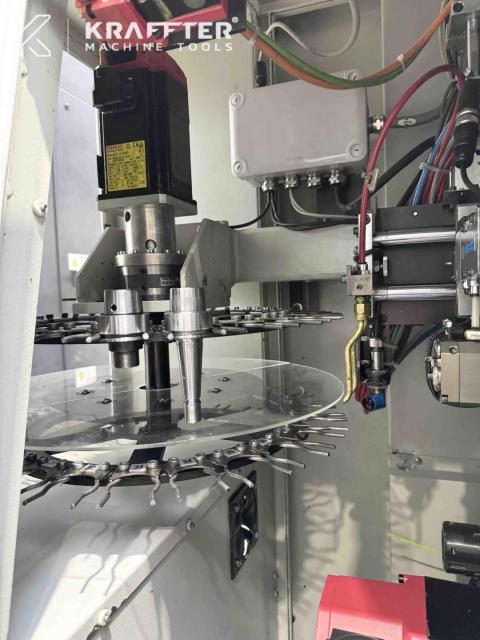

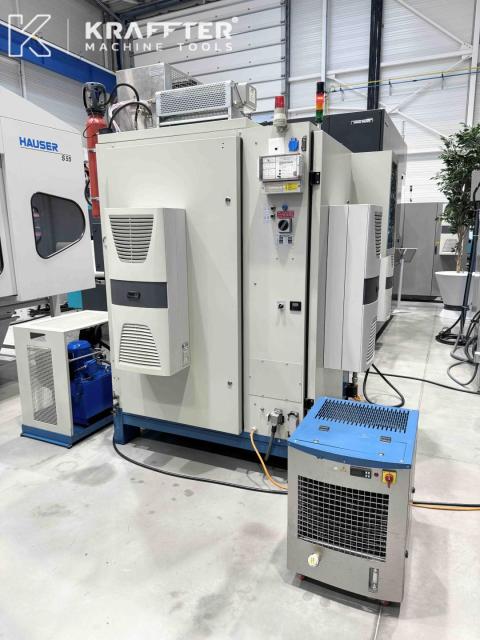

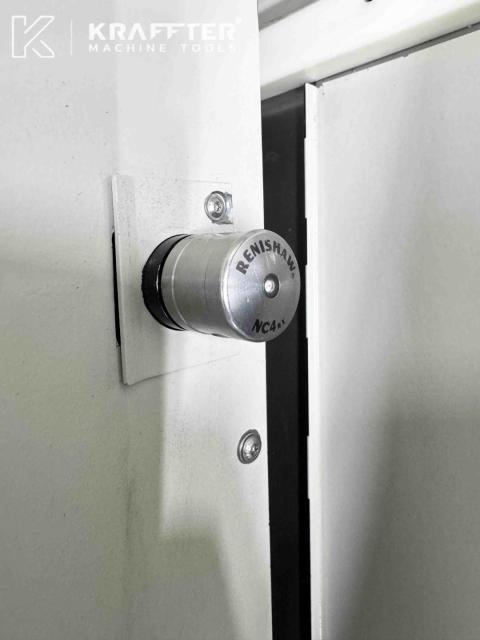

SPECIFICATION | WILLEMIN MACODEL W408 MT TECHNICAL CHARACTERISTICS : Year : 2007 CNC control : FANUC 16i-MB Number of axes : 5 Stroke X axis : 250 [mm] Stroke Y axis : 200 [mm] Stroke Z axis : 300 [mm] Traversing feeds X, Y and Z axes : 30000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 6000 [rpm] Main spindle max. power : 3.7 [kW] Angular C axis stroke : 360 [°] B axis swivelling stroke : 115 [°] Spindle type : HSK-E40 Min. spindle speed : 500 [rpm] Max. spindle speed : 30000 [rpm] Spindle power : 10 [kW] Tool changer magazin number of stations : 48 Max. tool lenght : 95 [mm] Max. tool diameter : 63 [mm] Lubrication tank capacity : 80 [l] Collant pump flow rate : 40 [l/min] Rated current : 25 [A] Supply voltage : 400 [V] Weight : 1700 [Kg] EQUIPMENT INCLUDED : x1 0-90° pivoting backworking unit (6th side machining) x1 backworking vice x1 RENISHAW TS27R tool probe x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection x68 type F35 turning collets x9 HSK-40E milling/turning attachments x1 IEMCA BOSS 332 E bar feeder x1 spindle chiller x1 cutting fluid chiller x1 ELBARON mist extractor x1 3-colour status lamp x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body) x1 set of technical manuals Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. HERMLE , DMU , monoblock , variaxis , chiron | |||
CONDITION | Fully functional | |||
WEIGHT | 1700 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/227/willemin-macodel-w-408mt/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
