ID/OD Cylindrical Grinder
Access: 234
STOCK CODE | 90156 | |||
|---|---|---|---|---|
MACHINE ID | 17453 | |||
MANUFACTURER | FRITZ STUDER AG | |||
MODEL | S20 Favorit | |||
YEAR | 1997 | |||
PRICE | ||||

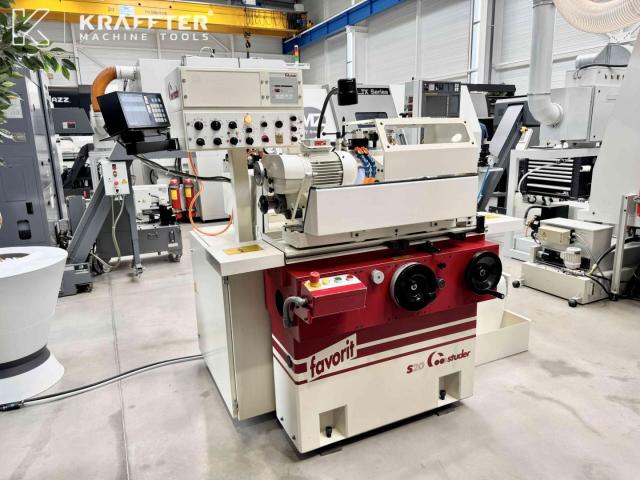

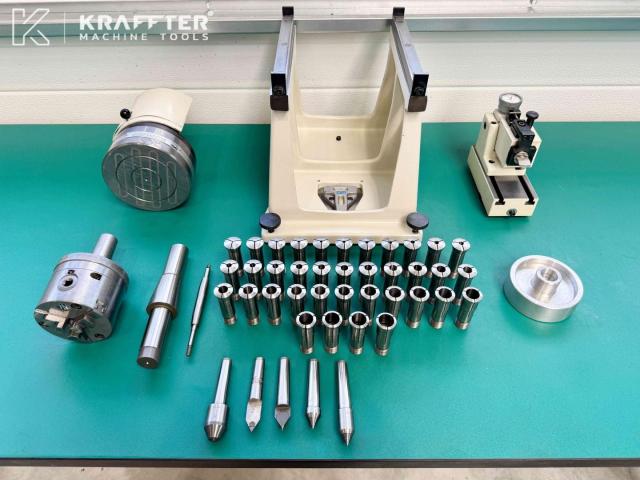

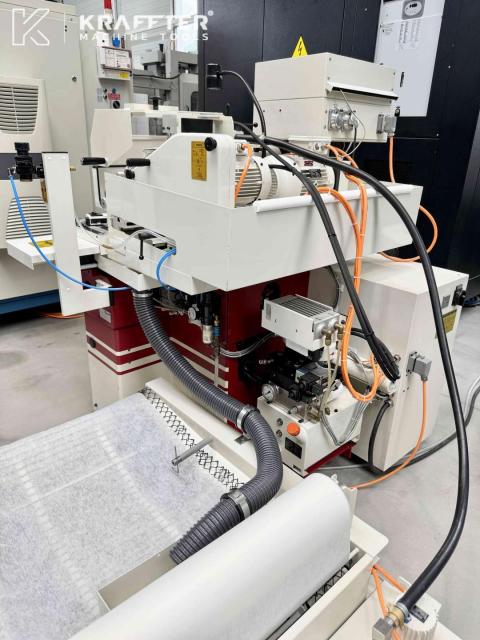

SPECIFICATION | Cylindrical grinder STUDER S 20 Favorit TECHNICAL CHARACTERISTICS: Year of manufacturing: 1997 Centre distance: 400 [mm] Height of centers: 100 [mm] Stroke Z axis: 420 [mm] Working feed Z axis: 100 - 3500 [mm/min] Orientation of table: 0 - 30 [°] Grinding spindle motor power: 3 [kW] Max. diameter grinding wheel: 350 [mm] Max. grinding wheel width: 30 [mm] Grinding wheel bore: 127 [mm] Workpiece spindle nose: W20 Workpiece spindle min. speed: 30 [rpm] Workpiece spindle max. speed: 1200 [rpm] Max. part weight in part holder headstock between centres: 20 [Kg] Workpiece swiveling range: 0 [°] / +90 [°] Workpiece spindle power: 0.5 [kW] Type of attachment tailstock: MT2 Tailstock quill stroke: 20 [mm] Supply voltage: 400 [V] Total power required: 8 [kVA] Machine dimensions: 2350 x 1480 [mm] Weight: 1600 [Kg] INCLUDED EQUIPMENT: x1 paper tape filtration device x1 SONY LH 31A 2 axis digital read out x1 WALDMANN LED lamp x1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm] x1 SENSITRON contact indicator x1 grinding wheel balancing device x1 grinding wheel balancing arbor x1 three-jaw chuck FN Ø100 [mm] MT3 x1 magnetic chuck Ø160 [mm] MT3 x1 table-mounted wheel dresser x37 W20 collets x2 half-centres x2 full centres x1 blunt centre x1 pulley Ø105 [mm] for internal grinding spindle x2 external grinding wheel flanges x1 TYROLIT 494271 grinding wheel for external grinding operations Various internal grinding wheels x4 driving carriers Various miscellaneous Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD). Also see surface grinder, lathe, machining center, milling machine. | |||
CONDITION | Fully functional | |||
SIZE | 2350 x 1480 [mm] | |||
WEIGHT | 1600 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/248/studer-s20-favorit/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
