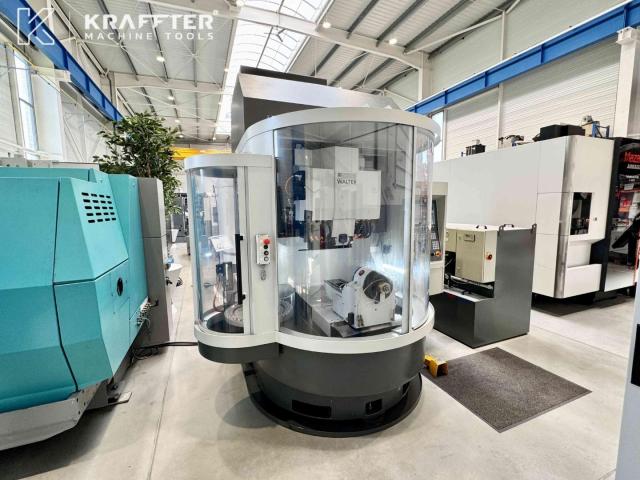

CNC Tool Grinding Machine
Access: 226
STOCK CODE | 90148 | |||
|---|---|---|---|---|
MACHINE ID | 17450 | |||
MANUFACTURER | WALTER TOOLS | |||
MODEL | Helitronic Power Production | |||
YEAR | 2003 | |||
PRICE | ||||

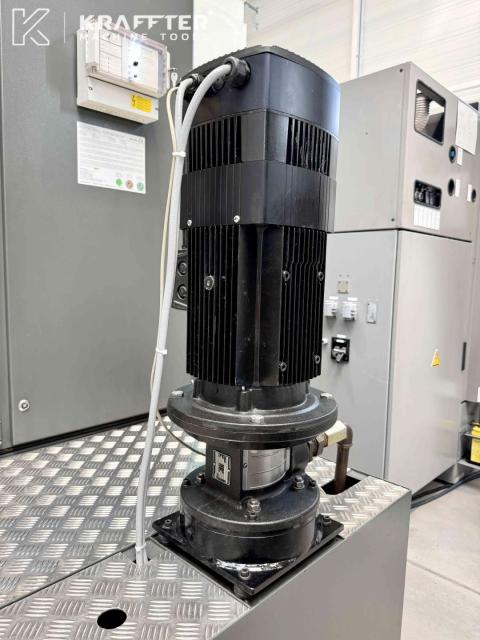

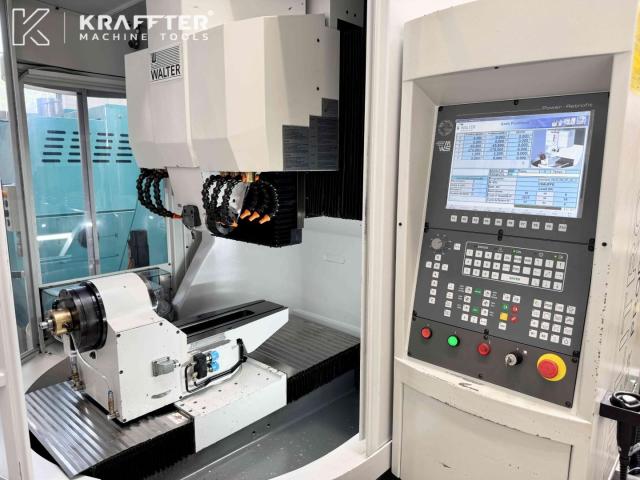

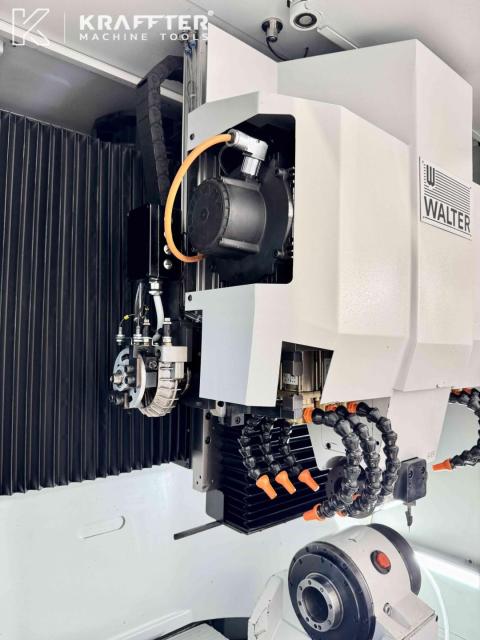

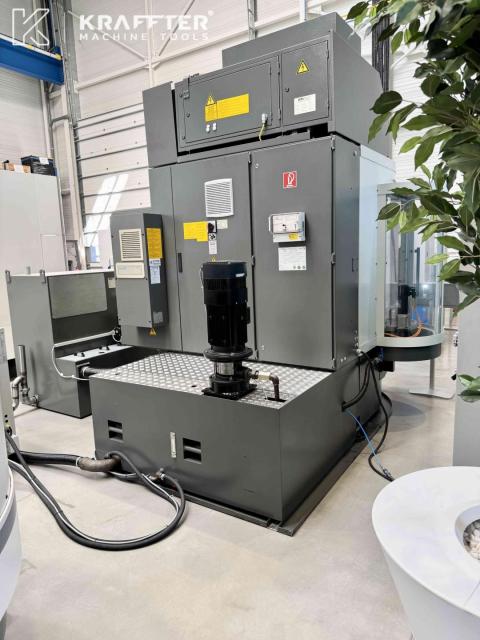

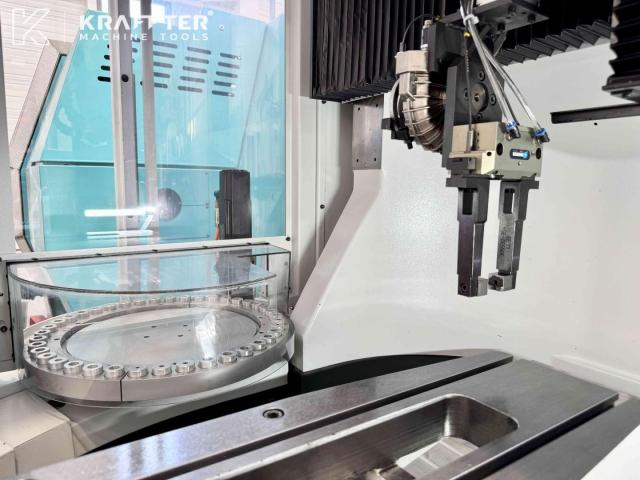

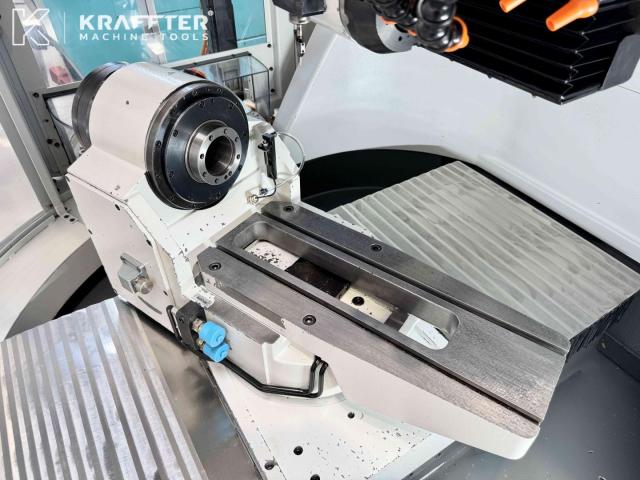

SPECIFICATION | CNC tool grinding machine - WALTER Helitronic Power Production TECHNICAL CHARACTERISTICS: CNC control: HMC 500 Software installed: Tool Studio 2.1 R4 Number of axes: 5 Height of centers: 190 [mm] Stroke X: axis 490 [mm] Resolution X axis: 0.00001 [mm] Stroke Y axis: 320 [mm] Resolution Y axis : 0.00001 [mm] Stroke Z axis: 660 [mm] Resolution Z axis: 0.00001 [mm] Traversing feeds X, Y and Z axes: 15000 [mm/min] A axis: 360 [°] C axis: +/- 200 [°] Resolution C axis: 0.0001 [°] Max. workpiece lenght: end face grinding: 320 [mm] Max. grinding length: 350 [mm] Max. grinding diameter: 320 [mm] Grinding spindle attachment: NCT Grinding spindle diameter: 80 [mm] Grinding wheel max. speed: 7000 [rpm] Grinding spindle motor power: 24 [kW] Max. diameter grinding wheel: 200 [mm] Internal workpiece spindle nose: ISO 50 Workpiece spindle max. speed: 60 [rpm] Total power required: 35 [kVA] Weight: 4650 [Kg] EQUIPMENT INCLUDED: x1 TRANSOR 12290-800A filtration unit x1 MTA oil chiller model TAE 015 x1 DSL oil mist extractor model AES-GAMMA 30 x1 RENISHAW part probe x1 disc-type tool loader 40 positions x1 SCHUNK gripper x2 grinding wheel arbor adapters x1 fire protection system - to be inspected by the buyer through a certified organization x1 electrical schematic manual x1 Service Instructions manual LICENSED WALTER WINDOW MODE (WWM) PACKAGES: - Package 001 (cylindrical mills) - Package 002 (tapered mills) - Package 003 (drills) - Package 004 (step drills) - Package 006 (woodwork tools) - Package 013 (reamers) - Package 015 (insert seats) - Package 016 (warmup program) - Package 027 (flexible program) - Package 090 (loader package) - Package 091 (acm) - Package 098 (loader package) - Package 099 (loader package) - Package 100 (reference data m.) - HELICONE (flute calc. conical.) - HELIDRILL (flute calc. drills) - HELIFLUTE (flute calc. cyl. mill.) - MCS (machine control .) - SCHEIBE (wheels menu) - TS_ADVANCED (toolstudio (v1.0-v.) - TS_STANDARD (toolstudio (v1.0-v.) - TS_STEPTOOLS (toolstudio (v1.0-v.) LICENSED TOOLSTUDIO OPTIONS: - Tool Studio 2.0 server/machinecontrol - Tool Studio 2.0 standard license - Tool Studio 2.0 advanced license - Tool Studio 1.9 upgrade options - Tool Studio 2.0 upgrade options - Option steptools - Option profile light (contour roughing ...) - Option calibration w/ touch probe - Option drills Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. | |||
CONDITION | Fully functional | |||
WEIGHT | 4650 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/245/walter-helitronic-power-production/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
