HAUSER

S40-400

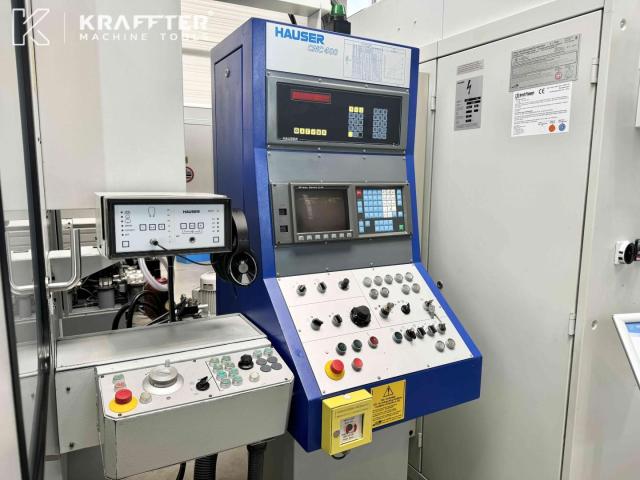

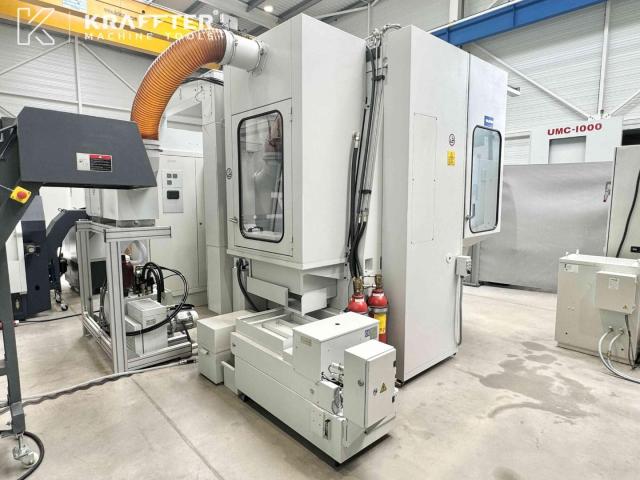

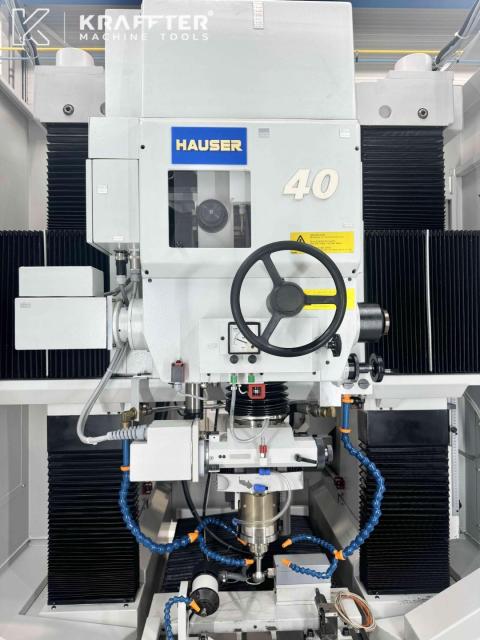

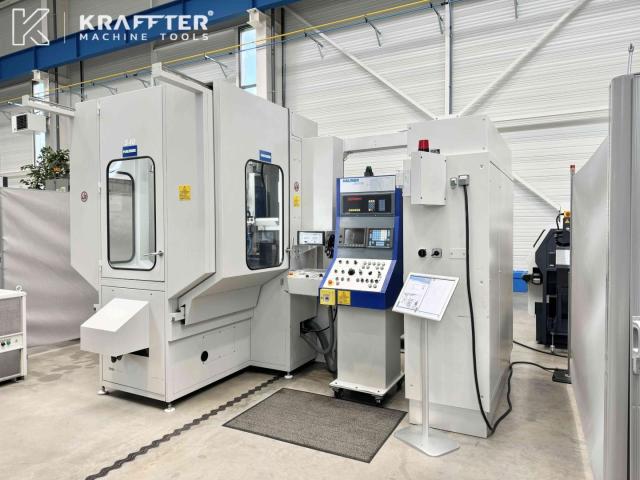

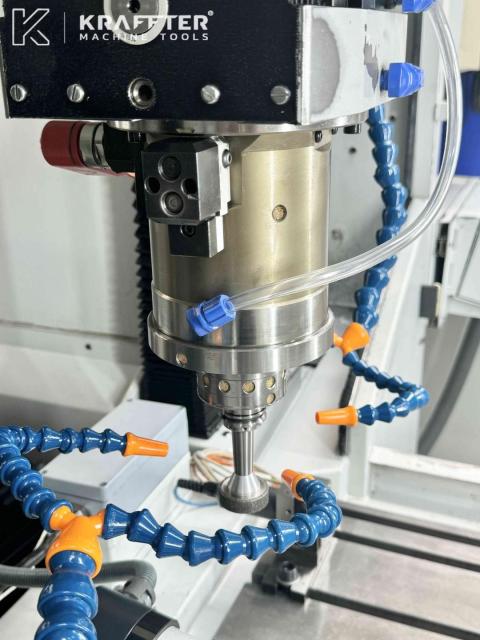

CNC JIG GRINDING MACHINE HAUSER S40-400 TECHNICAL CHARACTERISTICS : Stroke X axis: 650 [mm] Max. Stroke speed X axis: 4000 [mm/min] Working feed X axis: 0 - 1800 [mm/min] Stroke Y axis: 450 [mm] Working feed Y axis: 0 - 1800 [mm/min] Stroke Z axis: 130 [mm] Min. Stroke speed Z axis: 0.5 [mm/min] Max. Stroke speed Z axis: 12000 [mm/min] Stroke frequency Z axis: max. 4 [Hz] Stroke W axis: 500 [mm] Planetary speed C axis: 5 - 250 [rpm] Max. Stroke speed W axis: 800 [mm/min] Stroke U axis (radial feed): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clearance between grinding motor and table: 585 [mm] Max. load on table: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] ADDITIONAL INFORMATION : Ppjbnewu Rako Ua H Rwsw x1 HI-CUT pack including: -work area protection -exhaust system with electrostatic air filter -fire protection system (to be assessed by a qualified body) -HTG-RWS-60 automatic belt filter cooling unit x1 MSS (Multi-Sensoric System) tool detection device x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin) x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225 x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497 x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450 x1 intermediate plate for aligning motors and urbines - reference: 192940 x1 centring watch holder for grinding motor rotor - reference: 191790 x15 wheel holder cleats x1 cable for grinding motor Various tools Full documentation Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments such as contouring applications in the aerospace, automotive and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops comprising Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines. In addition to its performance, the HAUSER S40-400 integrates perfectly into workshops equipped with lathes, machining centres or CNC milling machines, offering a complete solution for high-precision grinding and machining of complex parts.

4550 [Kg]

EXW
