SPECIFICATION | NIDEC TAKISAWA
Swing above bed: 600 mm
Swing above cross feed table: 380 mm
Maximum distance between centers: 1,500 mm

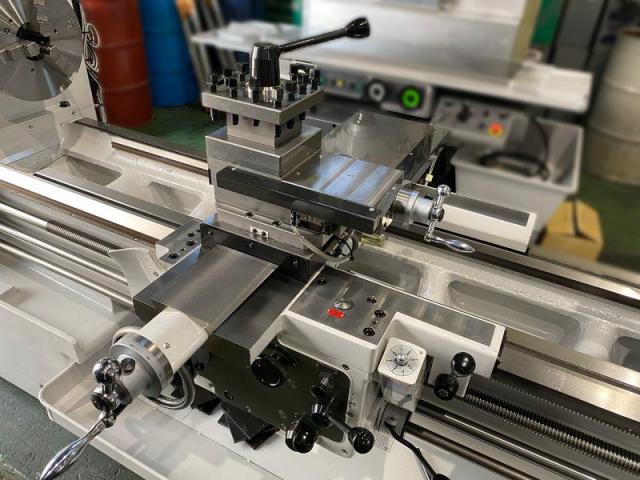

Maximum cross feed table travel: 310 mm
Maximum tool feed table travel: 150 mm
Spindle speed range: 25 to 1500 rpm
Spindle end type: A1-8
Spindle through hole diameter: φ76 mm
Inch screw type: 40 types
Tapered tailstock hole: No. 5
Tailstock travel: 150 mm
Required floor space: 1,075 x 3,195 mm Height: 1,340 mm Machine weight: 3,200 kg

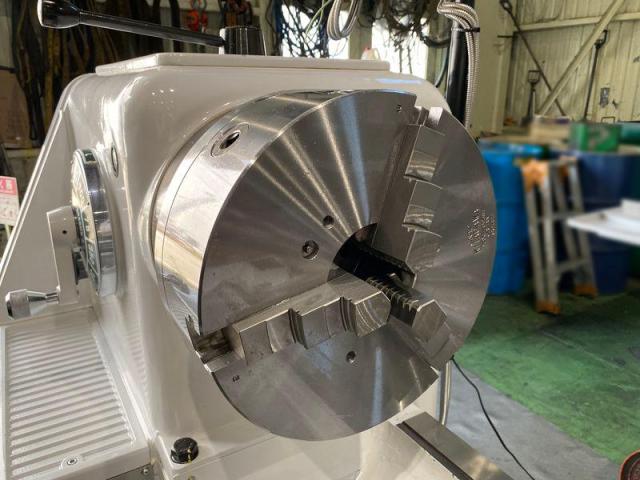

12-inch 3-jaw scroll chuck, Kitagawa JN12

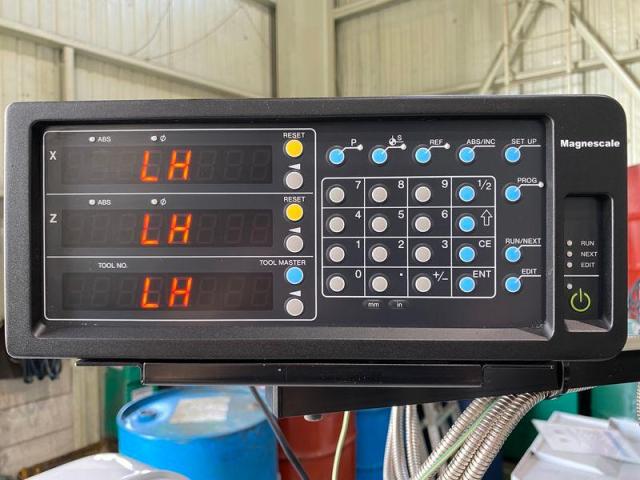

Digital counter, 2 axes (scale, 3 axes, X, Z, Z2)

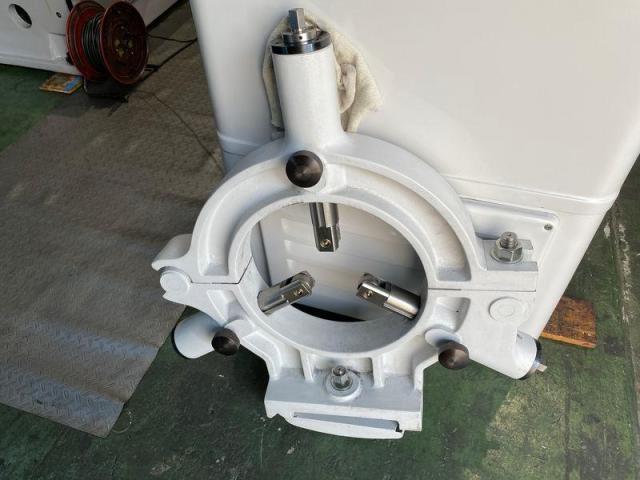

Fixed steady rest, 1 piece |
|---|
