STOCK CODE				CONTACT SELLER This product is sold by AK Technos Co.Ltd. By PHONE By EMAIL

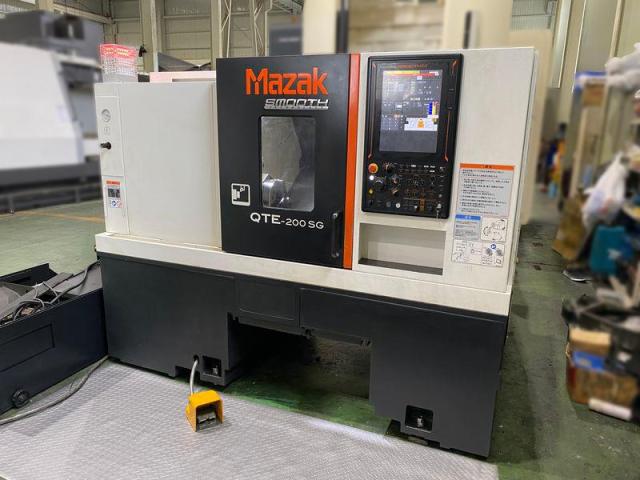

MACHINE ID	17356
MANUFACTURER	MAZAK
MODEL	QTE-200 SG/500U
YEAR	2021
PRICE

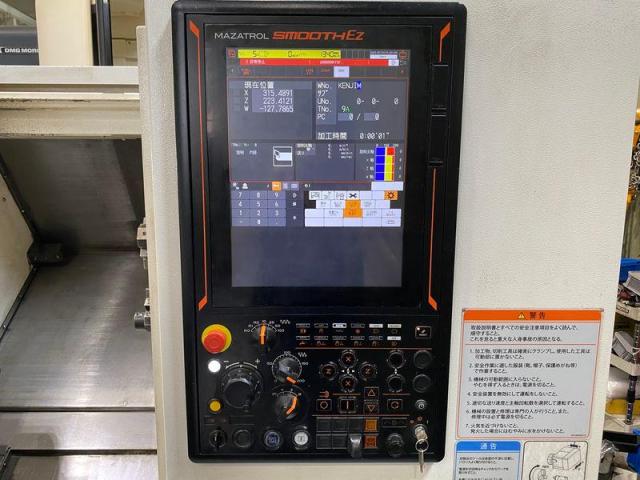

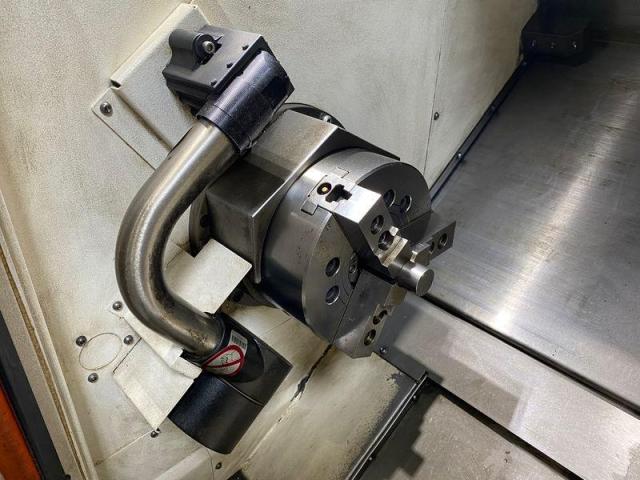

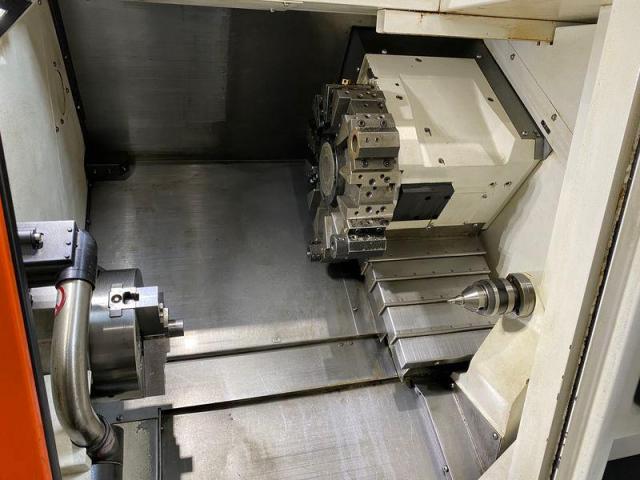

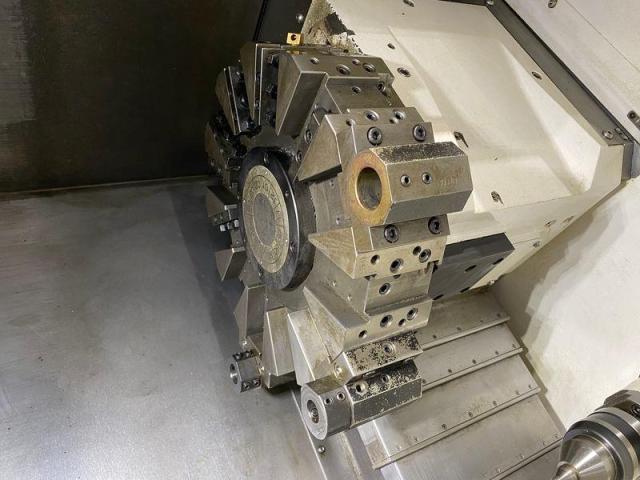

SPECIFICATION	Controller : MAZATROL SmoothEz Maximum swing: φ580 mm Max. work diameter: φ350 mm Standard work diameter: φ248 mm Max. work length: 520 mm Travel X : 195 mm Z : 560 mm Maximum spindle speed: 5,000 rpm Through-spindle hole diameter: φ61 mm Tool rest type: 12-sided drum Tailstock travel distance: 530 mm Tail rest taper hole: Dead center MT No.5 Required floor space: 2,200 x 2,390 mm 　　　　　 (including rear-discharge conveyor) Machine height: 1,700 mm Machine weight: 4,800 kg 　　　　　 12D tool rest specification (bolt-on) 　　　　 8-inch hollow chuck B-208A615 (Kitagawa) 　　　　 NC tail stock Tool Eye (automatic) Chip conveyor (rear-loading hinge type) 500U 　　　　 Thread cutting function Relocation detection device
LINK URL	https://www.ak-t.co.jp/en/inventory/index_989.html
LOCATION	Osaka
LOCATION DETAIL	Machine center
SELLER COMPANY	AK Technos Co.Ltd

ADDRESS	2-3-28 Honjonaka Higashiosaka-city, Osaka, Japan, 578-0957
CEO NAME		CONTACT PERSON	Shimizu
TEL1	81-6-6747-8845	TEL2
CELLPHONE		FAX	81-6-6747-8846
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	Machine tool, Press, Sheet metal machine, Structural steel machine, measuring device Note: Due to the extremely difficult export conditions to the areas located west of Myanmar include Middle East, under the trade control of the Japanese government, sales to these areas are STOPPED. Please note that we will NOT reply to any inquiries from those countries.
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	http://www.ak-t.co.jp	COMPANY TYPE	Used Machine Dealer,Machine & Equip. Trader
